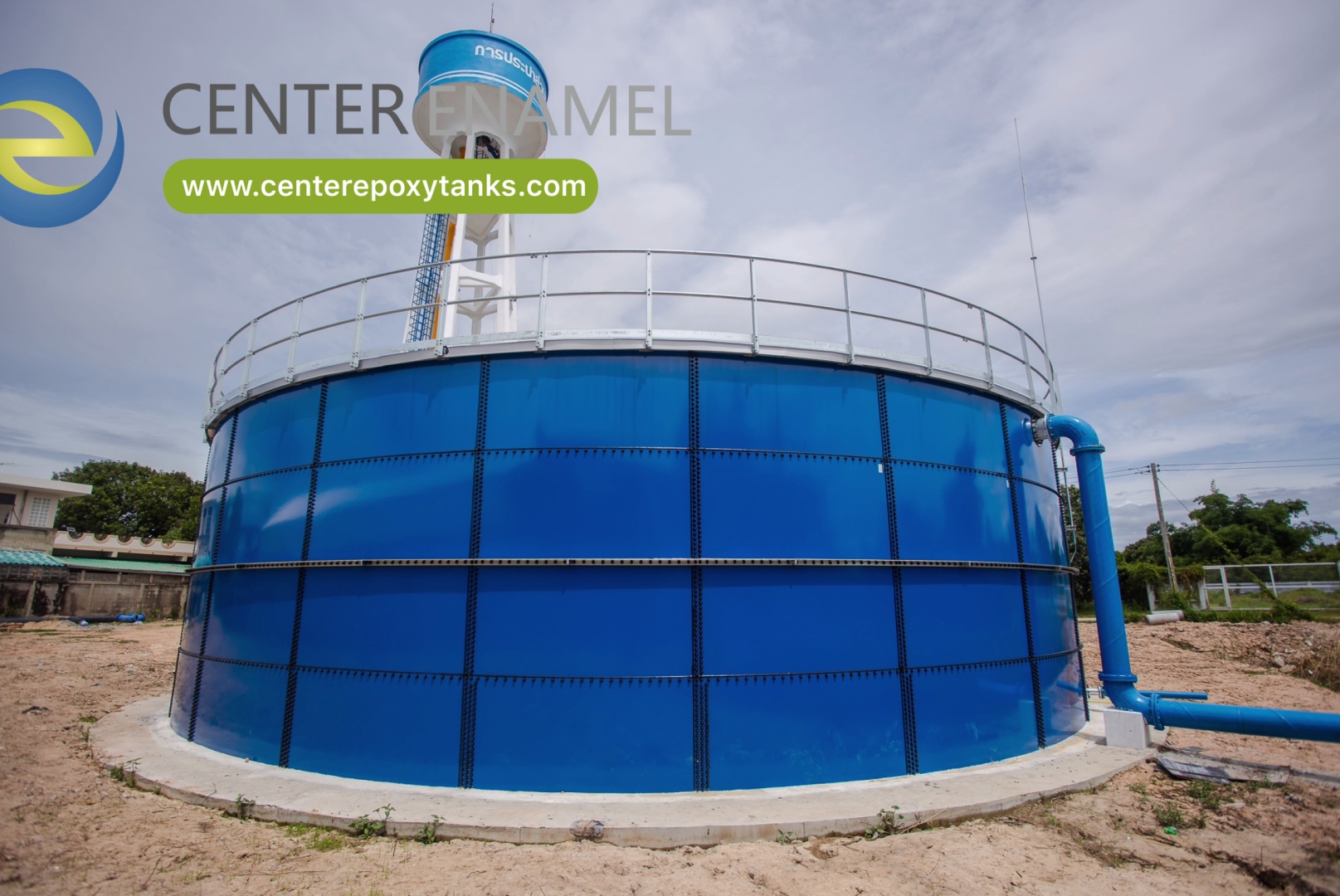

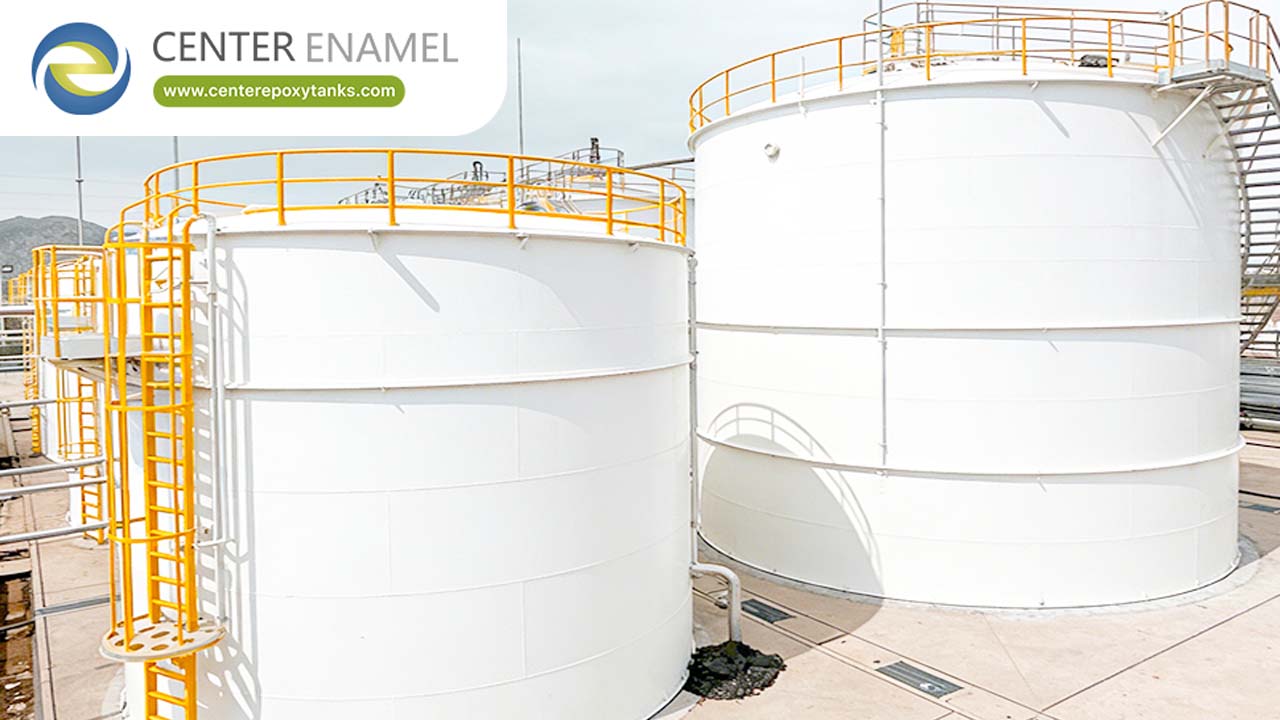

Fire Water Storage Tanks: NFPA 22 Compliant Bolted Steel Solutions
In fire suppression, the water storage tank is the "backbone" of your facility’s safety infrastructure. If municipal water is insufficient or unreliable, an onsite storage tank is non-negotiable. Shijiazhuang Zhengzhong Technology Co.,Ltd (Center Enamel) specializes in the design, fabrication, and installation of NFPA 22-compliant bolted steel fire water tanks. Our solutions replace the slow, high-maintenance construction of concrete or welded tanks with a modular, factory-finished system that ensures your fire protection system is ready the moment it is needed.
1. Compliance is Non-Negotiable: Designing to NFPA 22
NFPA 22 (Standard for Water Tanks for Private Fire Protection) is the global benchmark for fire water storage. An "adequate" tank is not enough; it must be an engineered system. Our tanks are built to meet these rigorous standards:
Anti-Vortex Integrity: We install NFPA 22-compliant anti-vortex plates over discharge outlets to prevent air from entering the pump suction line, ensuring a continuous, non-cavitating flow.
Venting & Safety: All our tanks include specialized roof vents located above the maximum fill line, equipped with corrosion-resistant screens to prevent contamination while allowing for necessary pressure equalization.
Thermal Management: For facilities in freezing climates, we integrate heating systems and insulation calculations to keep water temperatures above the 4.4°C (40°F) minimum required to prevent system failure.
Structural Load Capability: Our tanks are engineered to handle live (water), dead (fittings), wind, and seismic loads as dictated by local building codes and NFPA 22 structural requirements.
2. Why Bolted Steel Outperforms Concrete & Welded Tanks
The construction industry is shifting away from traditional poured-in-place concrete and field-welded steel. For fire protection, bolted steel offers a distinct performance advantage:
Controlled Manufacturing (Zero Field-Coating Risks): Unlike welded tanks that are painted on-site—where weather conditions can ruin the coating adhesion—our steel panels are manufactured and coated (Glass-Fused-to-Steel or FBE) in an environmentally controlled factory. This guarantees a uniform, durable finish that is ready for installation immediately.
Rapid Deployment: In emergency fire system upgrades or fast-track construction, speed is key. Bolted panels can be shipped flat-packed and assembled on-site in a fraction of the time required for concrete curing or field-welding.
Low Lifecycle Cost: Because our panels are high-strength and corrosion-resistant, they require significantly less maintenance than standard carbon steel. This reduces the long-term O&M budget for the facility.
Feature | Bolted Steel (GFS/FBE) | Field-Welded Steel | Poured Concrete |
Quality Control | High (Factory) | Variable (Field) | Variable (Field) |
Installation Speed | Rapid | Slow | Very Slow |
Weather Dependency | Low | High | High |
Maintenance | Low | High (Periodic Coating) | Moderate (Crack Repair) |
Scalability | Easy (Modular) | Difficult | None |
3. Frequently Asked Questions (FAQ)
A: We provide full engineering stress sheets, structural calculations, material certifications, and detailed layout drawings required by the Authority Having Jurisdiction (AHJ) for permit approval.
4. Your Partner in Fire Safety
At Shijiazhuang Zhengzhong Technology Co.,Ltd (Center Enamel), we understand that a fire water tank is an investment in human life and critical property. Our team provides not just the hardware, but the technical assurance that your fire protection system will perform when called upon. From initial hydraulic design support to site installation, we are committed to meeting the strictest global fire safety codes.
Would you like to review our case studies on recent industrial fire protection projects?
NFPA 22 Explained — Water Tanks for Fire Protection
This video provides a helpful overview of the specific design and maintenance requirements outlined in the NFPA 22 standard.
