Reliable Oil Tank Floating Roof Manufacturer: Engineering Vapor Mitigation & Safety
Oil tank floating roofs are specialized internal or external covers designed to float on the surface of stored petroleum products to eliminate the vapor space (ullage). By complying with API 650 Appendix H (Internal) and Appendix C (External), these systems reduce Volatile Organic Compound (VOC) emissions by up to 98%, significantly mitigating fire hazards and product loss. As a global leading manufacturer, Center Enamel provides advanced Full Contact and Pontoon-type floating roofs utilizing high-grade aluminum or stainless steel. These systems are essential for refineries and tank farms storing crude oil, gasoline, and jet fuel, ensuring long-term operational efficiency and ESG compliance.
1. Technical Performance & Vapor Control Matrix
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Design Standards | API 650 App. H / App. C / NFPA 11 | Mandatory for petrochemical and fire safety compliance. |
Material Options | Alloy 5052-H32 / 6061-T6 / Stainless Steel | High corrosion resistance; lightweight for buoyancy. |
VOC Reduction | 95% to 99% Emission Mitigation | Critical for EPA/ESG and carbon footprint targets. |
Seal Types | Mechanical Shoe / Resilient Toroid / Secondary | Prevents vapor bypass; maintains tank shell contact. |
Buoyancy Safety | Minimum 125% Total Weight Reserve | Ensures stability during high-rate filling/emptying. |
Drainage System | Primary/Emergency Siphons (for EFR) | Prevents sinking during heavy rainfall/snow events. |
2. Engineering for Volatile Containment: The Floating Advantage
Elimination of the "Breathing Loss"
Standard fixed-roof tanks experience "breathing losses" due to temperature-induced vapor expansion.
● Zero Ullage Design: Center Enamel’s floating roofs rise and fall with the liquid level, effectively eliminating the vapor space where explosive air-fuel mixtures form. This directly preserves the API gravity and commercial value of high-volatility products like naphtha and gasoline.
● Fire Hazard Mitigation: By maintaining a surface cover, the roof prevents the accumulation of flammable gases, which is the primary cause of tank farm fires. Integrated rim-seal fire protection systems provide an additional layer of active safety.
Advanced Metallurgy and Seal Integrity
● Corrosion Resistance: For crude oil containing high sulfur or H_2S, we utilize stainless steel or specialized aluminum alloys to prevent biogenic corrosion and structural degradation.
● Secondary Seal Systems: To meet the strictest environmental regulations, our roofs feature secondary wiper seals that ensure a tight contact with the tank shell, even in cases of shell out-of-roundness.
3. Strategic Applications: External vs. Internal Systems

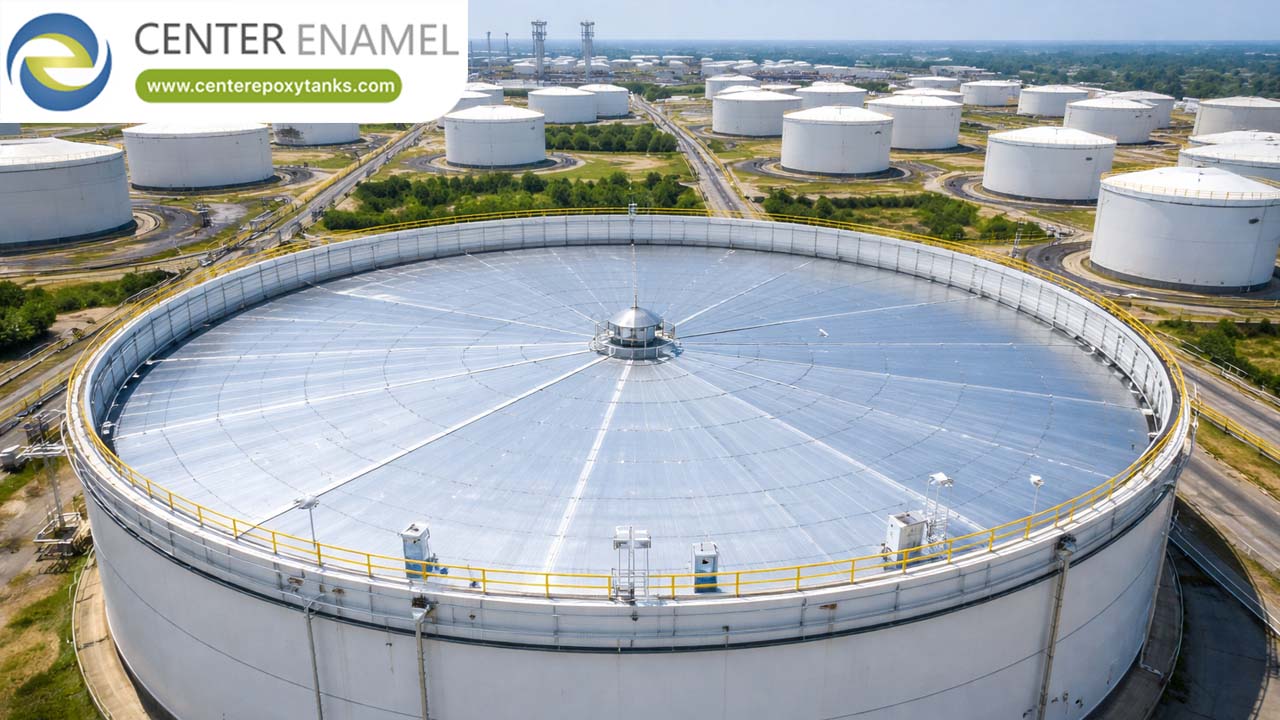

● External Floating Roofs (EFR): The standard for massive crude oil storage tanks in open-top environments. They feature robust drainage systems and wind-resistant seals to withstand extreme weather.
● Internal Floating Roofs (IFR): Installed within fixed-roof tanks to provide "double protection." The fixed roof shields the product from rainwater and wind, while the IFR eliminates vapor loss.
● Petrochemical Feedstocks: Crucial for storing benzene, toluene, and other volatile chemicals where high purity and zero emissions are mandatory.
4. Why Partner with Center Enamel? The Integrated EPC Advantage
As a Global Leading China Floating Roof Manufacturer, Shijiazhuang Zhengzhong Technology Co., Ltd offers a unique technological advantage:
● 30-Year Innovation Heritage: Over 100 patents and 30,000 successful projects globally. We understand the specific chemistry of oil-and-gas storage.
● Full-Contact Reliability: We specialize in Full Contact designs that eliminate any air pockets beneath the roof, offering the highest level of vapor suppression in the industry.
● Precision CNC Fabrication: Our 150,000 m2 facility utilizes automated production to ensure every pontoon and panel meets ISO 9001 and API 650 structural requirements.
● Custom Integration: As a manufacturer of Glass-Fused-to-Steel and Stainless Steel Bolted Tanks, we provide the tank and the roof as a singular, engineered system for 100% mechanical compatibility.
5. Technical FAQ: Oil Storage Safety Strategy
Q: How does the roof handle tank shell imperfections?
A: We use Mechanical Shoe Seals with flexible membranes that can compensate for variations in the tank's diameter, ensuring a constant gas-tight barrier even in older or slightly deformed tanks.
Q: What is the ROI on a floating roof installation?
A: Most facilities recoup the cost within 18–36 months through reduced evaporation loss alone. When factoring in lower insurance premiums and avoided environmental fines, the financial benefit is significant.
Q: Are these roofs compatible with existing tanks?
A: Yes. Our modular aluminum IFRs are lightweight and designed to be "knocked down" and passed through standard manways, making them ideal for retrofitting active tank farms with minimal downtime.
