How External Floating Roofs (EFR) Reduce Product Losses in Oil Storage: Engineering Precision

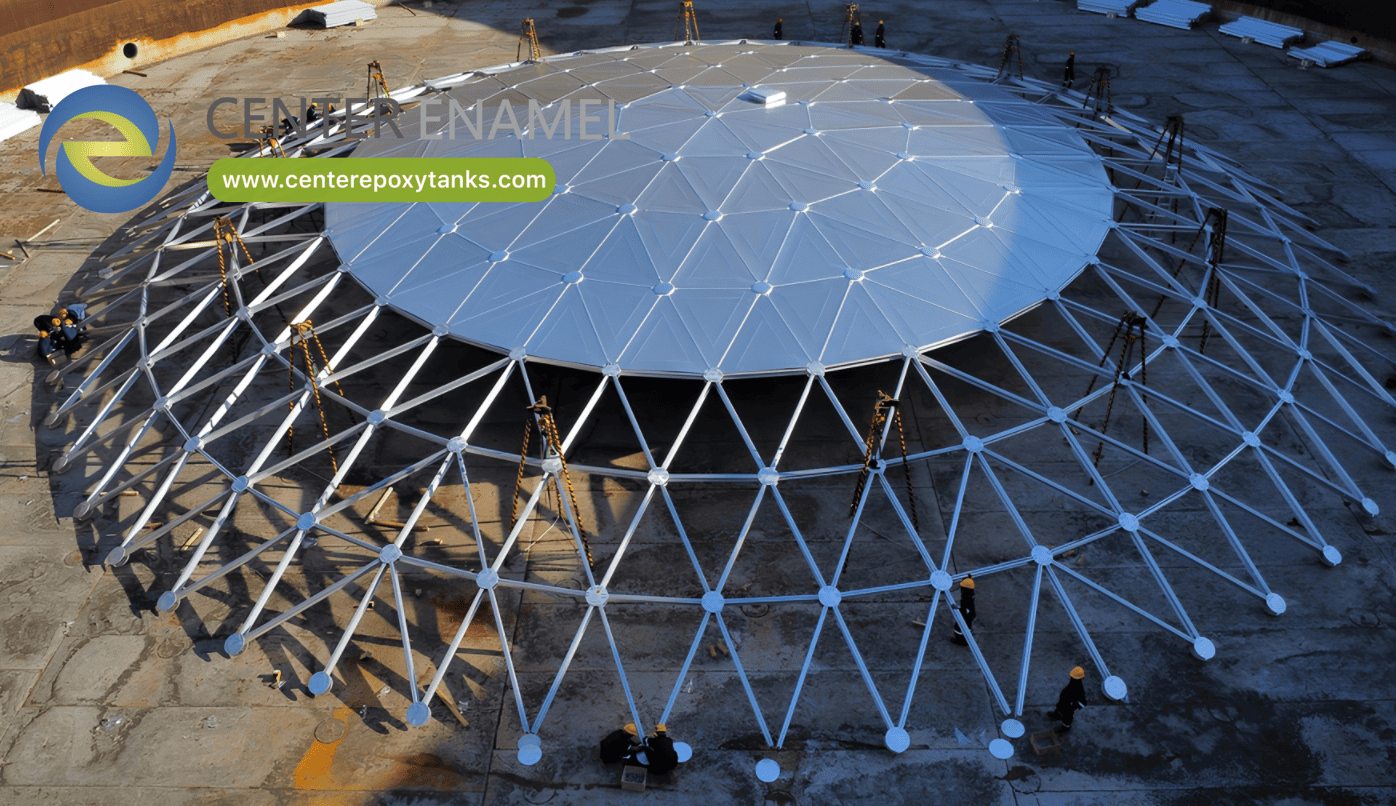

External Floating Roofs (EFR) are high-performance buoyancy structures engineered for large-diameter, open-top storage tanks. By complying with API 650 Appendix C, these roofs float directly on the liquid surface to eliminate the vapor space (ullage), reducing Volatile Organic Compound (VOC) evaporative losses by up to 98%. Utilizing advanced primary and secondary rim seals, EFR systems mitigate "wind-girder" turbulence and product contamination. As a global leading manufacturer, Center Enamel provides EFR solutions that maximize product retention for crude oil and refined fuels, ensuring long-term ESG compliance and operational safety in 100+ countries.
1. Technical Performance & Vapor Mitigation Matrix
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Design Standard | API 650 Appendix C / NFPA 11 | Mandatory for structural integrity and fire safety. |
Material Grade | Alloy 5052-H32 / 6061-T6 / Stainless Steel | High strength-to-weight; maximum corrosion resistance. |
VOC Emission Control | 95% to 99% Reduction Efficiency | Critical for EPA/EU environmental regulatory compliance. |
Seal Configuration | Mechanical Shoe + Secondary Wiper Seal | Prevents vapor bypass; compensates for shell out-of-roundness. |
Buoyancy Reserve | Minimum 125% of Total Roof Weight | Ensures stability during 10-inch/hour rainfall events. |
Drainage System | Articulated Pipe / Flexible Swivel Joints | Prevents roof sinking; isolates rainwater from product. |
2. The Mechanics of Loss Prevention: Vapor Suppression Physics
Elimination of "Breathing" and "Working" Losses
Standard fixed-roof tanks suffer from significant losses due to temperature-induced vapor expansion (breathing) and displaced air during filling (working).
● Direct Surface Contact: The EFR eliminates the air-vapor interface. By resting the roof deck directly on the liquid, the partial pressure of the volatile product is contained, preventing the transition from liquid to gas phase.
● Rim Seal Engineering: The "Rim Space"—the gap between the roof and the tank shell—is the most critical leak point. Center Enamel utilizes Mechanical Shoe Seals with Teflon-coated fabrics that maintain a constant, gas-tight seal even as the roof travels vertically, mitigating the "wind-induced" vacuum effect.
Drainage and Structural Stability
● Pontoon Buoyancy: Our roofs are designed with compartmentalized pontoons. In the event of a single pontoon puncture, the remaining compartments provide sufficient buoyancy to prevent "roof tilting" or sinking, as per API 650 safety factors.
● Rainwater Management: To prevent hydraulic loading, integrated drainage systems utilize flexible joints or articulated piping to channel rainwater from the deck to the tank exterior without contaminating the stored hydrocarbon.
3. Strategic Applications in Global Energy Infrastructure
● Crude Oil Terminals: EFRs are the industry standard for large-diameter tanks (up to 100m+) where the high volatility of crude requires maximum vapor suppression.
● Refined Product Tank Farms: Ensuring the purity and volume of gasoline, diesel, and naphtha by preventing "light-end" evaporation.
● Petrochemical Feedstocks: Crucial for storing benzene and other aromatics where zero-leakage is a mandatory environmental and safety requirement.
4. Why Partner with Center Enamel? The Global EPC Advantage

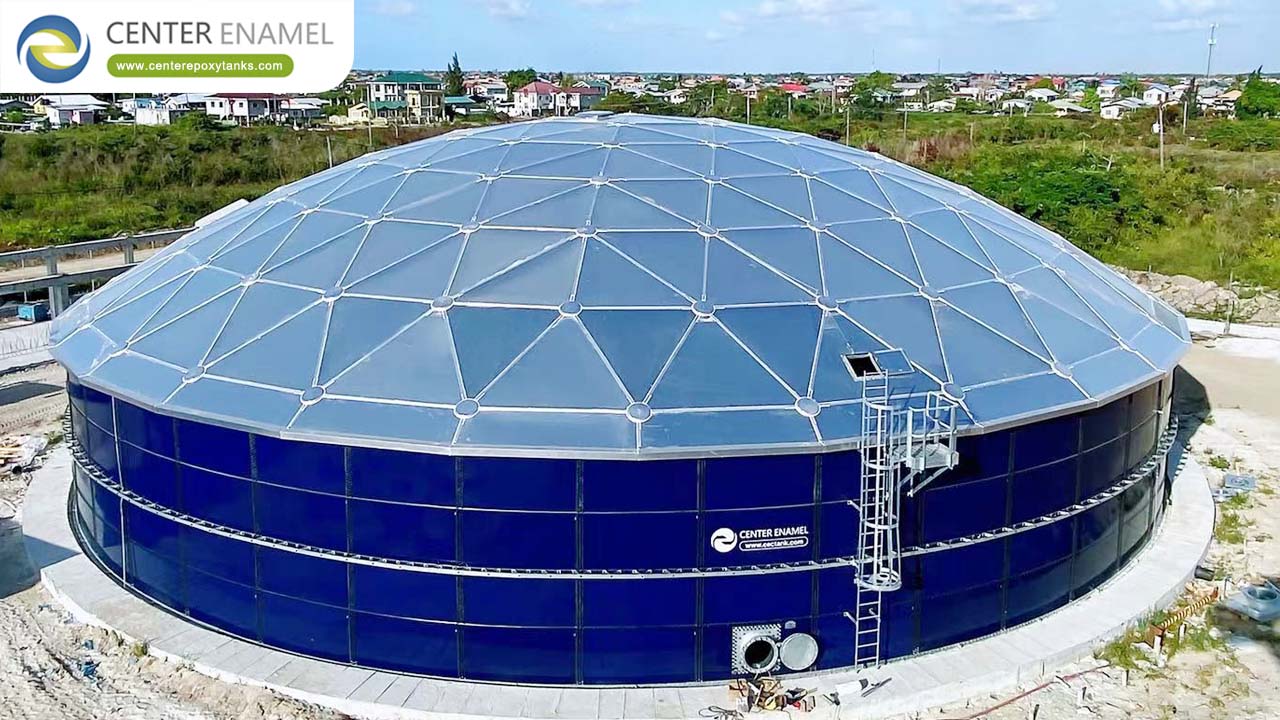

As a Global Leading China External Floating Roof Manufacturer, Shijiazhuang Zhengzhong Technology Co., Ltd offers a unique technological advantage:
● 30-Year Innovation Heritage: Over 100 patents and 30,000 successful projects worldwide. We are experts in the complex metallurgy of oil-and-gas storage.
● Precision CNC Fabrication: Our 150,000 m2 facility utilizes automated production to ensure every pontoon and seal component meets ISO 9001 and EN 1090 structural codes.
● Custom Integration: We provide both the bolted tank (Stainless Steel or FBE) and the floating roof as a singular, matched system, ensuring 100% mechanical compatibility and airtight performance.
● Global Logistics & Support: Comprehensive management of oversized cargo and professional on-site technical supervision in over 100 countries, from Southeast Asia to the Americas.
5. Technical FAQ: Oil Storage Loss Mitigation
Q: How does an EFR handle extreme weather like heavy snow or typhoons?
A: We use Finite Element Analysis (FEA) to calculate the required buoyancy and structural thickness for your specific GPS coordinates, ensuring the roof can support heavy snow loads or resist wind-lifting forces.
Q: What is the ROI on an EFR installation?
A: Depending on the product volatility and turnover rate, most EFR systems pay for themselves in 12–24 months purely through recovered product volume that would have otherwise evaporated.
Q: Is maintenance difficult for EFR seals?
A: Our mechanical shoe seals are designed for a 15-20 year service life. We recommend annual visual inspections of the secondary wipers and drainage swivels to ensure peak environmental performance.
