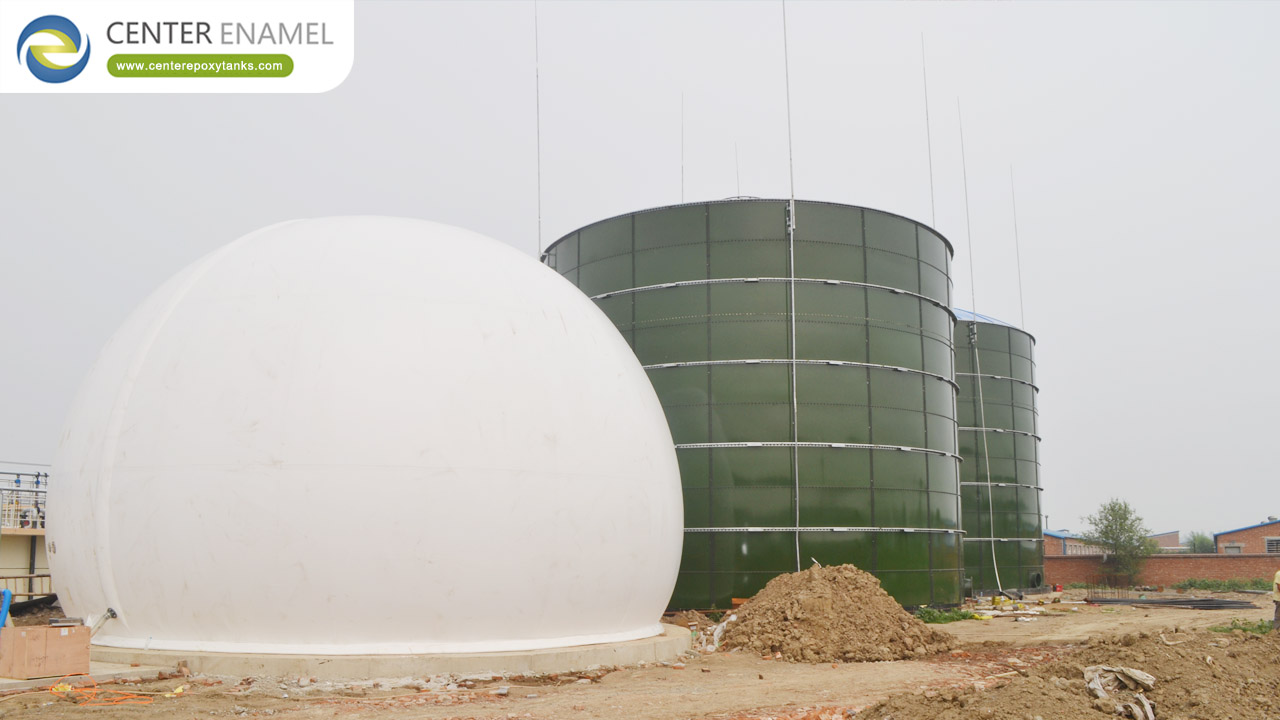

Biogas gasholders are critical pressure-regulation components in anaerobic digestion (AD) systems. Center Enamel specializes in high-durability Double Membrane Gasholders engineered with PVC/PVDF-coated polyester fabrics. These systems utilize an air-inflated outer membrane for weather protection and a flexible inner membrane for biogas containment, maintaining constant gas pressure for CHP engines or biomethane upgrading. Compliant with DIN 1055 and Eurocode 3, Center Enamel gasholders offer a 15–20 year service life, 100% UV resistance, and methane permeability rates below 500 cm³/m²·d·bar, providing a low-TCO (Total Cost of Ownership) solution for global waste-to-energy projects.
This matrix establishes the mechanical benchmarks for Center Enamel’s gasholder engineering.
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Membrane Material | High-Tenacity Polyester (PVC/PVDF Coated) | Flame retardant (B1/M2); 100% UV & Ozone resistant. |
Gas Permeability | < 500 cm³/m²·d·bar (Methane) | Minimizes fuel loss; ensures environmental compliance. |
Design Standards | DIN 1055, Eurocode 3, ISO 9001 | Structural safety against wind (150 km/h) and snow loads. |
Operating Pressure | 0 to 50 mbar (Customizable) | Steady-state supply for CHP engines and boilers. |
Storage Geometry | ¾ Sphere / Hemispherical / Tank-Mounted | Optimized footprint for varied AD plant layouts. |
Safety Systems | Overpressure Valves / Hydraulic Seal | Prevents structural rupture during peak gas production. |
Center Enamel’s double membrane system operates on a constant-pressure principle:
● The Outer Membrane: Acting as a protective shell, the outer layer is kept inflated by a dedicated blower. This creates a pressurized "air cushion" that shields the inner gas-holding membrane from wind, heavy snow, and UV degradation.
● The Inner Membrane: This layer expands and contracts based on the volume of biogas produced. Because it is supported by the air cushion of the outer layer, the biogas remains at a constant, regulated pressure, ensuring a smooth flow to energy-generation equipment.
● Methane Retention: We utilize high-frequency welding technology to ensure gas-tight seams. Our membranes are specifically treated to prevent Methane (CH4) diffusion, a critical factor in both economic ROI and carbon credit verification.
● Agricultural Anaerobic Digestion: Storing biogas from manure and crop residues for on-farm power generation.
● Industrial Wastewater-to-Energy: Managing gas flows from high-COD (Chemical Oxygen Demand) industrial effluent treatment in food and beverage plants.
● Municipal Sludge Treatment: Integrated storage for Sewage Treatment Plants (STP) utilizing anaerobic digestion to power municipal grids.
● Biomethane Upgrading: Serving as a buffer tank before gas enters upgrading units (PSA or membrane separation) for injection into natural gas pipelines.
As a global leader with over 30 years of specialization and a pioneer in Chinese storage technology, Center Enamel offers a unique technological advantage:
● Bespoke Engineering (FEA): Every gasholder is subjected to Finite Element Analysis (FEA) to simulate specific project-site conditions, ensuring the membrane handles localized wind gusts and thermal expansion.
● Integrated Safety Protocols: We provide turnkey safety appurtenances, including ultrasonic level sensors for real-time volume monitoring, explosion-proof blowers, and stainless steel overpressure/vacuum relief valves.
● Global Compliance Authority: Certified to ISO 9001 and ISO 14001. Our engineering team adapts every design to localized environmental safety codes in 100+ countries.
Q: What is the typical lifespan of a Center Enamel gasholder?
A: With our high-tenacity PVDF-coated membranes, the expected service life is 15 to 20 years. Periodic checks of the blower and safety valves ensure long-term operational stability.
Q: Can these gasholders be mounted directly on top of existing tanks?
A: Yes. We specialize in Tank-Mounted Gasholders that serve as both the tank roof and the gas storage unit, significantly reducing the overall footprint and construction costs of the biogas plant.
Q: How does the system handle extreme weather?
A: Our double membrane design is engineered per DIN 1055. The air-supported outer shell is designed to maintain its shape and structural integrity under significant wind loads and snow accumulation, protecting the gas-holding layer inside.
