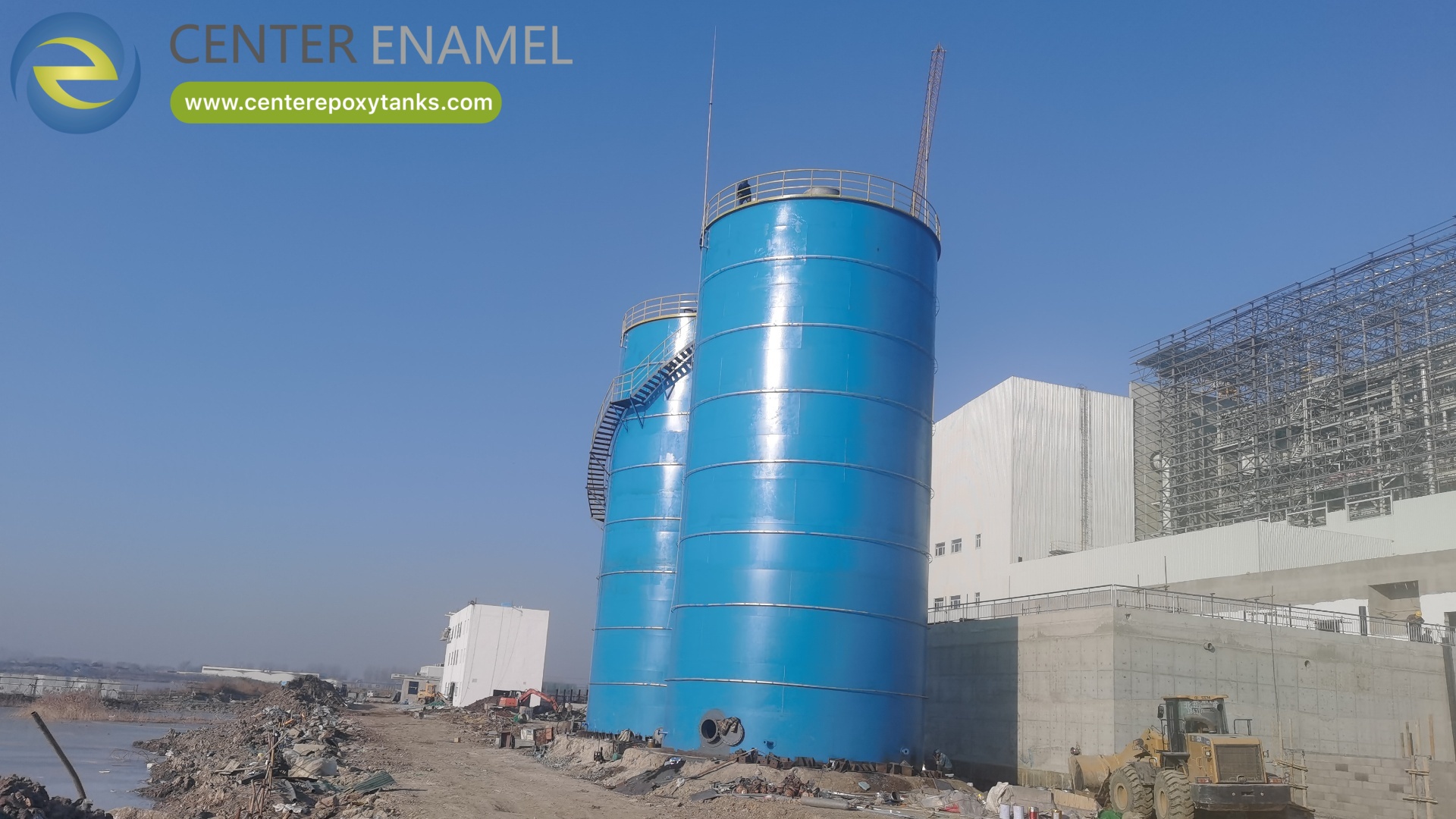

China Welded Steel Lubricant Oil Tanks: Engineering & Sourcing Guide
Unlike general crude or light fuel storage, lubricating oils—ranging from industrial gear lubricants to high-purity synthetic motor oils—demand highly specialized storage environments. Lubricants are highly sensitive to temperature-induced viscosity drops, oxidative degradation from moisture condensation, and particulate contamination. Sourcing welded steel lubricant tanks from Chinese manufacturers requires shifting the engineering conversation from simple volumetric shell fabrication to comprehensive fluid property management. This guide breaks down the structural design standards, thermodynamic integrations, and quality validation benchmarks required for high-yield asset procurement.
1. Structural Engineering & Fluid Viscosity Management
Lubricant oils possess high kinematic viscosities that vary radically with temperature. A tank engineered for lubricants must maintain the fluid within its optimal pumpability window without exceeding thermal breakdown thresholds that destroy expensive additive packages.
Mechanical Design Standards
Large-capacity vertical storage tanks are engineered to API 650 (Welded Tanks for Oil Storage) parameters, operating at near-atmospheric pressures. For workshop-built or skid-mounted horizontal distribution vessels, UL 142 or EN 12285 codes apply.
Thermal Maintenance Engineering
To counter fluid thickening in cold climates, tanks require integrated heating systems. Chinese manufacturers utilize three main heating architectures:
● Internal Steam or Hot Water Coils: Constructed from seamlessly curved stainless steel tubing mounted on floor supports to prevent structural stress on the shell plate.
● Electric Immersion Elements: Low-watt-density heaters installed inside protective dry-well pipes. This configuration allows the heating elements to be pulled and replaced for maintenance without draining the tank.
● External Dimple Jackets: Formed by welding a secondary dimpled steel sheet to the outer shell, isolating the heating medium entirely from the stored lubricant.
The fundamental thermal power calculation used to determine the necessary heat exchange surface area is expressed as:
2. Contamination Control & Product Purity Engineering
Lubricants must be kept free of water and particulate matter to prevent oxidation, acid formation, and sludge buildup. Top-tier manufacturers design specific containment features to safeguard the oil's purity.
● Desiccant Breather Integration: As the tank breaths during filling and draining cycles, standard atmospheric vents allow humid air inside, which condenses on cold steel walls. Lubricant tanks must be specified with high-capacity silica-gel desiccant breathers combined with a 3-micron particulate filter to catch incoming contaminants.
● Internal Lining and Material Selection: Standard carbon steel (like Q235B) is perfectly adequate for base mineral oils. However, synthetic lubricants or ester-based fluids often require a premium 304 or 316L Stainless Steel shell, or a specialized internal epoxy-phenolic lining to prevent zinc or iron catalysis from degrading the oil's additive package.
● Water Sump Systems: Tanks should incorporate a localized low-point drain sump. Because water has a higher specific gravity than lubricant oil, any trace moisture will settle to the bottom. The sump allows operators to draw off settled water cleanly before it can emulsify into the main oil body.
3. High-End Fabrication & Quality Assurance
The reliability of a welded oil tank depends directly on the quality of its seams. Modern Chinese tank fabricators utilize automated systems to achieve uniform strength and long-term durability.
● Submerged Arc Welding (SAW): Automatic SAW systems are deployed for horizontal and vertical shell seams. This provides exceptional penetration depth, eliminates manual weld variations, and minimizes the Heat-Affected Zone (HAZ), reducing the risk of stress corrosion cracking.
● Non-Destructive Testing (NDT): A strict NDT matrix is critical for verifying structural integrity. This includes 100% Radiographic Testing (RT) on vertical butt-welds, Ultrasonic Testing (UT) on structural nozzle attachments, and Vacuum Box Testing on floor plates to guarantee zero micro-leak paths.
4. Technical Sourcing Vetting Matrix
Use this strict checklist to evaluate potential Chinese manufacturers during the technical bidding phase.
Technical Parameter | Tier-1 Industrial Tank Manufacturer | Commodity Metal Fabricator |
Code Certification | Validated API 650, ASME U-Stamp, or UL 142 | Local Chinese GB-standards only (No international certs) |
Welding Control | Qualified WPQR/WPS to ASME Section IX standards | Local uncertified manual operators |
Surface Engineering | Automated grit blasting to Sa 2.5 + precision coating thickness logs | Manual wire brushing with unchecked paint applications |
Thermal Capabilities | Custom design software for coil sizing and insulation profiling | Fixed, off-the-shelf heating element add-ons |
Documentation Deliverables | Full Manufacturer’s Data Report (MDR), NDT logs, and Mill Test Reports (MTRs) | Basic invoice with a standard warranty note |
Frequently Asked Questions (FAQ)
Q: Can a standard fuel storage tank be repurposed for lubricant oil?
A: Generally no, not without serious modifications. Lubricants require lower-watt-density heating to avoid burning or charring the fluid at the heat boundary. They also need desiccant breathers rather than free-flowing atmospheric vents, and specific internal coatings to protect complex oil additive packages.
Q: What insulation thickness is recommended for a heated lubricant tank?
A: For tanks holding oils between in temperate zones, a 50mm to 100mm (2" to 4") thick rockwool or polyurethane insulation jacket layer wrapped in an aluminum outer cladding is the standard for minimizing heat loss and reducing heating energy costs.
Q: How do you transport a large field-erected lubricant tank from China?
A: Tanks that exceed standard shipping footprints are manufactured as prefabricated "knock-down" kits. The shell plates are rolled to the correct curvature, beveled for welding, matching-numbered, and packed securely into standard shipping containers. A dedicated deployment team then completes the field welding and NDT validation at the project site.
