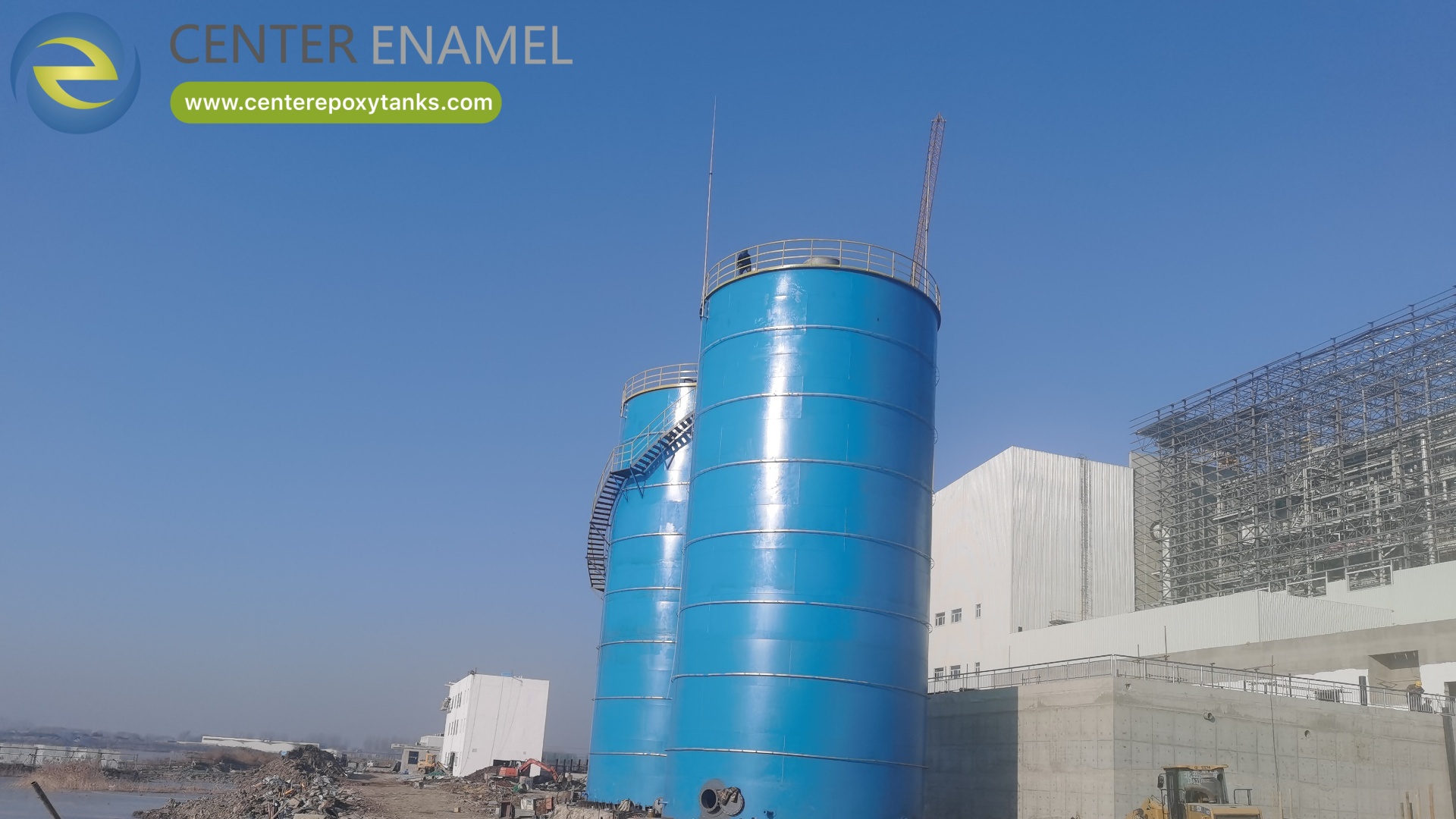

China Welded Steel Industrial Oil Tanks: Procurement & Engineering Guide
Industrial oil storage necessitates a rigorous balance between structural integrity, corrosion resistance, and regulatory compliance. Welded steel tanks, constructed according to API 650 standards, remain the global benchmark for atmospheric storage. As global supply chains increasingly look to China for high-capacity fabrication, understanding the distinction between commodity-grade steelwork and precision-engineered pressure vessels is critical for procurement success. This guide outlines the technical requirements, quality control protocols, and vetting benchmarks necessary for sourcing world-class welded storage infrastructure.
1. Regulatory Framework: API 650 Compliance
The American Petroleum Institute (API) Standard 650 governs the design, fabrication, and testing of vertical, cylindrical, aboveground, welded storage tanks. Procurement teams must mandate compliance with this standard to ensure global operational safety.
Core Design Principles
● Shell Design: Tank shells are engineered using a "1-Foot Method" or "Variable Design-Point Method" to account for hydrostatic membrane stress.
● Corrosion Allowance (CA): A sacrificial layer of steel is added to the calculated thickness to ensure structural integrity throughout the tank’s 30+ year design life.
● Wind & Seismic Loads: Designs must factor in site-specific environmental forces, utilizing wind girders and seismic anchors where regional hazards dictate.
Engineering Note: For tanks exceeding 60m (200 ft) in diameter, simple shell equations are insufficient. Finite Element Analysis (FEA) must be employed to evaluate elastic buckling and stress concentrations.
2. Advanced Fabrication & Quality Control
Reliability in welded oil tanks is defined by the quality of the "join." Leading Chinese fabricators utilize automated systems to minimize human error.
Fabrication Sequence
1. CNC Plate Preparation: High-precision plasma or laser cutting ensures plate edges are perfectly beveled for full-penetration welding.
2. Automated Welding: Use of Submerged Arc Welding (SAW) for vertical and horizontal shell seams ensures deep penetration, uniform bead profiles, and minimal Heat Affected Zones (HAZ).
3. Non-Destructive Testing (NDT) Matrix: Compliance with API 650 requires a strict NDT regimen:
○ Radiographic Testing (RT): Used to verify the integrity of vertical and horizontal shell butt-welds.
○ Vacuum Box Testing: Essential for bottom plate lap-welds to detect micro-leaks.
○ Ultrasonic Testing (UT): Employed for checking plate thickness and nozzle penetration welds.
4. Hydrostatic Testing: The final verification step. The tank is filled with water to its maximum capacity to monitor structural settlement and ensure zero leakage under service conditions.
3. Procurement Vetting Matrix
Differentiate high-end pressure vessel fabricators from commodity steel shops using this scorecard.
Vetting Factor | Top-Tier Manufacturer | Commodity-Grade Supplier |
Certifications | ASME "U" Stamp, API 650/620 compliance | ISO 9001 only (No tank-specific certs) |
Material Traceability | 100% Mill Test Reports (MTRs) for every plate | Batch/Lot reporting only |
Weld Testing | In-house X-ray bunkers & UT/MT equipment | Outsourced/Subcontracted NDT |
Surface Prep | Automated grit blasting to Sa 2.5 standard | Manual wire brushing |
Engineering | Full FEA and shop-drawing support | Standard "catalog" sizing only |
4. Operational Best Practices
Maximizing the lifecycle of a welded steel tank requires proactive maintenance of the protective systems.
● Internal Lining: For corrosive crude or sour oil, specify an internal coating (e.g., epoxy-phenolic or glass-flake reinforced) to mitigate internal pitting.
● Cathodic Protection: Install factory-designed sacrificial anode systems or Impressed Current Cathodic Protection (ICCP) to prevent external floor corrosion.
● Inspection Cycle: Implement a scheduled API 653 inspection program (Internal and External) to monitor shell thickness and base settlement over time.
Frequently Asked Questions (FAQ)
Q: Does a "Chinese-made" tank meet international safety standards?
A: Yes, provided the manufacturer is correctly vetted. Chinese fabricators with ASME and API certifications operate with the same quality management systems as their Western counterparts. The critical step is verifying their specific API 650 experience and their ability to provide the "Manufacturer’s Data Report" (MDR) for every vessel.
Q: How are large tanks transported if they are too big for standard shipping?
A: Large-diameter tanks (typically >4.5m) are fabricated as "knock-down" kits—individual curved shell plates and roof components are shipped in standard containers and then field-welded at the project site by an experienced erection team.
Q: What is the most critical document to request from a manufacturer?
A: The Manufacturer’s Data Report (MDR). This document serves as the "birth certificate" for the tank, containing all material test reports, welder qualifications, NDT inspection logs, and hydrostatic test results. Without an accurate MDR, the tank is effectively un-certifiable for international insurance and regulatory purposes.
