Stand-Alone Gas Holders: Engineering, Design & Procurement Guide

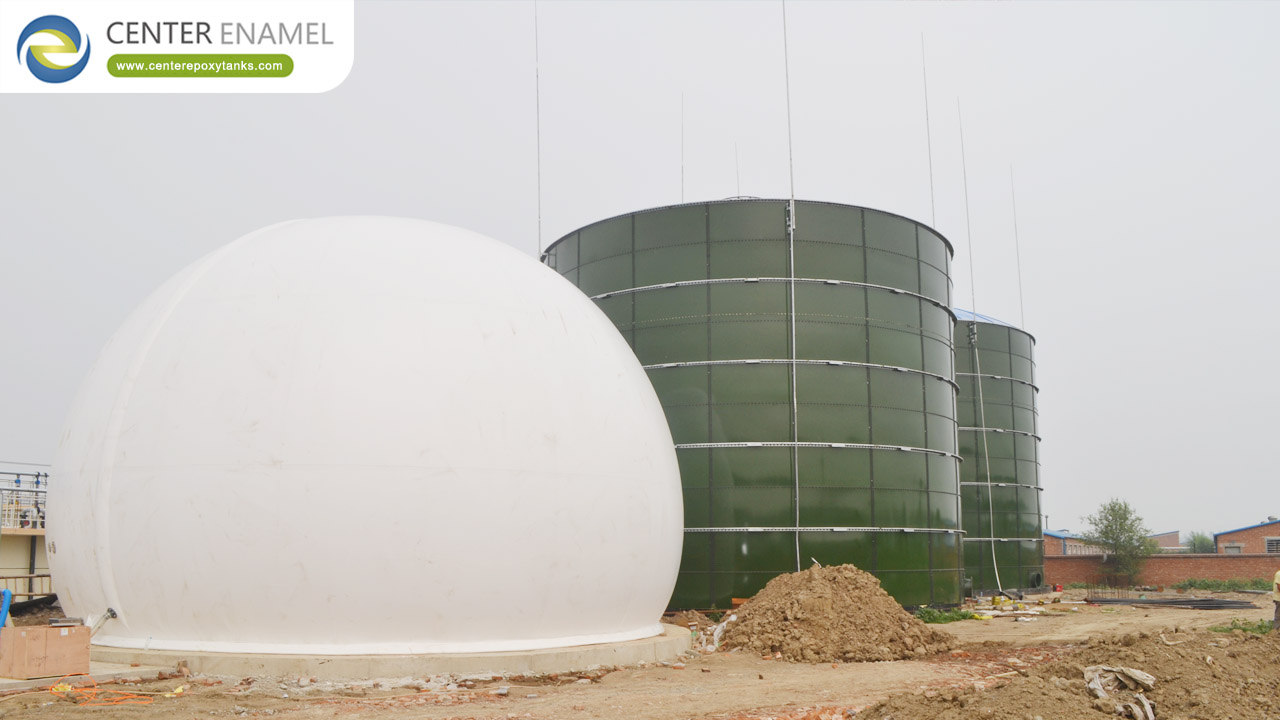

For industrial biogas facilities and municipal wastewater treatment plants, the stand-alone (freestanding) type gas holder represents the optimal solution for decoupled gas storage. Unlike tank-mounted systems that are restricted by the geometry of the digester, stand-alone gas holders are installed on a dedicated concrete foundation. This separation offers superior operational flexibility, easier maintenance, and the ability to buffer gas volumes independently of the primary production tanks. As a leading manufacturer, we provide custom-engineered, high-tensile membrane storage systems designed for rigorous industrial duty.
1. Technical Architecture: The Stand-Alone Design
A stand-alone gas holder functions as an independent pneumatic vessel. Its design architecture relies on three primary membrane layers working in tandem:
● Outer Membrane: A weather-resistant, UV-stabilized shell that maintains the dome shape and withstands environmental loads (wind and snow).
● Inner Membrane: A gas-tight, flexible chamber that expands and contracts based on gas volume, directly containing the biogas.
● Bottom Membrane: A base layer anchored to the concrete foundation slab, providing a sealed environment that prevents soil contamination and ensures the system remains airtight.
● Air-Support System: A continuously operating, explosion-proof centrifugal blower maintains positive pressure in the space between the inner and outer membranes. This constant air pressure provides the structural rigidity needed to protect the inner gas-containing membrane.
2. Why Choose a Stand-Alone Configuration?
In large-scale industrial projects, engineers often prefer stand-alone units over tank-mounted covers for several specific reasons:
Feature | Stand-Alone Gas Holder | Tank-Mounted Cover |
Operational Independence | Can be serviced without shutting down the digester. | Maintenance requires tank access. |
Site Planning | Flexible placement (can be 50–100m from plant). | Fixed location on top of the digester. |
Safety | Gas storage is isolated from the reaction vessel. | Gas storage is integrated with the reaction vessel. |
Capacity Scaling | Easily sized for large-scale buffer needs. | Limited by tank diameter. |
Maintenance | Rapid, safe ground-level access. | Requires working at height (on top of tank). |
3. Engineering Standards for Industrial Membranes
The durability of a stand-alone gas holder is defined by the quality of its technical textiles. We utilize high-tensile Polyester (PES) base fabrics coated with specialized polymers to meet extreme industrial requirements:
● Chemical Resistance: Membranes are specifically engineered to resist the corrosive effects of hydrogen sulfide (H2S) and saturated water vapor inherent in raw biogas.
● Thermal Performance: Materials are rated for high-frequency weld integrity across operating temperature ranges of -30C to +70C.
● Safety Integration: Every unit is equipped with a hydraulic overpressure relief valve, ultrasonic level sensors for real-time SCADA monitoring, and flame arrestors for secure gas discharge.
4. Procurement Checklist for Global EPC Contractors
When sourcing stand-alone gas holders from China, EPC managers should evaluate suppliers against these high-tier engineering benchmarks:
1. Static Load Analysis: Does the supplier provide a project-specific structural analysis verifying that the membrane tension and anchor ring design can withstand your regional wind and snow load codes (e.g., ASCE/Eurocode)?
2. Manufacturing Precision: Does the fabricator utilize automated high-frequency or thermal welding to ensure uniform seam strength, or are they relying on manual, inconsistent hand-welding?
3. Blower Redundancy: Does the system include automatic backup or dual-blower configurations to ensure the outer dome never collapses during a power fluctuation?
4. Integration Support: Can the manufacturer supply detailed concrete foundation blueprints for the anchor ring, or are they only providing the membrane components?
5. Frequently Asked Questions (FAQ)
Q: What is the maximum storage capacity for a stand-alone unit?
A: Stand-alone units are modular and highly scalable. We can engineer systems ranging from 50 m^3 for small pilot plants to massive 20,000 m^3+ configurations for municipal wastewater treatment facilities.
Q: Can these units handle high-pressure gas?
A: Stand-alone membrane holders are low-pressure storage systems (typically 5 to 50 mbar). If your process requires high-pressure storage (e.g., for CNG filling), the membrane holder acts as the low-pressure buffer before the gas enters the high-pressure compressor stages.
Q: How is the biogas volume monitored?
A: We integrate ultrasonic level sensors at the apex of the dome. These sensors measure the expansion of the inner membrane and send real-time 4-20mA signals to the plant's PLC/SCADA, ensuring operators always know the current gas availability.
Stand-alone gas holders provide the structural and operational independence required by modern, high-efficiency biogas facilities. By decoupling gas storage from the digester, plant managers gain significantly higher flexibility, improved safety, and reduced maintenance complexity. Partnering with an experienced manufacturer that prioritizes high-tensile material science and rigorous pneumatic design is the key to securing long-term operational success.
