Membrane digester covers (also known as integrated membrane roofs) are advanced dual-layer containment systems engineered for anaerobic digestion (AD) tanks. These systems function as both a gas-tight seal and an integrated variable-volume gas holder. Center Enamel (Shijiazhuang Zhengzhong Technology Co., Ltd) is a premier China Membrane Digester Covers Manufacturer, utilizing high-tenacity polyester fabrics with PVC/PVDF coatings to resist H2S corrosion and UV degradation. Compliant with Eurocode and ISO standards, our covers optimize methane capture and pressure stability for agricultural, municipal, and industrial biogas plants in 100+ countries.
This matrix establishes the mechanical benchmarks for Center Enamel’s membrane technology.
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Material Base | High-Tenacity Polyester (Type II - V) | High tensile/tear strength for structural longevity. |
Coating Chemistry | PVC with PVDF Lacquer / Anti-Fungal | Low methane permeability ($< 400 cm^3/m^2 cdot d cdot bar$). |
Structure | Double-Membrane (Air-Cushion System) | Constant pressure regulation via automated blowers. |
Design Standards | Eurocode 1 / DIN 4112 / ASCE 7-22 | Engineered for localized wind, snow, and seismic loads. |
Chemical Resistance | pH 3 to pH 11 (High H2S Tolerance) | Prevents material embrittlement in "sour" gas environments. |
Operating Pressure | 0.5 mbar to 5.0 mbar (Standard) | Optimized for low-pressure anaerobic digestion flows. |
Center Enamel’s integrated roofs transform a static tank into a dynamic energy asset through a dual-zone design:
● The Inner Gas Membrane: This flexible layer floats directly above the slurry or gas zone. It expands and contracts to buffer fluctuations in gas production, ensuring a steady supply to the CHP (Combined Heat and Power) unit without mechanical fatigue.
● The Outer Structural Membrane: Maintained at a constant positive pressure by a specialized air blower, the outer dome provides the aerodynamic profile necessary to shed rainwater and resist wind loads.
● Thermal Buffer Zone: The air gap between the two membranes acts as an insulating thermal barrier. This minimizes heat loss from the digester, which is critical for maintaining the mesophilic ($35text{--}40^circtext{C}$) or thermophilic ($50text{--}55^circtext{C}$) temperatures required for optimal microbial activity.
● Agricultural Biogas (LMP): Capturing methane from livestock manure and crop residues. Our covers turn environmental liabilities into on-site renewable electricity.
● Industrial Wastewater (EGSB/IC): Managing organic-rich streams from breweries, distilleries, and food processors. The covers provide 100% odor control and VOC containment.

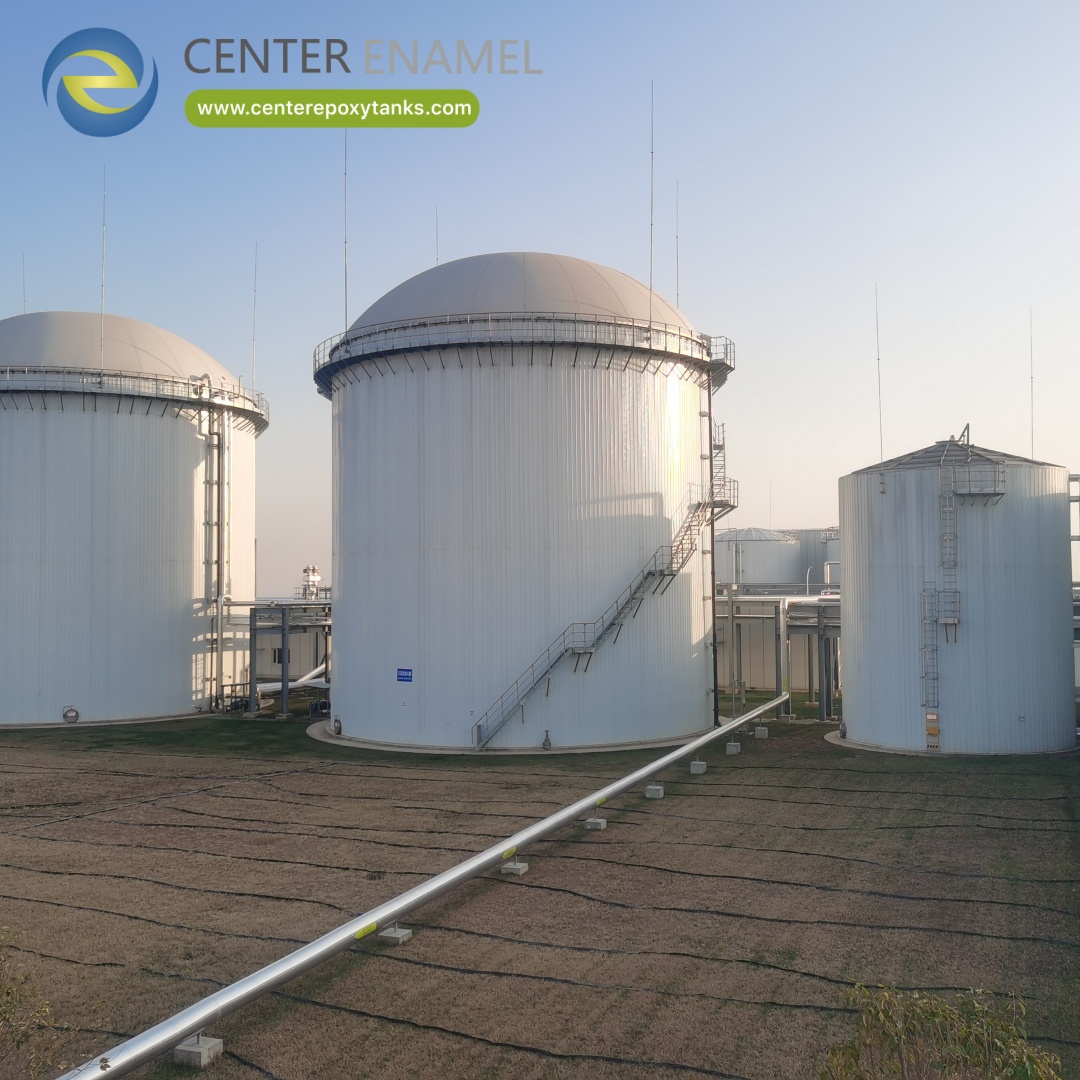

● Municipal Sludge Digestion: Integrated with our Glass-Fused-to-Steel (GFS) tanks, these covers provide a turnkey solution for urban sewage treatment plants seeking energy neutrality.
● Organic Fraction of Municipal Solid Waste (OFMSW): Facilitating large-scale "Waste-to-Energy" projects that divert food waste from landfills.
As a global leader with over 30 years of R&D, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) offers a unique technological advantage:
● One-Stop Integrated Manufacturing: We are the only manufacturer in Asia providing both the bolted digester tanks (GFS, FBE, Stainless Steel) and the membrane covers. This ensures 100% mechanical compatibility and eliminates the risk of "interface leaks" common when using multiple vendors.
● Advanced CNC Fabrication: Our membranes are cut using high-precision CNC laser systems and joined via high-frequency welding. This ensures uniform seam strength and zero "holiday" defects in the gas barrier.
● Global Compliance Authority: Our systems are certified to ISO 9001, WRAS, and NSF/ANSI 61, and our engineering team performs site-specific Finite Element Analysis (FEA) for every project.
● Proven International Footprint: From 11,000 m3 municipal projects in Saudi Arabia to 24,000 m3 facilities in China, we possess the logistical expertise to deliver and supervise installations on six continents.
Q: How do you manage $H_2S$ corrosion on the membrane?
A: We utilize membranes with specialized internal coatings that are chemically inert to Hydrogen Sulfide. For high-$H_2S$ applications, we recommend integrated biological desulfurization nets that can be installed directly under the cover.
Q: What happens during a power failure to the air blower?
A: Our systems include weighted safety valves and backflow preventers. While the outer dome may lose some rigidity over time, the inner gas membrane remains sealed. We recommend redundant blowers or UPS backups for critical energy-exporting facilities.
Q: Can these covers be retrofitted to existing concrete tanks?
A: Yes. Center Enamel designs custom stainless steel mounting rims that allow our membrane covers to be securely anchored to existing concrete or welded steel digesters, providing an immediate upgrade to gas storage capacity.
