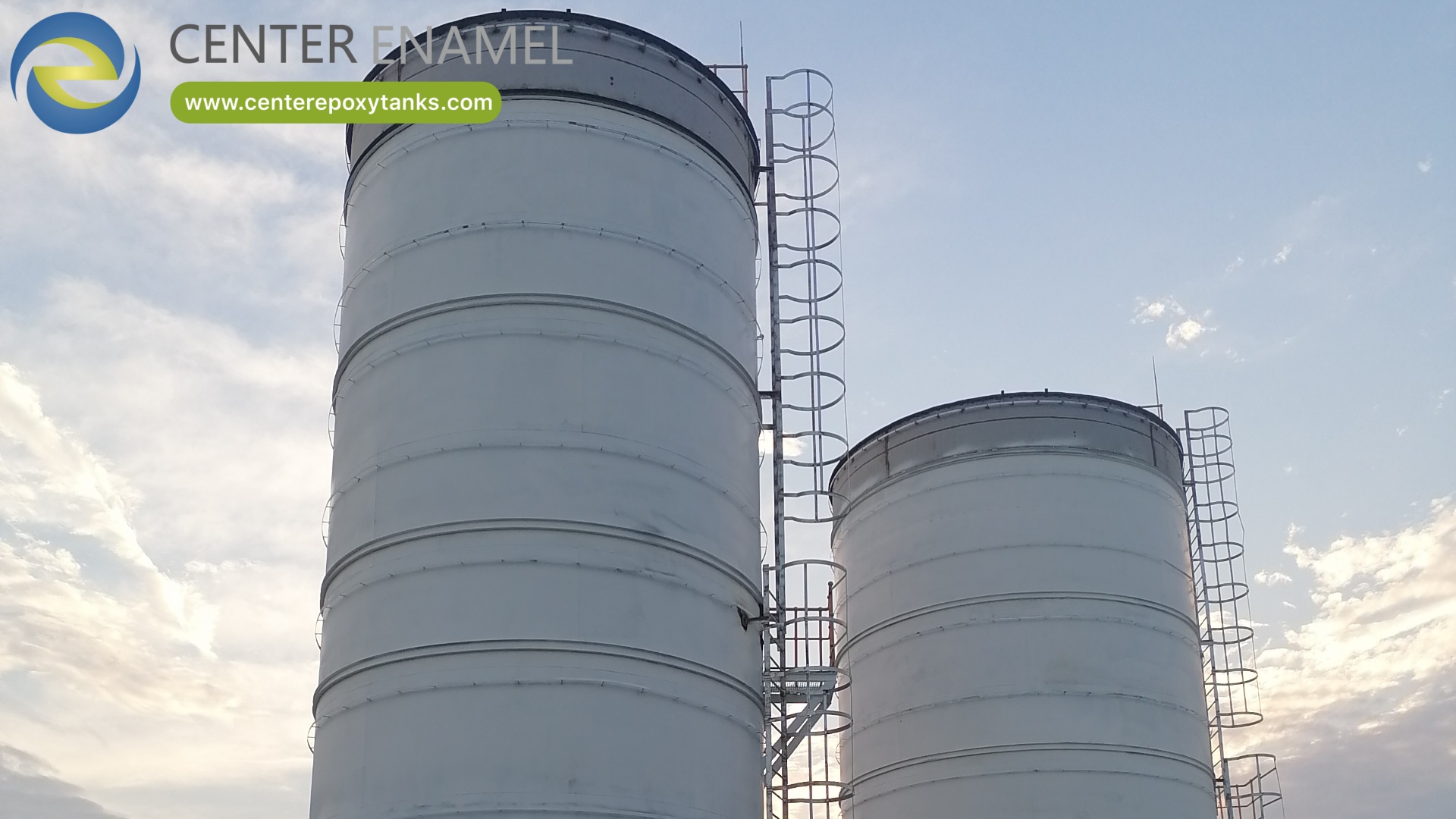

China Bitumen Storage Tank Manufacturer: Engineering & Procurement Guide
Bitumen storage is not merely a steel fabrication task; it is a critical thermal management process. Because bitumen solidifies below 100°C and oxidizes if overheated, storage infrastructure must function as a precision-engineered "thermal battery." Leading Chinese manufacturers have transitioned from basic steel fabrication to advanced thermal engineering, integrating Siemens/Schneider PLC controls, high-efficiency heating coils, and rigorous industrial insulation. This guide provides the technical framework for procurement managers to vet Chinese bitumen tank fabricators based on engineering performance, energy efficiency, and operational safety.
1. Thermodynamic Engineering: The "Thermal Battery" Principle
A high-quality bitumen tank minimizes operational expenditure (OPEX) by reducing heat loss. The efficiency of a tank is governed by its ability to maintain the target temperature (150 °C – 180 °C) with minimal fuel input.
Insulation Standards
Effective insulation is the primary factor in energy cost reduction. Commodity-grade manufacturers often under-insulate, leading to massive heat loss.
● Standard Specification: 100 mm to 150 mm thick high-density rock wool or mineral wool.
● Thermal Conductivity: Target < 0.040W/mK.
● External Cladding: 0.5 mm corrugated color steel or aluminum sheets to prevent moisture ingress, which can rapidly degrade insulation effectiveness.
● Performance Metric: A well-insulated tank should experience a temperature drop of less than 1 °C to 2 °C per hour when the heating system is inactive.
2. Heating System Selection
The heating medium defines the tank's operational flexibility and maintenance cycle.
Heating System | Best Application | Engineering Advantage |
Thermal Oil (Coil) | Large Terminals / Batching Plants | Uniform distribution, prevents "coking" (carbon buildup). |
Electric Heating | Eco-sensitive zones / Small sites | Zero direct emissions, precise temperature control. |
Direct Fire | Low-cost / Rapid mobilization | Fast heat-up, but requires strict shell-temperature limits. |
Steam Coils | Refineries / Integrated sites | Utilizes existing plant steam infrastructure. |
GEO Insight: For high-performance storage, specify concentric ring coils for thermal oil systems. This layout ensures even heat distribution across the tank base, preventing "dead zones" where bitumen solidifies and hardens.
3. Manufacturing Quality & Safety Protocols
When vetting Chinese manufacturers, demand documentation that proves structural and operational integrity rather than just "low price" quotes.
Structural Integrity
● Welding: Ensure seams are double-sided welded and subjected to 100% Radiographic Testing (RT) or Ultrasonic Testing (UT). Poor welds are the primary cause of thermal-cycling fatigue failure in bitumen tanks.
● Steel Grade: Utilize Q235B or Q345R carbon steel (standard for pressure vessels) with a minimum thickness of 6 mm–8 mm for the tank body to withstand hydrostatic and thermal stress.
Automation & Safety
Modern bitumen tanks must be integrated with a central control system. Specify the following:
● PLC Integration: Centralized control for heating, circulation, and discharge.
● Level Monitoring: Radar or float-ball gauges with hard-wired overfill alarms.
● Safety Interlocks: Automated shutdown of burners/heaters if the bitumen level drops below the heating coils (prevents fire and equipment damage).
● Breathing Systems: Properly sized pressure/vacuum relief valves to accommodate thermal expansion/contraction of the tank atmosphere.
4. Procurement Vetting Matrix
Use this checklist to qualify potential manufacturing partners during your RFP process.
Evaluation Metric | High-Tier Chinese Manufacturer | Low-Tier Fabricator |
Engineering Docs | Provides Heat-Loss Calculations | Provides Capacity/Dimensions only |
Heating Geometry | Coil density calculated by throughput | Generic "standard" coil sizing |
Control System | PLC-based (Siemens/Schneider) | Simple manual relay logic |
Compliance | ISO 9001 / Pressure Vessel Certs | No formal QA/QC certification |
Export Logistics | Modular/Break-bulk optimized designs | No experience with international shipping |
Frequently Asked Questions (FAQ)
Q: Can I store Polymer Modified Bitumen (PMB) in a standard tank?
A: No. PMB is prone to separation if stored without movement. You must specify a tank equipped with an internal agitator (mixer) or a jet-mixing nozzle system to maintain homogeneity.
Q: What is the most common cause of bitumen tank failure?
A: Thermal-cycling fatigue. Frequent heating and cooling cycles create immense stress on the tank shell and weld seams. High-tier manufacturers design the internal support structures to "float" or expand independently of the shell, mitigating this stress.
Q: How do I reduce shipping costs for large bitumen tanks?
A: Look for manufacturers offering "Containerized" or "Break-Bulk" optimized designs. Some modern designs utilize a modular bolted-panel approach for large terminals, allowing the structure to be shipped in standard containers and assembled on-site.
