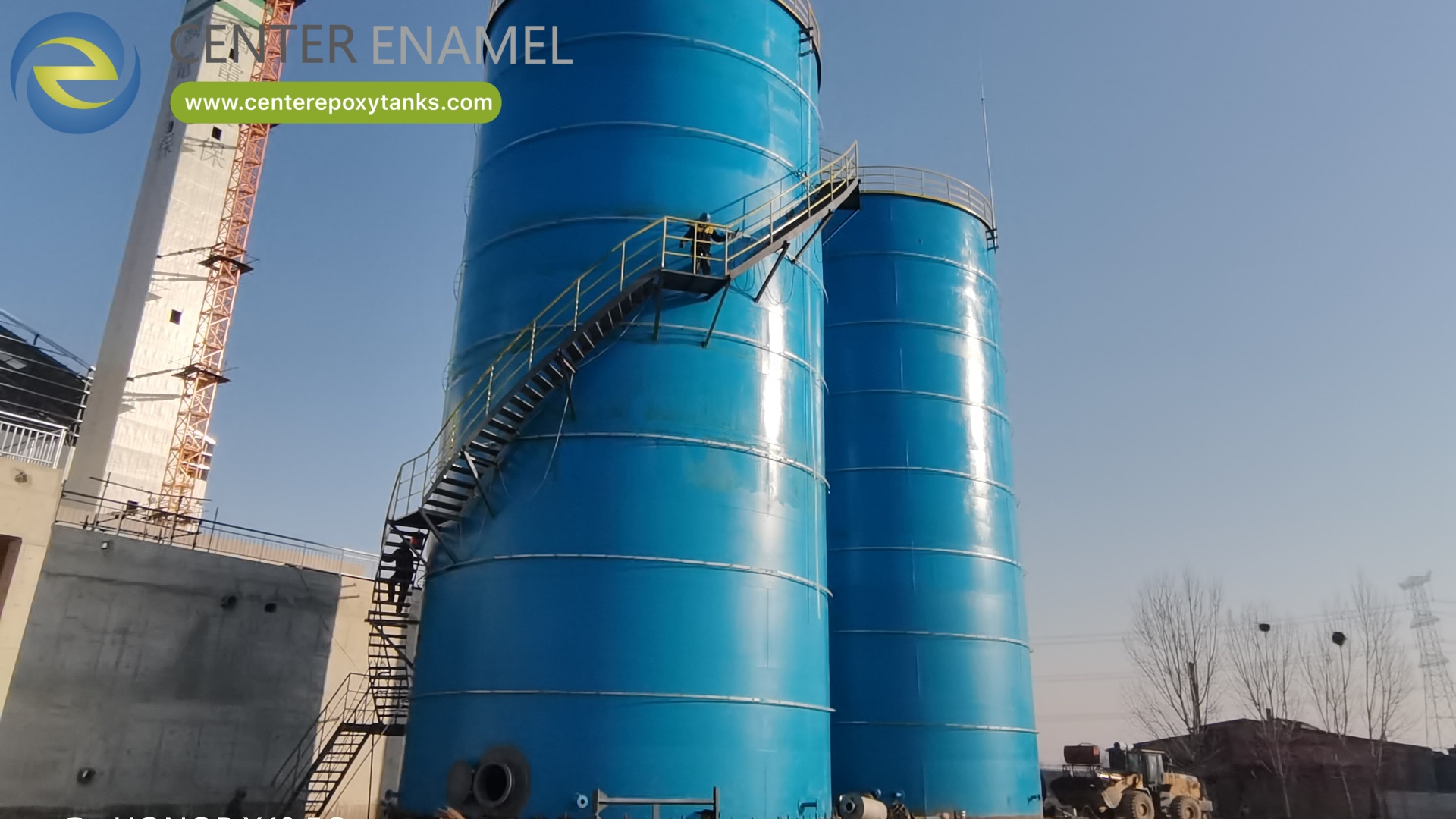

China Biofuel Storage Tanks: Engineering & Material Selection Guide
The global transition toward renewable energy has driven rapid capacity expansions in biofuel infrastructure, encompassing liquid fuels (bioethanol and biodiesel) and gaseous vectors (biogas/biomethane via anaerobic digestion). Storing these fuels presents severe chemical and biological challenges. Biofuels are highly hygroscopic, prone to microbiologically induced corrosion (MIC), and frequently generate aggressive acidic headspaces.
Sourcing containment systems from a premium China biofuel tank manufacturer requires moving past generic steel fabrication. Procurement teams must evaluate specialized structural typologies—such as Glass-Fused-to-Steel (GFS), Fusion Bonded Epoxy (FBE), and advanced stainless steel bolted configurations—to ensure long-term capital asset security.
1. Biochemical Challenges & Material Response Matrix
Different generations of biofuels interact uniquely with storage tank boundaries. Selecting the appropriate internal lining or metallurgy is critical to preventing premature structural failure.
A. Bioethanol Containment
Bioethanol is highly hygroscopic, actively absorbing moisture from the surrounding atmosphere. This water accumulation settles at the bottom of the tank, creating a localized phase-separation zone that accelerates galvanic and pitting corrosion in standard carbon steel. Furthermore, ethanol is highly compatible with stainless steel (304 or 316L) and high-build polymer coatings, which prevent the extraction of iron ions that could contaminate the fuel matrix.
B. Biodiesel (Fatty Acid Methyl Esters - FAME)
Biodiesel acts as a nutrient source for various airborne and waterborne bacteria. When moisture enters the tank, microbial colonies proliferate at the fuel-water interface, executing metabolic processes that yield highly corrosive organic acids. This phenomenon, known as Microbiologically Induced Corrosion (MIC), can rapidly pit unprotected steel walls.
C. Biogas & Anaerobic Digestion
The processing of biomass into biogas generates high concentrations of hydrogen sulfide (H2S) and carbon dioxide (CO2). In the humid headspace of a digester, these gases condense into sulfuric and carbonic acids, creating an aggressive environment from pH 2.0 to pH 5.0.
● The GFS Solution: To survive this environment, premier Chinese manufacturers deploy Glass-Fused-to-Steel (GFS) technology. By fusing silica glass enamel to steel plates at temperatures between $800^circtext{C}$ and $850^circtext{C}$, they create a physical barrier that combines the structural strength of steel with the total chemical inertness of glass.
2. Thermodynamics of Biogas Retention
For tanks acting as active anaerobic digesters or heated biomass pasteurization vessels, maintaining a stable internal temperature is vital to microbial survival. The structural insulation layer must be engineered to minimize thermal dissipation. The continuous thermal energy loss through the insulated tank shell is calculated using the standard thermodynamic steady-state equation:
●
Top-tier manufacturers utilize integrated polyurethane spray foam or high-density rockwool insulation sheets encased in aluminum outer cladding to keep the $U$-coefficient as low as possible, reducing the operational energy required to maintain the biofuel process.
3. Structural Typologies for Biofuel Infrastructure
Modern industrial project timelines prioritize rapid field deployment and modular scalability, causing a major industry shift from field-welded tanks to prefabricated bolted configurations.
Engineering Attribute | Glass-Fused-to-Steel (GFS) Bolted Tanks | Fusion Bonded Epoxy (FBE) Tanks | Stainless Steel (316L) Bolted Tanks |
Primary Application | Biogas digesters, biomass processing, aggressive wastewater | Finished biodiesel storage, process water, fire loops | High-purity bioethanol, ultra-pure chemicals, distillation loops |
Chemical Tolerance | Extreme (pH 2.0 to pH 14.0) | Moderate-High (pH 3.0 to pH 11.0) | High (Excellent across organic solvents) |
Coating Technology | Physical vitreous enamel fusion at 800 °C+ | Electrostatic thermoset polymer cross-linking at 200 °C+ | None (Inherent metallurgical passivation layer) |
Design Service Life | 30 to 60+ Years | 20 to 30+ Years | 40 to 60+ Years |
Impact Resilience | Moderate (Brittle glass layer requires care) | Very High (Flexible polymer matrix) | High (Ductile metallic surface) |
4. International Regulatory & Design Compliance
When vetting a Chinese manufacturer for utility-scale biofuel projects, the production facility must demonstrate third-party validation matching the destination country's regulatory framework:
● AWWA D103: Standard for Factory-Coated Bolted Carbon Steel Tanks for Water Storage (applicable to FBE and GFS configurations).
● ISO 28765: Vitreous and porcelain enamels — Design of bolted steel tanks for the storage or treatment of water or municipal or industrial effluents and sludges.
● NFPA 22: Standard for Water Tanks for Private Fire Protection (critical for safety infrastructures at biofuel refining plants).
● API 650: Welded Tanks for Oil Storage (mandatory if the project layout demands large-scale field-welded liquid biodiesel terminal storage).
5. Technical Procurement Vetting Checklist
Differentiate premium industrial pressure-vessel fabricators from localized sheet-metal workshops with this checklist.
● Edge Corrosion Protection Protocols: For bolted GFS and FBE sheets, the laser-cut edges are highly vulnerable. Top-tier manufacturers utilize automated CNC edge-grinding to create a radiused corner, followed by premium specialized edge-coating sprays or protective caps to eliminate pinpoint corrosion paths.
● Fastener Grading: Ensure all structural bolts are rated to a minimum of Grade 8.8 or 10.9, hot-dip galvanized or packaged with specialized polymer heads to prevent galvanic interaction with the tank panels.
● Non-Destructive Testing (NDT): The manufacturer must provide factory logs demonstrating 100% High-Voltage Holiday Testing (minimum 1500V for FBE, up to 1500V–2500V for GFS) to verify that every panel shipped is free of microscopic pinholes or structural voids.
Frequently Asked Questions (FAQ)
Q: Why are GFS tanks preferred over concrete for biogas anaerobic digesters?
A: Concrete is inherently porous and susceptible to micro-cracking caused by structural settling and seismic activity. Once acid vapor penetrates concrete, it corrodes the internal steel rebar, leading to structural failures. GFS bolted tanks are completely gas-tight, completely immune to H2S headspace acid attack, and can be assembled in a fraction of the time required to pour concrete.
Q: How are these modular tanks transported from China to international project sites?
A: Because the panels are flat, they are nested together safely on heavy-duty steel pallets, wrapped in protective foam sheets, and packed directly into standard 20-foot or 40-foot shipping containers. This logistics configuration maximizes container volume utilization and lowers international ocean freight costs compared to pre-welded cylindrical structures.
Q: Can a biofuel tank be expanded if plant capacity demands increase later?
A: Yes. One of the main benefits of the bolted configuration (both GFS and FBE) is its modular design. If the structural foundation was originally engineered to handle the load, the tank can be unbolted, jacked up hydraulically, and additional vertical steel rings can be integrated at the base to scale up the volumetric capacity seamlessly.
