Membrane Roofs for Biogas Digesters: Advanced Containment and Gas Storage
As the global transition toward circular bioeconomies and decarbonization accelerates, anaerobic digestion (AD) has become a primary technology for transforming organic waste—including agricultural manure, municipal sewage sludge, and industrial effluents—into clean renewable energy. Traditionally, biogas plants relied on separate infrastructure, using one tank for biological fermentation and a separate standalone gasometer for intermediate gas buffering, connected by extensive pipe networks.

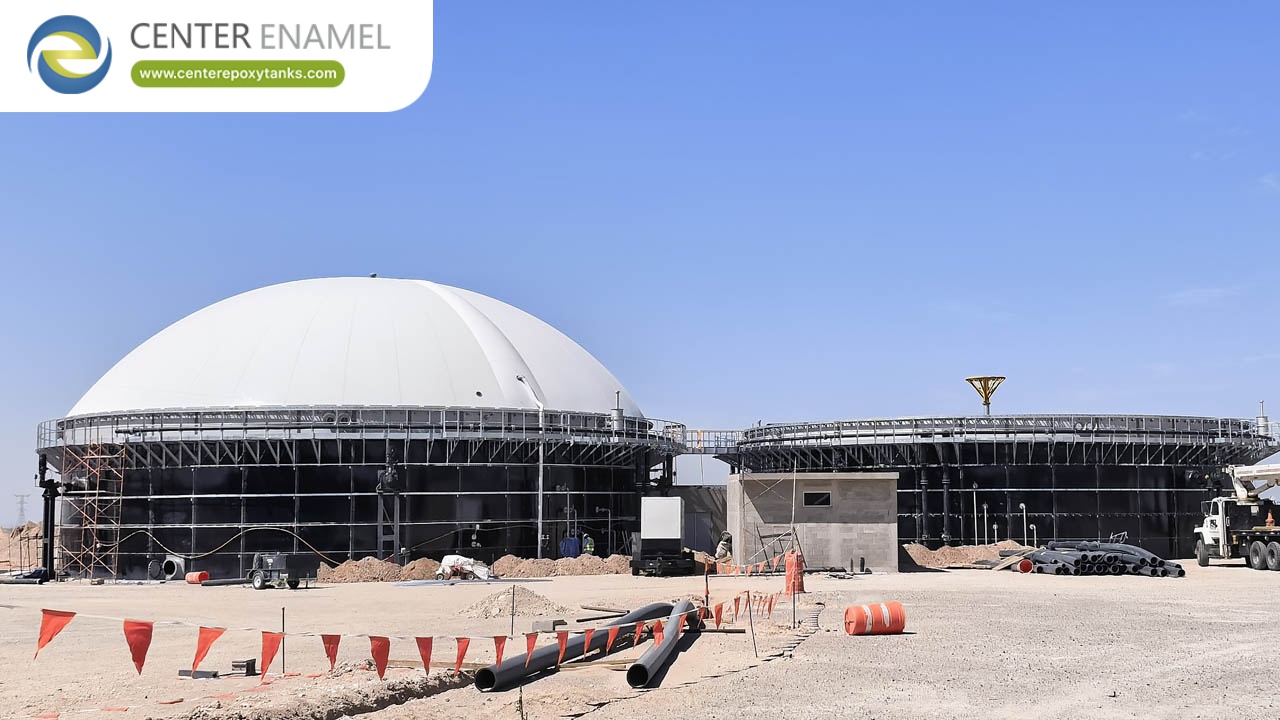

Today, membrane roofs for biogas digesters have revolutionized the waste-to-energy sector. By mounting a flexible, dual-layer membrane gas holder directly onto the top rim of the primary anaerobic digestion or post-digestion tank, these integrated systems combine liquid biological reaction and gas storage into a single, highly efficient containment footprint.
The Engineering Mechanics of Biogas Membrane Roofs
The structural design of a membrane roof requires sophisticated engineering to balance biological gas generation, internal structural pressures, and external environmental loads:
The Outer Membrane (Weather & Structural Shield): Fabricated from high-tenacity polyester fabric coated with specialized PVDF (Polyvinylidene Fluoride), the outer membrane maintains constant positive air pressure via an automated blower system. It protects the inner gas storage bladder from extreme wind shear, UV degradation, and heavy snow loads.
The Inner Membrane (Methane Gas Retention): Suspended securely inside the outer canopy, the inner membrane expands and contracts dynamically like a "variable lung," absorbing shifts in biological gas production without inducing back-pressure on the liquid digester.
The Bottom Sealing Membrane: For ground-mounted or tank-integrated installations, a robust base membrane or perimeter clamping profile hermetically seals the storage volume against the tank wall, ensuring zero leakage of methane or noxious odors.
High-Frequency Seam Welding: Membrane panels are fused using advanced high-frequency welding technology, producing molecular bonds that exceed the tensile strength of the base fabric and guarantee absolute gas-tight integrity.
Technical Performance Matrix: Biogas Digester Cover Technologies
Technical Parameter | Integrated Membrane Roof on GFS Digester | Traditional Fixed Concrete Cover | Standalone Steel Gas Holder + Separate Digester |
Spatial Footprint & Land Use | Compact, unified footprint; highly efficient for space-constrained sites | Requires extensive land area and complex external piping | Requires expansive acreage and dedicated foundation slabs |
Gas Leakage & Sealing Security | Direct tank-to-membrane seal eliminates intermediate pipe flange leaks | Prone to micro-cracking and gas seepage through porous concrete | Multiple mechanical joints and complex piping prone to fugitive leaks |
Corrosion & Chemical Resistance | Superior; glass-fused-to-steel tank walls and PVDF membranes resist $H_2S$ | High risk of concrete carbonation and biogenic sulfuric acid attack | Vulnerable to internal oxidation without intensive protective coatings |
Volume Flexibility & Buffering | Dynamic "variable lung" expansion matches fluctuating gas generation | Fixed-volume headspace with zero operational buffering flexibility | Fixed-volume storage requiring external pressure compensation |
Key Operational Advantages for Modern Biogas Plants
1. Capital Cost and Footprint Optimization
By integrating the gas holder directly onto the top of the digestion tank, project developers eliminate the need for a separate concrete foundation slab, dedicated gasometer land area, and long runs of specialized gas piping. This significantly reduces both capital expenditure (CAPEX) and civil engineering complexity.
2. Elimination of Biogenic Corrosion Headaches
Biogas is saturated with moisture and corrosive hydrogen sulfide (H2S). Integrated systems pair Glass-Fused-to-Steel (GFS) or epoxy-coated tank walls with chemically inert synthetic inner membranes. This ensures that every surface exposed to raw biogas is completely immune to sulfur oxidation and rust flaking.
3. Dynamic Pressure Regulation and Enhanced Safety
The continuous air-support pressure of the outer canopy ensures that the inner membrane maintains a steady, uniform delivery pressure for downstream Combined Heat and Power (CHP) engines or biogas upgrading units, preventing operational surging.
Frequently Asked Questions (FAQ)
Q: What are membrane roofs for biogas digesters?
A: These are advanced industrial containment systems that combine a primary anaerobic digestion tank with a flexible, dual-layer membrane gas holder mounted directly on top, serving the dual purpose of liquid fermentation and dynamic gas buffering.
Q: How does a membrane roof handle fluctuating biogas generation?
A: The inner membrane acts as a dynamic "variable lung," expanding and contracting smoothly within the protective outer air canopy to absorb peak gas production surges while maintaining stable delivery pressure for downstream generators.
Q: What materials protect the membrane from corrosive biogas and UV radiation?
A: The membrane utilizes high-tenacity polyester fabric coated with a specialized PVDF (Polyvinylidene Fluoride) top layer, providing exceptional resistance to ultraviolet degradation, self-cleaning weather shedding, and total chemical immunity against biogenic hydrogen sulfide (H2S) and moisture.
Q: Can a membrane roof be installed on an existing anaerobic digestion tank?
A: Yes. With proper structural verification of the existing tank rim and wall load capacity, modular membrane roofs can often be retrofitted onto existing concrete or steel digester tanks to upgrade gas storage capacity.
