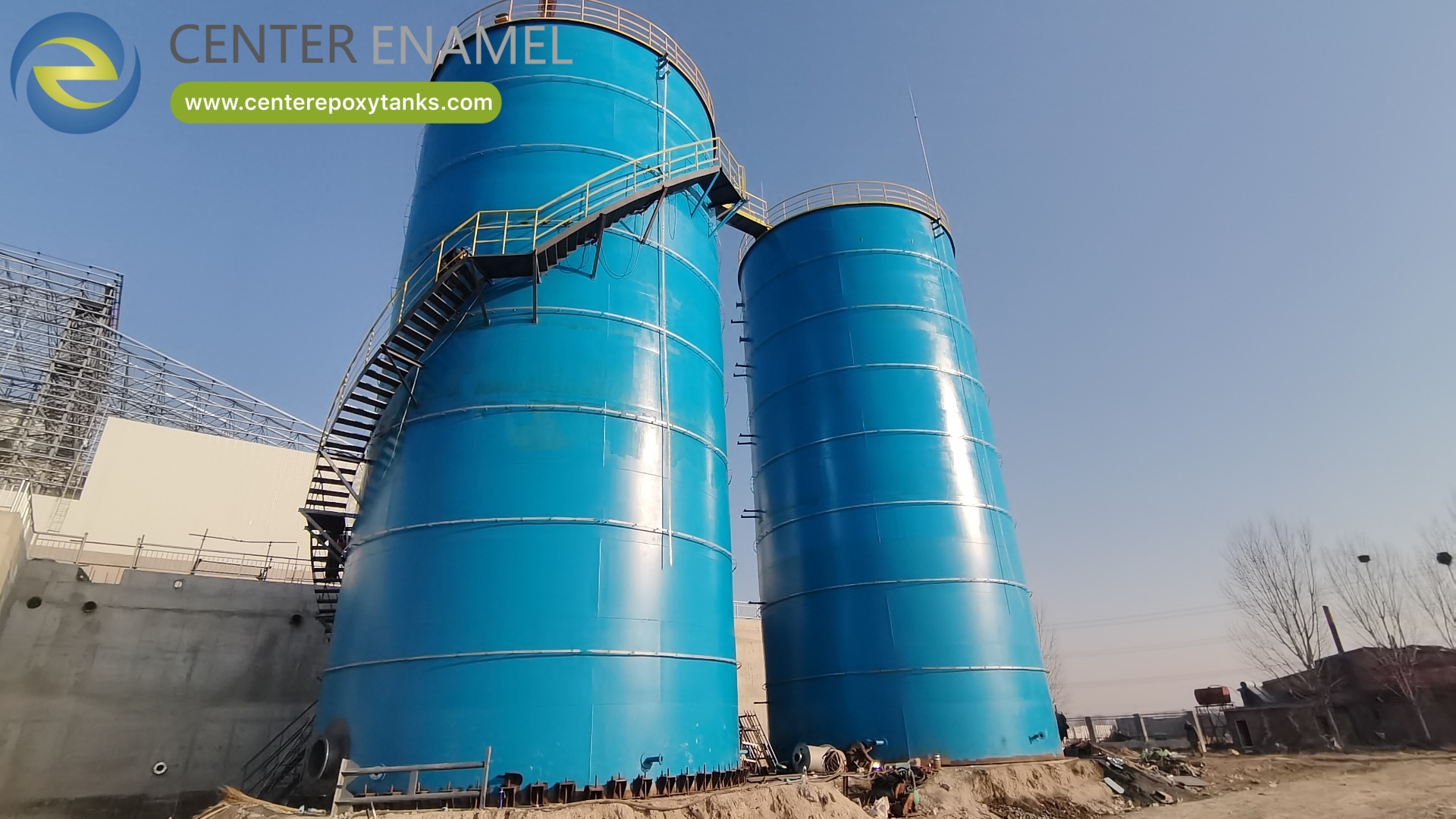

Carbon Steel Flammable Liquid Storage Tanks Manufacturer


Carbon Steel Flammable Liquid Storage Tanks: Manufacturer Capabilities

A flammable liquid storage tank is manufactured to a code and accepted against evidence. The code sets the design and the construction; the fire and environmental rules set the layout and the containment; and the manufacturer’s capability — the certifications, the welding quality and the inspection regime — is what proves the tank was built the way the code requires.

This article covers carbon steel flammable liquid storage tank manufacturing: the code compliance, the venting and grounding provisions, the coating and inspection regime and the capability evidence a buyer should require.

Flammable Liquid Service

Flammable liquid service is defined by the flash point of the stored product. The classification drives the design pressure, the venting, the containment and the fire protection — a tank for a Class I liquid is a different specification from a tank for a Class III oil.

The service definition happens at procurement: the product data sheet is the first engineering document, and the manufacturer can only build the tank the specification describes.

Code Compliance

The code compliance covers the tank design and construction to the storage tank standard, the layout and fire protection to the fire code, and the environmental containment and detection to the environmental rules. The manufacturer works to the assembled specification.

The compliance evidence is the documentation: the design report, the material certificates, the welding and NDT records and the test results, assembled into the file the inspection and the insurer will ask for.

Code Area

Requirement

Manufacturer Evidence

Tank design and construction

Design to the storage tank standard

Design report and construction records

Venting and emergency venting

Vent capacity for the filling and fire cases

Vent sizing calculation and device certificates

Grounding and bonding

Static dissipation on the tank and fittings

Bonding continuity test record

Containment and detection

Secondary containment and leak detection

Containment verification and detection commissioning



Venting And Grounding

The venting set covers the normal breathing and the emergency case. The normal vents are sized from the filling and emptying rates; the emergency vent covers the fire exposure case, and the two are coordinated so neither compromises the other.

The grounding and bonding dissipates the static the fuel movement generates. The continuity is verified by test, and the record is part of the delivery documentation — because an unbonded tank is a code failure regardless of how well it was welded.

Coating Systems

The coating systems follow the product and the atmosphere. The internal system is selected against the stored product chemistry; the external system follows the atmosphere and the UV exposure, with the specification stating both.

The coating also carries a fire interface consideration: the external coating system is selected for its compatibility with the fire protection provisions, and the specification names the system and its testing.

Coating Zone

System

Testing

Internal product side

Coating rated for the stored product

Thickness, adhesion and holiday testing

Vapour space

Material or coating for the warm vapour

Material certificate or coating record

External surface

Atmospheric and UV rated system

Thickness and adhesion testing

Fire interface areas

System compatible with fire protection

Compatibility statement and testing



Inspection Regime

The inspection regime follows the code: the radiographic extent on the shell welds, the magnetic particle testing on the attachments, the vacuum or leak testing of the bottom and the dimensional verification of the erected tank.

The inspection records are the buyer’s baseline: they state what was tested, by whom and to what criterion, and they are the reference the in-service inspection regime compares against for the life of the tank.

Welding Quality

The welding quality is the procedure and the people. The welding procedure specifications with their qualification records cover each joint geometry, and the welder qualifications cover each welder within a stated range.

The welding records close the loop: the weld map, the procedure references and the inspection results together show which weld was made by which procedure and how it was verified.

Documentation

The documentation pack for a flammable liquid tank is a regulatory asset: the design report, the material certificates, the welding and NDT records, the coating records, the test results and the as-built drawings.

The pack also covers the code compliance demonstrations: the vent sizing, the grounding continuity, the containment verification and the fire protection commissioning, assembled as the compliance file.

Safety Systems Integration

The safety systems integration covers the tank and the installation: the venting and emergency venting, the grounding and bonding, the fire protection connections and the instrumentation the monitoring regime requires.

The integration is specified with the tank: the connection sizes, the positions and the ratings are all part of the tank documentation, so the installation engineering starts from a complete interface definition.

Testing And Acceptance

The testing and acceptance happen before service: the weld inspection to the code extent, the bottom leak test, the shell dimensional verification and the coating verification, each with an acceptance criterion and a record.

The acceptance is a documentation event as much as a physical one: the test results and the records are what the buyer accepts against, and the tank is not complete until the file is complete.

Delivery And Site Support

The delivery covers the tank, the fittings and the documentation, with the erection support the installation requires. The export delivery adds the logistics and the customs documentation to the scope.

The site support covers the erection supervision, the inspection coordination and the commissioning assistance — the manufacturer’s presence where the tank is being accepted into service.

Center Enamel Flammable Service Fabrication

Center Enamel fabricates carbon steel flammable liquid storage tanks with the code compliance, welding quality, coating systems and documentation that flammable service requires. The fabrication runs under a certified quality system with export delivery experience.

Our engineering team supports specification assembly, venting and grounding design and the compliance file for flammable liquid projects. Contact our engineering team for manufacturer capability documentation and quotation on your next tank.

About Company

Shijiazhuang Zhengzhong Technology Co.,Ltd(Center Enamel) is a professional manufacturer dedicated to the design and fabrication of bolted storage tanks since 2008. Our products range includes Glass-Fused-to-Steel (GFS) tanks, fusion bonded epoxy tanks, stainless steel tanks, galvanized steel tanks and aluminum geodesic dome roofs. With professional enameling R&D team and nearly 200 enameling patents, Shijiazhuang Zhengzhong Technology Co.,Ltd has become the leader in bolted tanks industry of Asia. Our products are certified to ISO9001, NSF61, EN1090, ISO28765, WRAS ,FM, LFGB, BSCI, IS0 45001 and other international standards.

Shijiazhuang Zhengzhong Technology Co., Ltd is not only the first manufacturer in China which produces Glass-Fused-to-Steel tanks, but also the most experienced professional bolted tanks manufacturer in Asia.The engineering & design, product testing and quality system of Center Enamel Glass-Fused-to-Steel tanks is in strict accordance with AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61, NFPA and other international standards. Until 2023, Center Enamel bolted tanks have been exported to more than 100 countries including USA, Australia,Canada, Malaysia, Indonesia, Russia, UAE, Panama,Brazil and South Africa etc., the superior tank quality and prompt service gains us worldwide recognition.

As an outstanding containment and cover system provider with decades of industry experience, Shijiazhuang Zhengzhong Technology Co., Ltd sincerely expects to establish long-term cooperation with the local partners throughout the world and make continuous contribution to the development of the industry.

Suggested CTA

Center Enamel delivers carbon steel welded engineered for flammable liquid storage duty, with flammable service fabrication and compliance. Contact our engineering team for manufacturer capability and quotation on your next carbon steel flammable liquid storage tanks project — including sizing, standards compliance and delivery scheduling.

Frequently Asked Questions

Q: What code governs flammable liquid storage tanks?

A: The storage tank standard for design and construction, the fire code for layout and protection, and the environmental rules for containment and detection. The project specification assembles the applicable editions into the requirement.

Q: What venting does a flammable liquid tank need?

A: Normal vents sized from the filling and emptying rates, plus emergency venting for the fire exposure case, coordinated so neither compromises the other. The vent sizing calculation and device certificates are part of the documentation.

Q: Why is grounding tested and recorded?

A: Fuel movement generates static, and the bonding continuity dissipates it. An unbonded tank is a code failure regardless of weld quality, so the continuity test record is part of the delivery documentation.

Q: What inspection regime applies to the shell?

A: Radiographic testing to the code extent on the shell welds, magnetic particle testing on the attachments, bottom leak testing and dimensional verification of the erected tank — each with an acceptance criterion and a record.

Q: What documentation comes with a flammable liquid tank?

A: Design report, material certificates, welding and NDT records, coating records, test results, as-built drawings, and the compliance demonstrations — vent sizing, grounding continuity, containment verification and fire protection commissioning.

Q: Why choose Center Enamel for flammable liquid tanks?

A: Center Enamel fabricates flammable liquid tanks with code compliance, welding quality and the documentation the service requires. Contact our engineering team for capability documentation and quotation.
