Floating Roofs for Oil Refinery Storage Tanks: Engineering & Design Guide
In the midstream and downstream oil and gas sector, the storage of volatile products—such as crude oil, gasoline, and naphtha—presents two major challenges: product loss through evaporation and the safety risks associated with flammable vapor accumulation. Floating roofs are the industry-standard solution designed to address these challenges by effectively eliminating the vapor space between the stored liquid and the tank roof.
By rising and falling with the liquid level, floating roofs create a physical seal that suppresses VOC (Volatile Organic Compound) emissions, minimizes fire hazards, and preserves product quality.
1. Engineering Classifications: IFR vs. EFR
Refinery storage design is governed primarily by API 650 (Welded Tanks for Oil Storage), which distinguishes between Internal Floating Roofs (IFR) and External Floating Roofs (EFR) based on the tank’s environment and operational requirements.
Internal Floating Roofs (IFR)
An IFR is utilized within a tank that already features a fixed roof (often a cone roof or an aluminum geodesic dome).
● Purpose: The fixed roof provides environmental protection (shielding against rain, snow, and wind), while the floating roof traps the vapors beneath it.
● Common Design: Often lightweight, constructed from aluminum or stainless steel panels with tubular or honeycomb buoyancy pontoons.
● Best For: Aviation fuel, jet fuel, and high-purity chemical storage where water contamination must be strictly prevented.
External Floating Roofs (EFR)

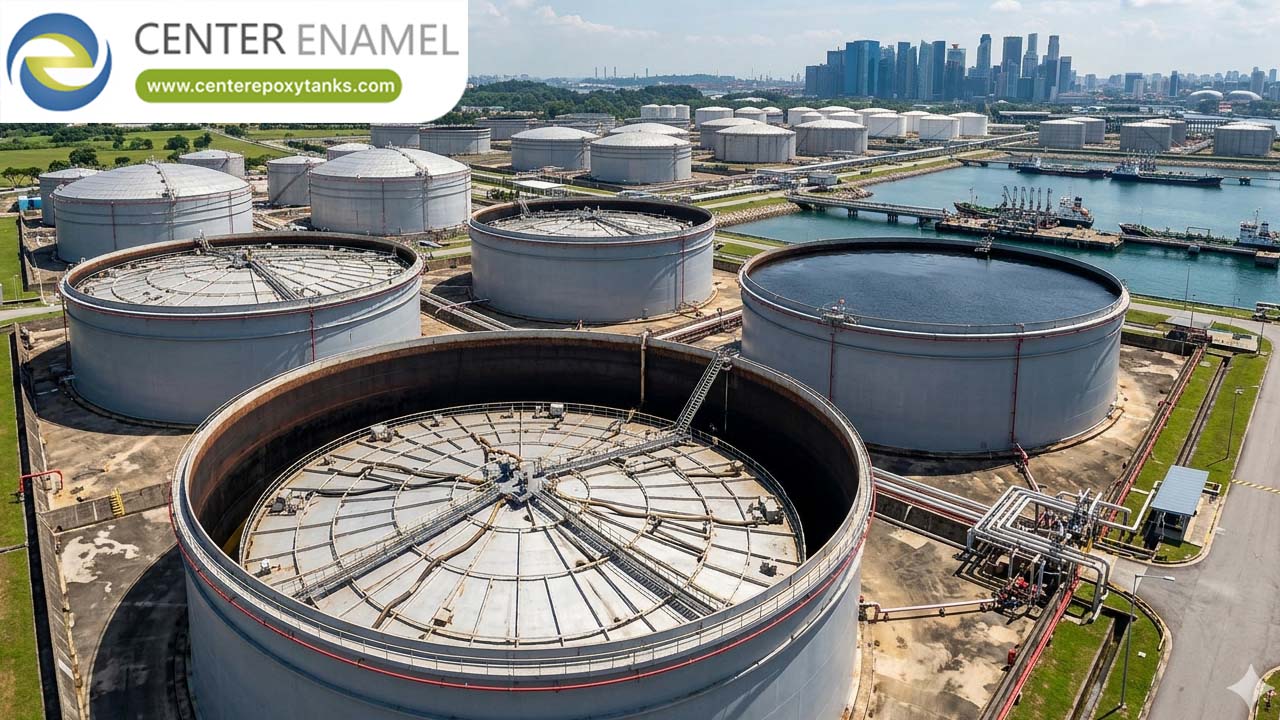

An EFR is installed in an open-top cylindrical tank, meaning the roof is exposed directly to the elements.
● Purpose: Designed for heavy-duty, high-capacity crude oil storage.
● Common Design: Heavy welded carbon steel construction, featuring complex structural pontoons or double-deck designs to ensure buoyancy even if a compartment is breached.
● Best For: Massive terminal tanks and crude oil refineries.
2. Emissions Control & Thermodynamic Modeling
The primary driver for floating roof adoption is environmental compliance and economic efficiency. The "vapour space" in a fixed-roof tank allows lighter hydrocarbons to evaporate, resulting in significant product loss.
Refineries utilize EPA AP-42 methodologies to calculate total emissions ($L_T$) from floating roof tanks. The calculation is segmented into three primary loss mechanisms:
● Rim Seal Loss: Emissions occurring at the annular gap between the floating roof and the tank shell.
● Withdrawal Loss: Emissions from liquid clinging to the tank wall as the liquid level drops (the "wetting" effect).
● Deck Fitting Loss: Emissions from roof penetrations (e.g., guide poles, gauge wells, ladder supports).
Engineering Optimization: By utilizing high-efficiency secondary seals and low-emissivity deck coatings, refineries can achieve emission reduction efficiencies exceeding 98% compared to fixed-roof atmospheric storage.
3. Structural Comparison Matrix
For facility engineers, selecting the right roof architecture involves balancing structural requirements against long-term maintenance costs.
Feature | Internal Floating Roof (IFR) | External Floating Roof (EFR) |
Environmental Exposure | Sheltered by fixed roof | Exposed to rain/snow/UV |
Maintenance | Minimal (No weather-related damage) | High (Requires rain drainage systems) |
Buoyancy Design | Lightweight (Aluminum/Honeycomb) | Heavy (Steel Pontoon/Double-Deck) |
Operational Risk | Low (Internal protection) | Moderate (Risk of sinking if drains clog) |
Cost | Lower (Lighter materials) | Higher (Heavy structural steel) |
4. Critical Operational & Safety Components
A floating roof is only as effective as the mechanical components that integrate it with the tank shell.
● Rim Seal Systems: The mechanical seal is the "living edge" of the roof.
○ Primary Seal: Usually a metallic shoe seal that exerts mechanical pressure against the tank wall.
○ Secondary Seal: A wiper or rim-mounted seal that provides a redundant barrier and acts as a weather shield to keep debris out of the primary seal.
● Drainage Systems (EFR Only): Because EFRs are open to the sky, rainwater accumulates on the roof. An articulated drainage pipe (or flexible hose system) is required to transport water off the roof and out of the tank without allowing hydrocarbon leakage.
● Anti-Rotation Systems: Guide poles or cable systems are critical to ensure the roof does not rotate or tilt due to wind shear or liquid turbulence, which could result in a mechanical bind or "hanging" of the roof.
Frequently Asked Questions (FAQ)
Q: Can a floating roof tank be retrofitted into a fixed-roof tank?
A: Yes. This is a common refinery upgrade. By installing an internal floating roof (IFR) into an existing fixed-roof tank, refineries can drastically reduce their VOC emissions profile without the massive capital expenditure of building new tanks.
Q: What is the risk of a floating roof "sinking"?
A: This is primarily a concern for External Floating Roofs (EFR). If the primary roof drains clog during a heavy rainstorm, water weight can overcome the buoyancy of the roof. Modern EFR designs include emergency drain-slots on the pontoons that allow water to bypass the roof and enter the product, preventing the catastrophic sinking of the structure.
Q: Why do we need guide poles?
A: Guide poles serve two functions: they prevent the roof from rotating (keeping it concentric with the tank shell) and provide a controlled path for the roof to rise and fall. Furthermore, they are often slotted to function as sampling ports for refinery lab technicians to test product density without opening the tank to the atmosphere.
