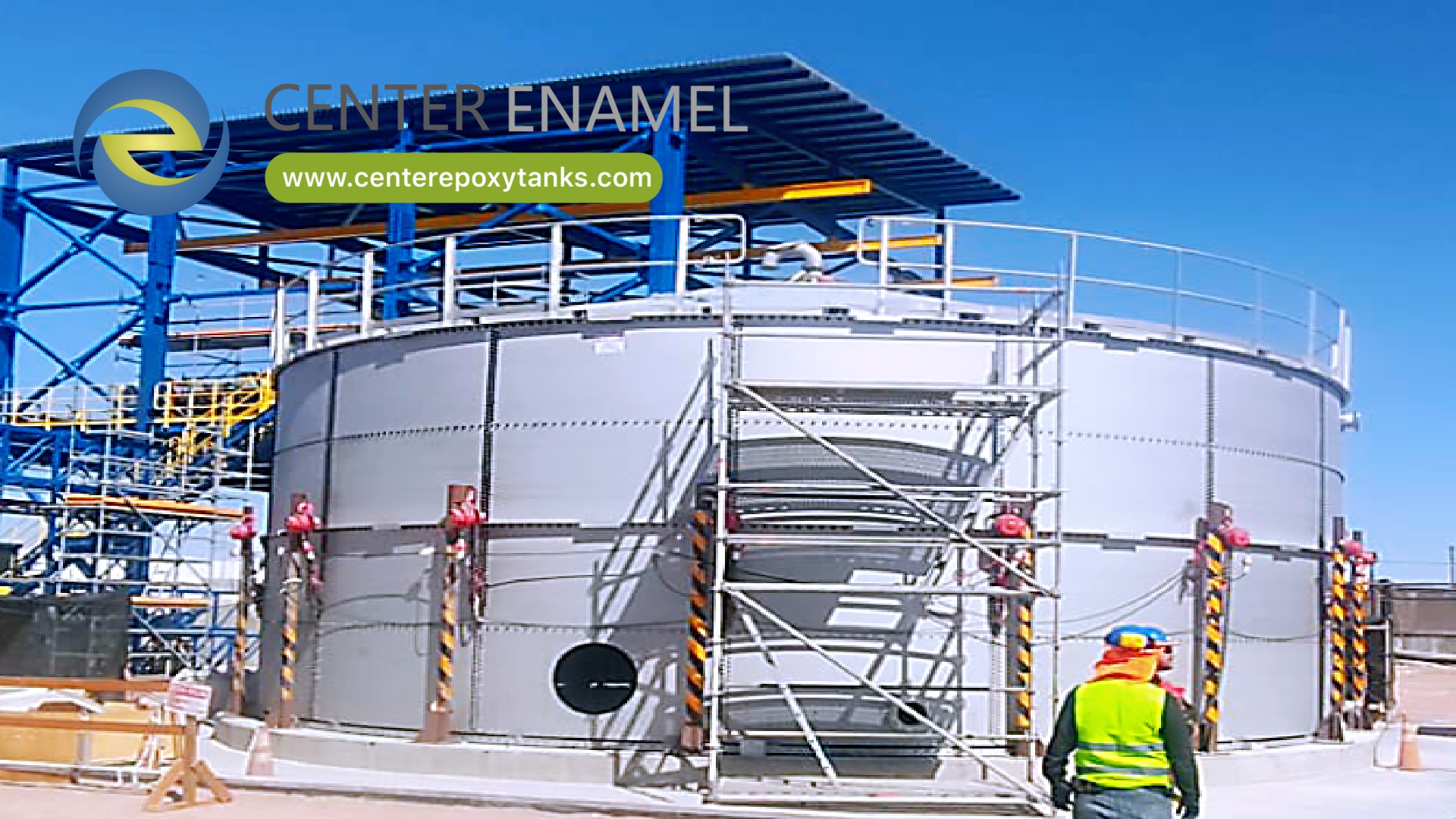

In the global shift toward renewable energy, the Transesterification of Biodiesel stands as a critical chemical process. Success in this sector depends on the structural and chemical integrity of the reactor vessel. Shijiazhuang Zhengzhong Technology (Center Enamel), a premier China 304 Stainless Steel Tank Manufacturer, provides the specialized containment solutions required to convert triglycerides into high-purity Fatty Acid Methyl Esters (FAME).
To assist engineering firms and procurement officers, the following "Quick Specs" outline our standard compliance for transesterification vessels.
● Primary Material: Certified ASTM A240 304/304L Stainless Steel
● Process Focus: Base-catalyzed transesterification (NaOH/KOH)
● Temperature Range: Optimized for 60°C – 80°C (140°F – 176°F)
● Standard Compliance: ASME Section VIII, API 650, AWWA D100
● Safety Rating: Compatible with ATEX/IECEx explosion-proof (EX) agitation
● Roof System: Specialized Aluminum Dome Roofs for moisture and UV protection
Choosing the correct alloy is a balance of CAPEX and feedstock acidity. While 304 Stainless Steel is the industry standard for refined oils, certain high-acidity processes require an upgrade.
Process Variable | 304 Stainless Steel | 316L Stainless Steel |
Feedstock (FFA %) | Low ($<0.5%$) - Refined Oils | High (>2.0%) - Waste Cooking Oil |
Primary Catalyst | NaOH / KOH (Bases) | H2SO4 (Acids) |
Corrosion Defense | Standard Passive Oxide Layer | Molybdenum-enhanced Pitting Resistance |
Strategic Use | Cost-effective for standard FAME | Essential for Waste-to-Energy |
For a Base-catalyzed transesterification vessel, using carbon steel introduces significant risks to product stability.
Metric | 304 Stainless Steel | Carbon Steel (Lined) |
Product Purity | High: No risk of iron leaching. | Risk: Iron catalyzes fuel oxidation. |
Lifecycle Cost | Lower: 30+ year service life. | Higher: Frequent lining repairs. |
Sealing Integrity | Monolithic Welded Seal. | Vulnerable to lining delamination. |
Resale Value | High scrap value/Recyclable. | Minimal. |
Center Enamel’s reactors are engineered to optimize the kinetics of the biodiesel reaction.
The efficiency of a Biodiesel Batch Reactor is measured by its ability to separate byproducts. We utilize a conical bottom configuration to facilitate the rapid settling of heavy glycerin.
● Heating Integration: Equipped with internal steam coils or external dimple jackets to maintain a constant 60°C – 80°C, preventing soap formation.
● Agitator Support: Heavy-duty bridges designed for high-torque mixers, essential for homogenizing the alcohol/catalyst mixture with viscous oils.
For large-scale storage and settling, our Aluminum Dome Roofs provide a lightweight, vapor-tight seal. This prevents rainwater ingress, which can trigger hydrolysis and increase the acid value of the finished biodiesel.
Biodiesel production involves flammable methanol, requiring specialized explosion-proof engineering.
● Explosion-Proof (EX) Engineering: Our tanks support motors rated for Zone 1 or Zone 2 hazardous locations.
● Vapor Management: Integration of Pressure-Vacuum Relief Valves (PVRV) and emergency venting to safely manage methanol vapors.
● Static Dissipation: Dedicated grounding lugs for electrical bonding, mitigating static discharge risks during high-speed mixing.
As a recognized China 304 Stainless Steel Tank Manufacturer, Center Enamel supports the rapid expansion of biodiesel infrastructure in high-growth markets.
● Southeast Asia: We provide high-humidity resilient 304 vessels for palm oil and WCO processing in Indonesia, Malaysia, and Thailand.
● India: Our tanks meet the rigorous ASME and ISO standards required for India’s national 20% biodiesel blending roadmap.
● International Logistics: Specialized crating and passivation treatments ensure zero surface contamination during maritime transit.
Q1: Is 304 stainless steel resistant to methanol?
A: Yes. It offers excellent resistance at typical process temperatures (60°C–80°C), ensuring no impurities are leached into the recovered methanol.
Q2: Can this tank be used for Waste Cooking Oil (WCO)?
A: Yes, if the FFA content is low. For raw, high-acid WCO, we recommend 316L Stainless Steel to prevent acid-induced pitting.
Q3: How is the separation of glycerin managed?
A: Our conical bottom design and interface monitoring (sight glasses) allow for the gravity-driven removal of the denser glycerin phase from the FAME.
