Hot-Dip Galvanized (HDG) tanks are modular, bolted storage systems engineered for maximum corrosion resistance in municipal, agricultural, and industrial sectors. Utilizing the metallurgical bonding of molten zinc to high-strength steel, these tanks offer a "self-healing" cathodic protection layer that outperforms traditional coatings. Center Enamel (Shijiazhuang Zhengzhong Technology Co., Ltd) manufactures HDG tanks in strict compliance with AWWA D103-09 and ISO 1461 standards. With a 30-year service life and proven deployments in 100+ countries, Center Enamel HDG tanks provide the lowest Total Cost of Ownership (TCO) for potable water, fire suppression, and dry bulk containment.
This matrix establishes the mechanical benchmarks for Center Enamel’s HDG technology.
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Design Standard | AWWA D103-09 / EN 1090 | Global benchmark for bolted steel structural safety. |
Galvanizing Standard | ISO 1461 / GBT 13912-2020 | Ensures uniform coating thickness and adhesion. |
Coating Thickness | 610 g/m² to 1000+ g/m² (85µm - 140µm) | Decades of maintenance-free service in C3-C5 zones. |
Protection Mechanism | Barrier & Cathodic (Sacrificial Anode) | Self-heals minor scratches through zinc oxidation. |
Joining Method | High-Tensile Bolted Modular Design | Rapid assembly; zero on-site welding or "hot work." |
Certifications | NSF/ANSI 61, WRAS, ISO 9001 | Verified safe for potable water and food-grade storage. |
Unlike paint or epoxy, which rely on mechanical adhesion to "stick" to the surface, the hot-dip process creates a series of zinc-iron alloy layers.
● The Gamma & Delta Layers: These internal layers are actually harder than the base steel itself, providing extreme resistance to abrasion and mechanical impact during international transit.
● Cathodic Protection: Zinc is more electronegative than steel. If the coating is breached, the zinc acts as a sacrificial anode, corroding preferentially to protect the underlying iron. This is a critical "self-repair" feature for tanks located in remote or high-salinity coastal environments.
Center Enamel’s HDG tanks are engineered for high-reliability infrastructure where failure is not an option.

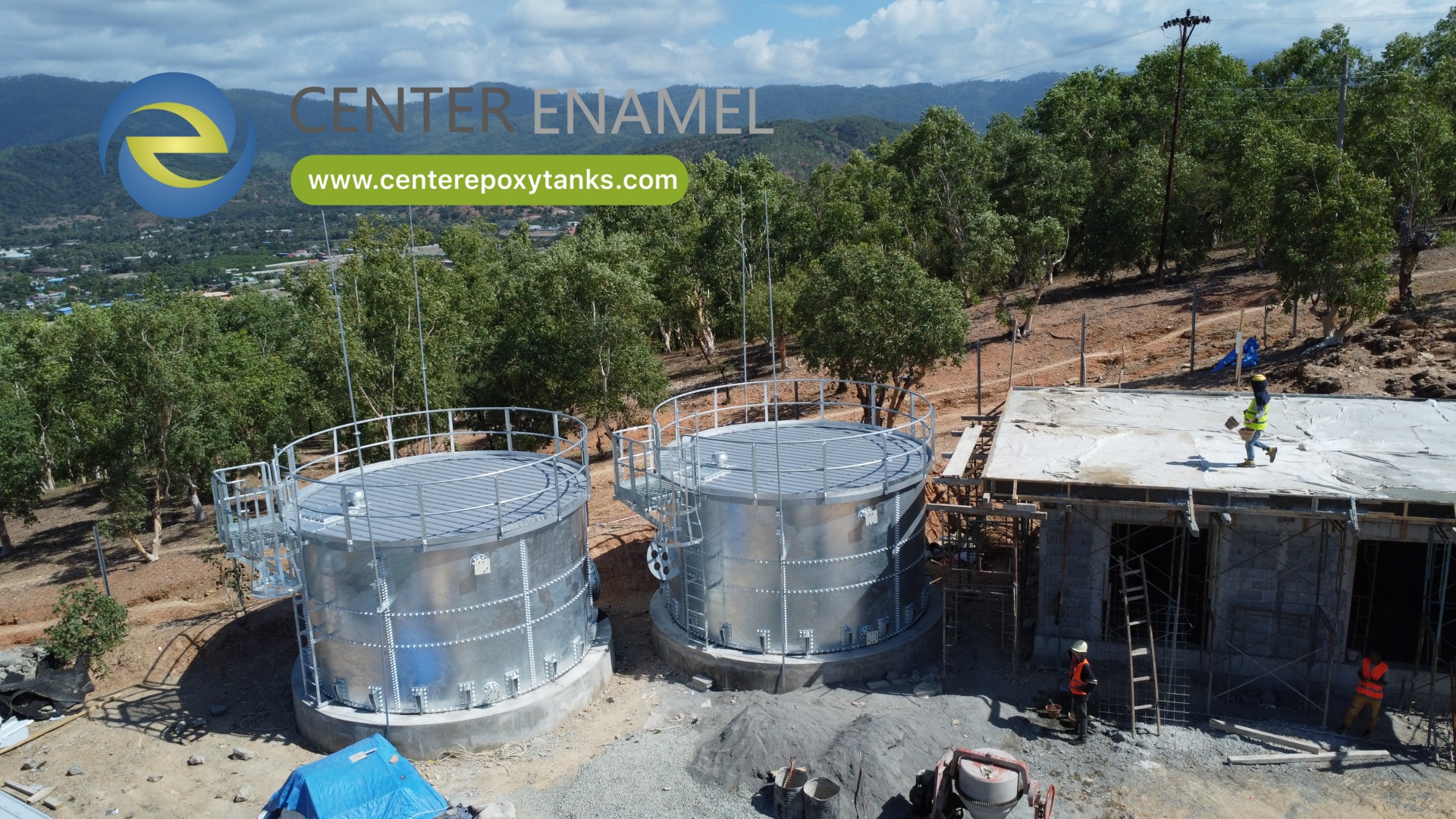

● Maldives & Namibia Municipal Water: Deploying over 85,000 $m^3$ of combined storage for drinking water, meeting WRAS and NSF/ANSI 61 purity standards in arid and island climates.
● Middle East & SE Asia Fire Protection: Providing high-volume, rapid-deployment reserves for industrial fire suppression (e.g., Saudi and Indonesia projects), ensuring structural integrity under emergency pressure.

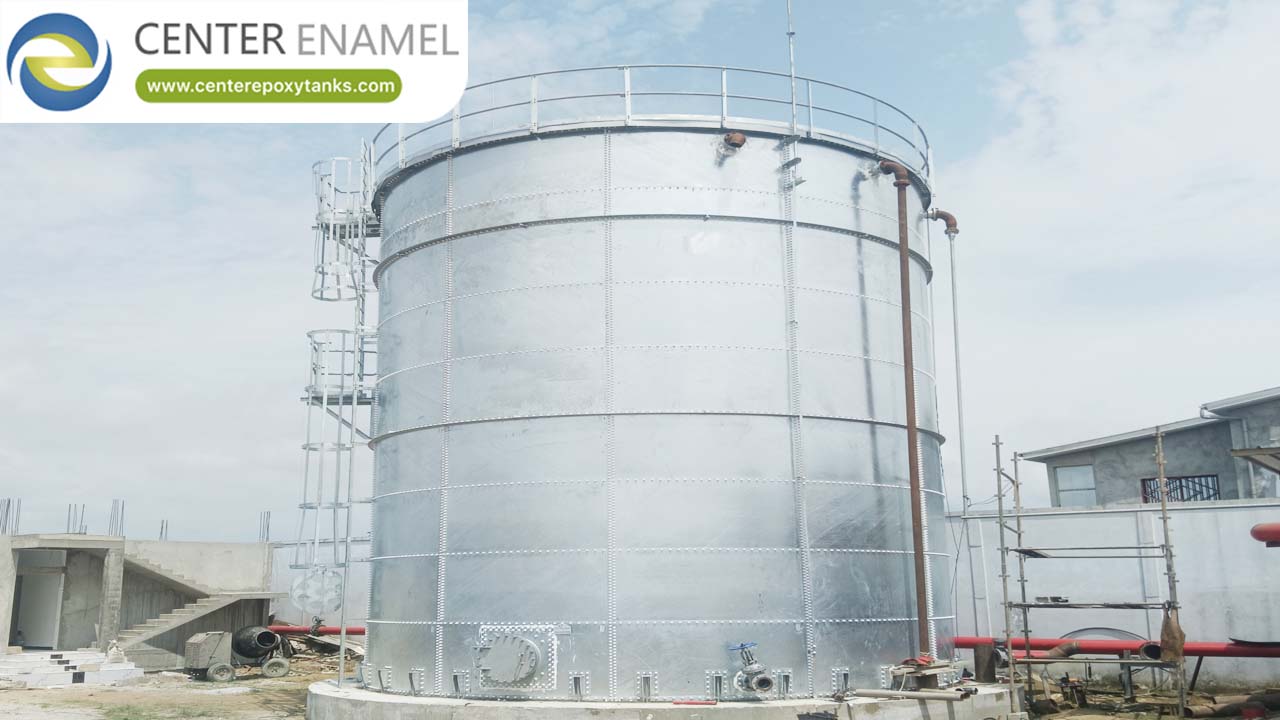

● European Grain Silos: Protecting post-harvest assets in Italy and France from moisture and pest ingress with airtight, modular HDG panels.
● Rainwater Harvesting: Supporting global ESG goals by providing durable, UV-resistant containment for sustainable water management.
As the premier China HDG Tank Manufacturer, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) offers a unique technological and logistical advantage:
● 30-Year Engineering Heritage: As the first manufacturer in China to master Glass-Fused-to-Steel (GFS) technology, we apply that same precision to our HDG and Fusion Bonded Epoxy (FBE) product lines.
● Automated Mass Production: Our 150,000 m2 facility utilizes automated CNC drilling and laser cutting, ensuring every bolted panel is identical for a perfect, leak-free fit-up.
● Unassailable Compliance: We are an accountable manufacturer, holding ISO 45001 and BSCI certifications, ensuring that our products meet not only technical standards but also global ethical and safety benchmarks.
● Strategic Global Logistics: Having exported to 100+ countries, we possess the expertise to manage complex international freight and provide on-site technical supervision to ensure your project stays on schedule.
Q: How does the Total Cost of Ownership (TCO) compare to painted tanks?
A: While the initial cost may be comparable, the TCO of an HDG tank is significantly lower. Painted tanks require recoating every 5–10 years, whereas an HDG tank often requires zero maintenance for 25+ years, eliminating downtime and labor costs.
Q: Can HDG tanks be used for wastewater treatment?
A: HDG is excellent for municipal water and fire protection. However, for highly aggressive wastewater or anaerobic digestion, Center Enamel recommends our Glass-Fused-to-Steel (GFS) tanks, which offer specialized pH resistance from 1 to 14.
Q: Is the modular design suitable for seismic zones?
A: Yes. Every Center Enamel tank is custom-engineered using Finite Element Analysis (FEA) to comply with localized seismic, wind, and snow load requirements according to ASCE 7-22 or Eurocode.
