Advanced Oil & Gas Storage: Double-Layer Roofing & Floating Roof Systems
In the high-stakes petrochemical sector, secure and efficient containment is a prerequisite for operational safety and environmental stewardship. Center Enamel, a global leader with 30+ years of expertise, engineers advanced storage solutions that integrate Double-Layer Protective Roofing and Floating Roof Systems. These technologies are specifically designed to eliminate "vapor space," mitigate fire hazards, and ensure 100% compliance with evolving ESG (Environmental, Social, and Governance) mandates.
Interactive Specifications: Oil & Gas Series
Engineered for Refinery, Terminal, and Strategic Reserve Applications.
Parameter | Technical Specification | Engineering Advantage |
Storage Capacity | Up to 100,000 m3 | Supports massive industrial-scale reserves. |
Standard Compliance | API 650 / API 620 / UL 142 | Guaranteed global safety and insurance compliance. |
Coating System | Multi-layer C5-M High-Durability Epoxy | Marine-grade corrosion protection for coastal sites. |
Operating Temp. | -50°C to +200°C | Suitable for cryogenic LNG or heated heavy crude. |
Vapor Control | Internal & External Floating Roofs | Reduces evaporative losses by up to 98%. |
Compliance & Safety Engineering: API & UL Standards
We don’t just manufacture tanks; we engineer mission-critical systems that meet the world’s most rigorous petrochemical benchmarks.
1. API 650: Welded Steel Tanks for Oil Storage
● Annex H (Internal Floating Roofs - IFR): Our IFRs utilize high-grade aluminum or stainless steel skins with peripheral seals designed to remain liquid-tight during rapid filling/emptying cycles.
● Annex C (External Floating Roofs - EFR): For open-top tanks, our designs focus on structural buoyancy and integrated drainage, ensuring stability under heavy rainfall and cyclonic wind loads.
2. API 620 & UL 142
● API 620 Compliance: For low-pressure storage (LNG/petrochemical intermediates), we utilize specialized FBE coatings and low-temperature carbon steel to prevent brittle fracture under pressure.
● UL 142 Certification: For shop-fabricated tanks, our double-wall construction eliminates the need for concrete dikes, reducing onsite footprint and CAPEX.
Seal Technology: The Critical Safety Barrier
The peripheral seal is the primary defense against VOC emissions and fire hazards. Failure at this junction leads to environmental penalties and ignition risks.
● Mechanical Shoe Seals (Metallic): Ideal for EFR crude storage. Provides a robust, fire-resistant metallic barrier that maintains contact despite shell irregularities.
● Liquid-Mounted Resilient Seals (Soft): Engineered for IFR refined products (Gasoline/Jet Fuel). This foam-filled envelope eliminates vapor space entirely, suppressing ignition sources.
● Secondary Seals: We implement EPA-grade wiper seals that reduce remaining emissions by an additional 95%.
Strategic Engineering: IFR vs. EFR Comparison
Feature | Internal Floating Roof (IFR) | External Floating Roof (EFR) |
Weather Protection | Superior. Fixed roof shields from rain/snow. | Moderate. Requires advanced drainage systems. |
Vapor Loss | Minimal. Protected from wind-vacuum effects. | Low. Dependent on high-performance seals. |
Best Use Case | Refined products (Jet Fuel/Gasoline). | Large-diameter crude oil (Strategic reserves). |
Fire Safety | High. Fixed roof prevents lightning contact. | Moderate. Requires shunts and grounding. |
Vapor Control and ESG Compliance: Methane Abatement
To align with Net Zero 2026 targets, Center Enamel tanks are optimized as primary tools for Methane Abatement.
● VOC Reduction Efficiency: Our IFR systems reduce evaporative losses by up to 98%. For a 10,000 m3 gasoline tank, this can reduce annual VOC loss from 50,000 kg to under 1,000 kg.
● Carbon Credit Integration: Our tanks are compatible with real-time Optical Gas Imaging (OGI), allowing operators to quantify abatement for VCS (Verified Carbon Standard) reporting and Green Bond financing.
Field Case Study: Mozambique Coastal Retrofit (March 2025)
The Challenge: An existing welded diesel tank in a high-salinity coastal zone faced structural roof decay from tropical cyclones.

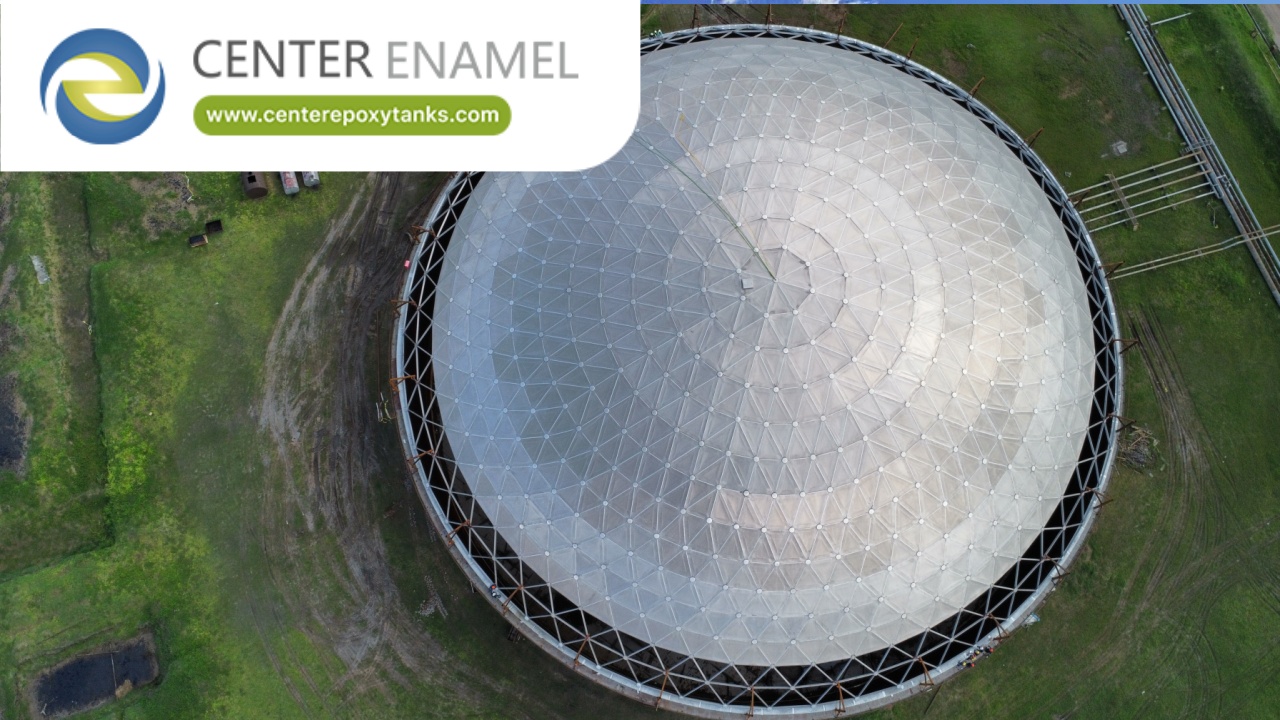

The Solution: Installation of a 72.39m Aluminum Geodesic Dome.
The Result: * Zero Maintenance: 6000-series aluminum alloy ensures a 30+ year life without repainting.
● Retrofit Success: The lightweight dome was installed on an existed welded tank without requiring foundation reinforcement.
● Safety: Engineered to withstand cyclonic wind loads common to the Mozambique Channel.
Technical QA & Verification: Zero-Failure Protocols
● Vacuum Box Testing: Verifies 100% impermeability of floor welds (API 650 Annex B).
● Radiographic Testing (RT): X-ray inspection of butt-welded shell joints to detect internal porosity.
● Ultrasonic Thickness Gauging (UT): Precision measurement of FBE coating to ensure 200–400 micron consistency.
● High-Voltage Holiday Testing: Detects microscopic pinholes in the epoxy lining to eliminate corrosion paths.
Technical FAQ
Q: How does a double-layer roof improve thermal insulation for LNG? A: It creates an insulated interstitial space (often perlite-filled or nitrogen-purged) that drastically reduces Boil-Off Rate (BOR), maintaining cryogenic temperatures while providing a secondary pressure boundary.
Q: Why use Aluminum Geodesic Domes for Oil & Gas? A: Aluminum is 100% recyclable, corrosion-resistant, and clear-spans large diameters without internal columns, making it the most sustainable and efficient choice for large-scale tank covers.
Optimize Your Energy Assets
Partner with Center Enamel for certified, durable, and ESG-compliant containment.
