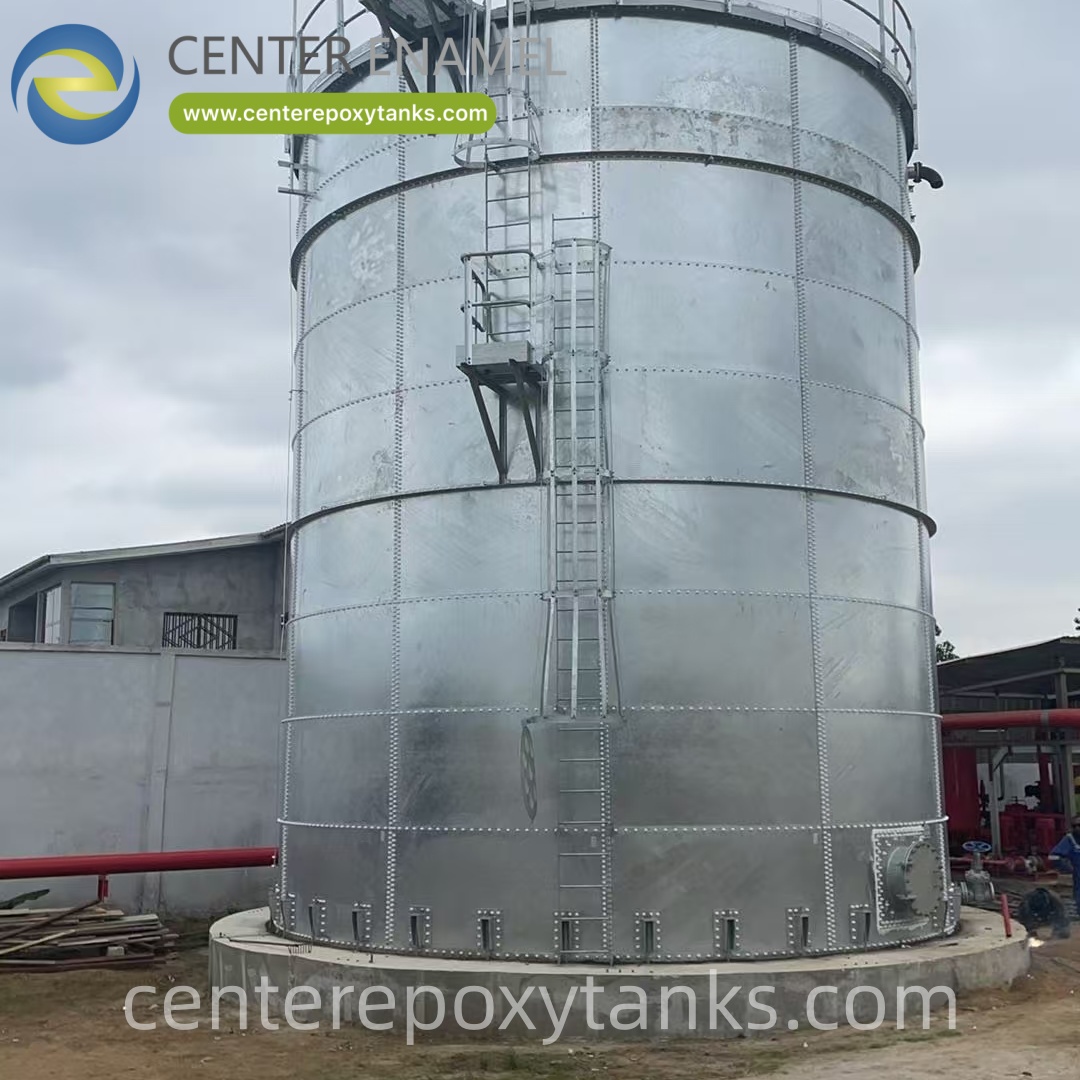

Hot-Dip Galvanized Water Tanks: Engineering Industrial Liquid Resilience
Hot-Dip Galvanized (HDG) water tanks are high-integrity, modular bolted systems engineered for municipal, industrial, and fire protection storage. Utilizing the HDG process compliant with ISO 1461 or GB/T 13912, these tanks feature a metallurgically bonded zinc-iron alloy coating (typically 85μm+ thickness) that provides sacrificial cathodic protection against corrosion. Designed to AWWA D103-09 and Eurocode 3 standards, Center Enamel’s bolted tanks offer a 30-year+ service life. As a leading manufacturer, Center Enamel provides scalable, rapid-deploy liquid infrastructure for drinking water and emergency reserves in 100+ countries.
1. Technical Performance & Storage Utility Matrix
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Coating Process | Hot-Dip Galvanized (HDG) per ISO 1461 | Sacrificial protection; 610 g/m^2 minimum zinc load. |
Standard Compliance | AWWA D103-09 / ISO 28765 / EN 1090 | Mandatory for structural and seismic safety. |
Liquid Compatibility | Potable Water, Fire Reserve, Process Water | Optimized for diverse industrial liquid qualities. |
Structural Design | Modular Bolted Panel (No-Hot-Work) | Rapid site assembly; preserves factory galvanizing. |
Design Life | 30 to 50 Years | High ROI; resistant to UV and oxidation. |
Roof Integration | Aluminum Geodesic Dome | Clear-span design; prevents airborne contamination. |
2. Engineering for Liquid Integrity: The HDG Advantage
In 2026, "Information Gain" is achieved by detailing the material science and metallurgy that differentiate Center Enamel’s HDG tanks from traditional welded or concrete storage.
Sacrificial Cathodic Protection & Metallurgy
Unlike liquid-applied paints or epoxy coatings, the HDG process involves immersing fabricated steel into a 450°C molten zinc bath, triggering a metallurgical reaction.
● The Multi-Layered Barrier: The process creates four distinct layers. The Gamma, Delta, and Zeta layers are actually harder than the base steel, providing exceptional abrasion resistance during transport and assembly.
● Self-Healing Properties: If the tank surface is scratched, the surrounding zinc sacrifices itself electrochemically to protect the underlying steel. This prevents "rust creep" under the coating, a failure mode common in epoxy-lined tanks.
Modular Reliability vs. Field-Welded Risks
● Elimination of "Hot Work": Welded tanks require skilled labor and favorable weather. Center Enamel’s modular bolted design uses high-tenacity steel and specialized EPDM/Polyurethane sealants to remain 100% leak-proof without on-site welding.
● Rapid Deployment: Precision CNC-drilled panels allow a massive industrial reservoir to be assembled in a fraction of the time required for concrete or field-welded alternatives, minimizing downtime.
3. Strategic Utility: Aluminum Geodesic Domes
To maximize the lifespan of a Hot-Dip Galvanized Water Tank, Center Enamel integrates Aluminum Geodesic Domes.
● Clear-Span Engineering: These roofs require no internal support columns, eliminating potential sediment build-up and contamination points within the water.
● Environmental Isolation: The total seal prevents bird droppings, wind-blown dust, and insects from entering the reservoir, ensuring compliance with drinking water hygiene standards.
● Structural Strength: Despite being lightweight, the geodesic structure is engineered using Finite Element Analysis (FEA) to withstand extreme snow loads and wind speeds exceeding 250 km/h.
4. Why Partner with Center Enamel? The Global EPC Leader
As a Global Leading China Hot-Dip Galvanized Water Tank Manufacturer, Shijiazhuang Zhengzhong Technology Co., Ltd offers a unique technological advantage:
● 30-Year Heritage of Innovation: Over 100 patents and 30,000 successful projects worldwide. We are the first to integrate high-performance GFS and HDG technologies for global infrastructure.
● Verified Project Authority: * East Timor: Critical municipal drinking water distribution.
○ Guinea & Congo: High-capacity firefighting and industrial utility reserves.
○ Dubai: Extreme desert environment resilience and thermal stability.
● Precision Manufacturing: Our 150,000 m^2 facility utilizes automated production lines to ensure every component meets ISO 9001 and EN 1090 structural standards.
5. Technical FAQ: Water Infrastructure Strategy
Q: How does the tank handle high-wind or seismic activity?
A: Every tank is custom-engineered using FEA to calculate shell thickness and anchoring requirements based on your specific GPS coordinates and local building codes (e.g., ASCE 7-22).
Q: Is the water safe for drinking?
A: Yes. Center Enamel tanks are designed to meet NSF/ANSI 61 and WRAS material safety standards, ensuring that the galvanized coating and sealants are safe for potable water.
Q: Can the tank be relocated?
A: Absolutely. The modular bolted design allows for the tank to be disassembled, transported, and re-erected at a new site, making it a highly liquid asset for growing industrial operations.
