Epoxy Coated Steel Beverage Wastewater Treatment Tanks: Engineering Chemical Resilience and Sanitary Effluent Management
In the beverage manufacturing sector—encompassing breweries, soft drink bottling plants, wineries, and fruit juice facilities—production operations generate massive volumes of high-strength liquid waste. Beverage wastewater is characterized by heavy organic loads (sugars, starches, and alcohol), suspended solids, fluctuating temperatures, and aggressive pH swings driven by frequent Clean-in-Place (CIP) sanitization cycles using caustic soda and strong acids. Untreated or poorly contained effluent can rapidly pit carbon steel, degrade concrete, and cause severe environmental compliance violations.

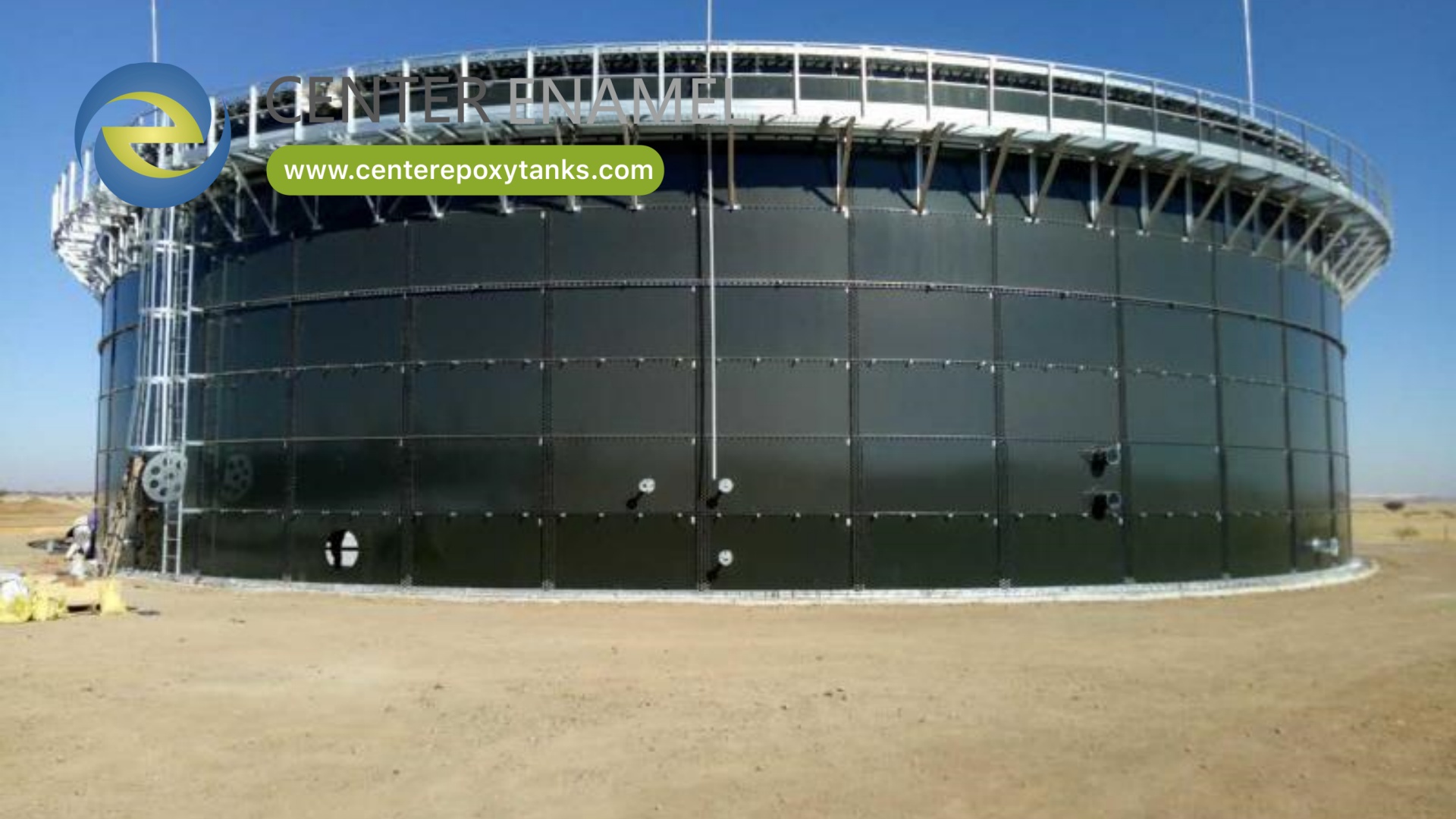

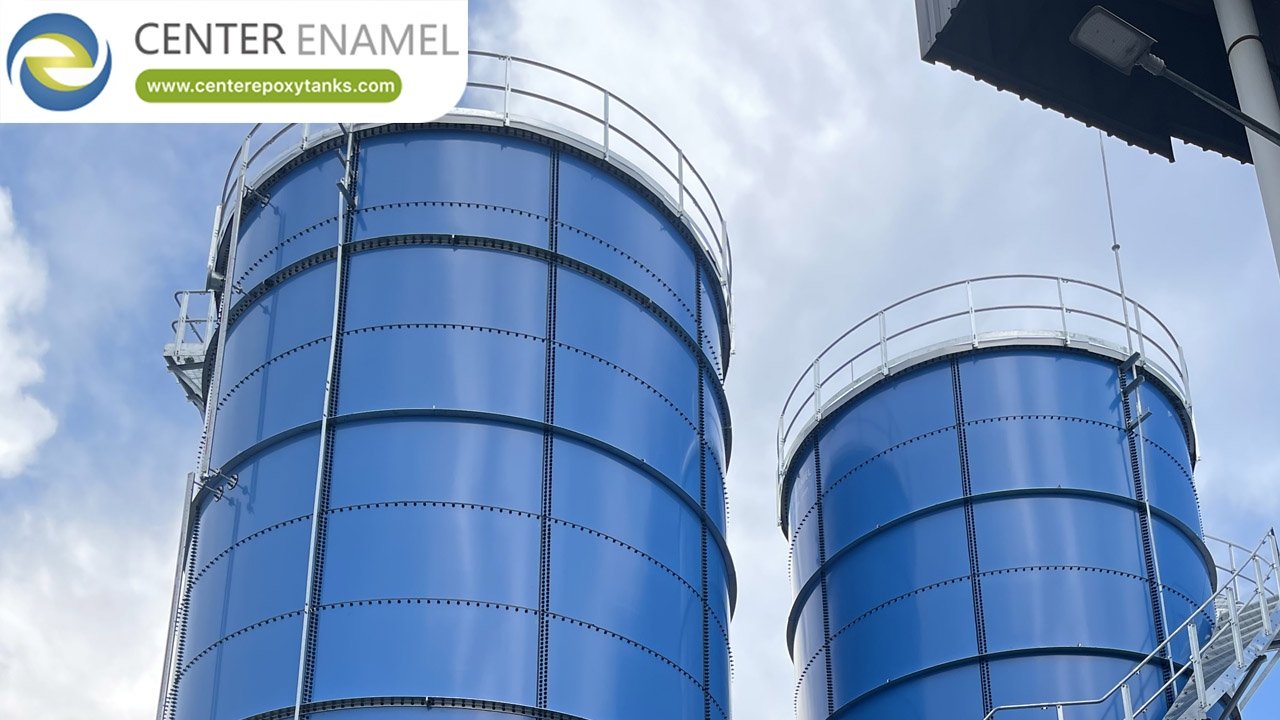

To manage these complex industrial effluents safely and efficiently, environmental engineers rely on epoxy coated steel beverage wastewater treatment tanks. Combining the high structural load capacity of modular bolted steel panels with advanced thermoset polymer protection, these tanks provide an economic, highly durable containment solution for equalization, pH adjustment, anaerobic digestion, and biological aeration.
The Environmental and Chemical Challenges of Beverage Wastewater
Designing containment infrastructure for the beverage industry requires overcoming several unique operational variables:
Extreme pH Fluctuations (CIP Cycles): Beverage plants routinely flush equipment with concentrated sodium hydroxide (caustic) and phosphoric or nitric acid. These sudden shifts between highly alkaline and acidic environments rapidly erode unprotected carbon steel and weaken concrete matrices.
High Chemical Oxygen Demand (COD): Residual sugars and organic ingredients ferment rapidly, generating high biological and chemical oxygen demands that accelerate microbial activity and internal corrosion.
Thermal Shock: Effluent entering wastewater balancing tanks often carries elevated temperatures from pasteurization and bottle-washing lines, placing thermal stress on interior linings.
Technical Superiority of Fusion Bonded Epoxy (FBE) Steel Tanks
To withstand the aggressive chemistry of beverage effluent, modern containment systems utilize advanced Fusion Bonded Epoxy (FBE) technology rather than basic field-applied paints:
Rigorous Surface Preparation: Steel panels are grit-blasted to a near-white metal standard (SSPC-SP 10) to create a precise micro-anchor profile that ensures permanent mechanical and chemical bonding.
Electrostatic Powder Application: High-performance epoxy resin powders are electrically charged and uniformly sprayed onto the steel panels, ensuring complete edge and corner coverage.
Thermoset Thermal Curing: Panels are cured in automated ovens at high temperatures (around 200 degrees Celsius), triggering a cross-linking reaction that forms a hard, chemically inert, and flexible polymer shield.
Holiday Spark Testing: Every interior panel undergoes rigorous high-voltage testing to guarantee zero pinholes or microscopic voids before assembly, ensuring the beverage waste never contacts the base carbon steel.
Data Table: Comprehensive Comparison of Beverage Wastewater Tank Technologies
Technical Parameter | Fusion Bonded Epoxy (FBE) Steel Tanks | Cast-in-Place Concrete Basins | Solid Stainless Steel Tanks (304/316) |
Resistance to CIP Chemicals | Excellent; inert cross-linked polymer resists caustic washes and acid rinses | Poor to Moderate; vulnerable to acid attack and concrete spalling | Superior; excellent intrinsic resistance to chemical cleaning agents |
Installation Speed & Labor | Rapid modular bolted assembly completed in days to weeks | Extremely slow civil pouring, forming, and curing (months) | Complex field welding, pickling, and passivation required |
Capital & Lifecycle Cost | Highly competitive initial cost with a 25 to 30+ year lifespan | High long-term maintenance overhead due to crack remediation and lining repair | Prohibitive initial capital investment for large-scale volumes |
Modularity & Expansion | High; bolted panels allow easy capacity expansion or relocation | Permanent fixed structure; impossible to modify once cured | Rigid welded structure; difficult to alter on-site |
Frequently Asked Questions (FAQ)
Q: Why are standard concrete or painted steel tanks unsuitable for beverage wastewater?
A: Beverage wastewater contains organic sugars and is subjected to aggressive Clean-in-Place (CIP) chemicals (caustic soda and acids), which rapidly erode unlined concrete or standard paint coatings, leading to structural degradation and leaks.
Q: How do epoxy coated steel tanks handle Clean-in-Place (CIP) washdowns?
A: High-performance Fusion Bonded Epoxy (FBE) linings are chemically cross-linked and engineered to withstand aggressive thermal shocks and chemical exposure from CIP routines that alternate between high-alkaline and acidic washes.
Q: What is the difference between standard paint and Fusion Bonded Epoxy (FBE)?
A: Unlike air-dried liquid paints that cure via solvent evaporation, FBE is a thermoset polymer powder heat-cured onto grit-blasted steel at high temperatures, creating a dense, cross-linked chemical barrier with superior adhesion and impact resistance.
Q: Can epoxy coated steel tanks be used for anaerobic digestion in brewery wastewater treatment?
A: Yes. High-grade epoxy-coated bolted tanks are widely utilized for anaerobic digestion and equalization basins in beverage wastewater treatment, providing reliable resistance to biological acids and biogas accumulation.
