What is a Galvanized Steel Rainwater Storage Tank?
As global communities, agricultural enterprises, and industrial facilities increasingly prioritize sustainable water conservation, galvanized steel rainwater storage tanks have emerged as the premier choice for large-scale liquid containment. But precisely what is a galvanized steel rainwater storage tank, and why are they favored over traditional storage methods?

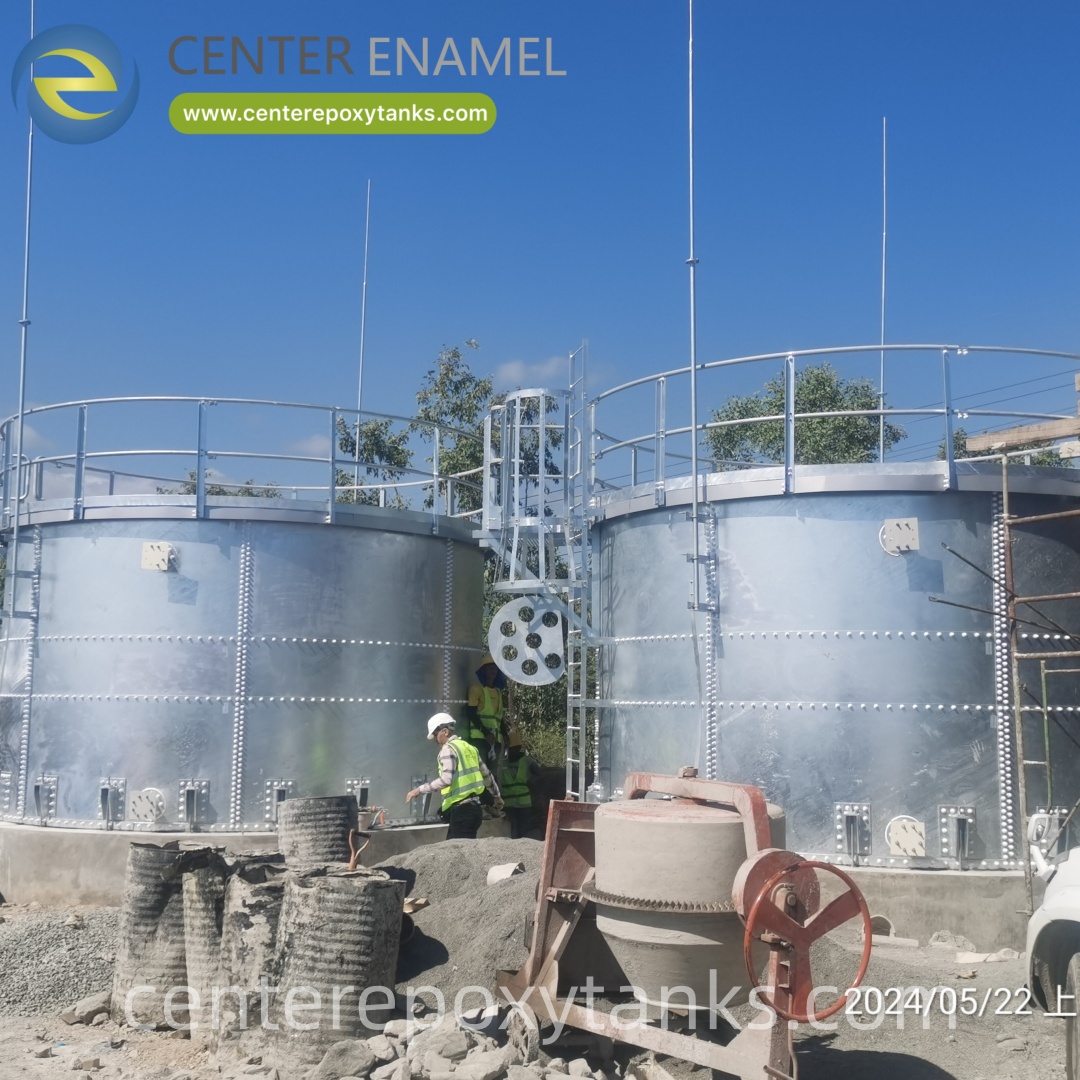

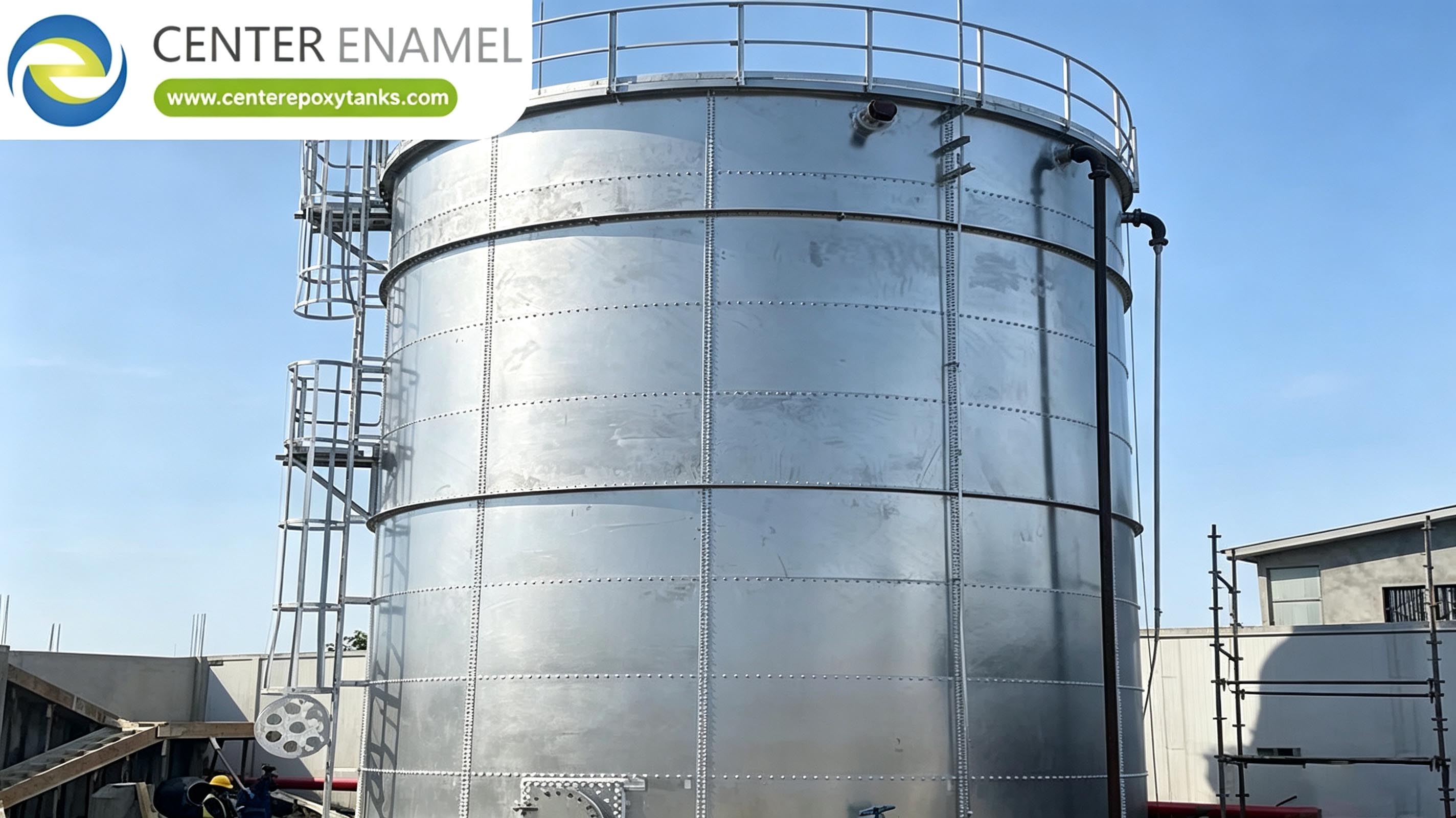

A galvanized steel rainwater storage tank is a heavy-duty, engineered liquid reservoir constructed from high-tensile steel panels treated through a hot-dip galvanization process. This protective treatment bonds a layer of molten zinc directly to the steel surface, creating a robust shield against environmental oxidation and rust. Modern commercial-grade tanks of this type are typically assembled using a modular bolted design and lined with a flexible, food-safe internal membrane (such as EPDM or Butyl) to safely store harvested rainwater, irrigation water, or fire suppression reserves without direct contact between the water and the steel walls.
Core Engineering and Structural Characteristics
Understanding the anatomy of a galvanized steel rainwater storage tank reveals why these structures deliver exceptional longevity and reliability:
Hot-Dip Galvanized Protection: Steel sheets are thoroughly cleaned and immersed in molten zinc, forming a metallurgical zinc-iron alloy layer that provides active sacrificial corrosion defense even if minor surface scratches occur.
Flexible Inner Membrane Liners: To prevent rainwater acidity from interacting with the metal and to guarantee absolute leak prevention, high-grade tanks utilize specialized synthetic rubber or polymer liners (such as EPDM or Butyl) tailored for potable or non-potable water standards.
Modular Bolted Architecture: Prefabricated and pre-punched steel panels are shipped in compact flat-pack kits, enabling rapid, cost-effective transport and straightforward mechanical assembly on-site—even in remote or restricted locations.
High Structural Safety Margins: Engineered to withstand severe wind speeds, seismic activity, and heavy snow loads, quality tanks incorporate generous engineering safety margins (often designed to handle structural loads 40% greater than nominal liquid volume).
Technical Performance Matrix: Rainwater Storage Options
Technical Parameter | Galvanized Steel Bolted Tanks | Plastic Polyethylene Tanks | Cast-in-Place Concrete Cisterns |
Volumetric Scalability | High; modular panel design allows large capacities (thousands of cubic meters) and future expansion | Limited; restricted by factory blow-molding size caps (usually smaller volumes) | Permanent monolithic structure; impossible to expand without major structural modification |
Transport & Installation Efficiency | High-density nestable panel packaging ships easily in standard containers; fast on-site bolting | Bulky rigid tanks require specialized wide-load transport and heavy rigging | Slow, labor-intensive civil construction requiring formwork, pouring, and curing |
Structural Durability & Lifespan | Multi-decade lifespan supported by hot-grade galvanization and replaceable inner liners | Prone to UV degradation and structural weakening over long-term outdoor exposure | Durable, but susceptible to micro-cracking and root intrusion over time |
Frequently Asked Questions (FAQ)
Q: Why do galvanized steel rainwater tanks require an internal liner?
A: While hot-dip galvanization protects the exterior and structural steel from atmospheric corrosion, harvested rainwater is naturally soft and slightly acidic. Installing an engineered flexible liner (such as EPDM or Butyl) creates a completely inert barrier that prevents direct contact between the water and metal, stopping corrosion and ensuring absolute leak-proof integrity.
Q: What capacities are available for galvanized steel water storage tanks?
A: These tanks are highly versatile and scalable, ranging from modest residential or commercial units (several thousand liters) to massive industrial and agricultural reservoirs holding over 1,000,000 liters or thousands of cubic meters.
Q: How long do galvanized steel rainwater storage tanks last?
A: With proper installation, routine inspection, and periodic liner maintenance, a high-quality galvanized steel storage tank can easily deliver a service life exceeding 30 years.
Q: Are these tanks suitable for drinking water storage?
A: Yes. When equipped with certified food-grade interior liners (such as specific Butyl or specialized potable-rated membranes), galvanized steel tanks can safely store clean drinking water for residential, commercial, or off-grid applications.
