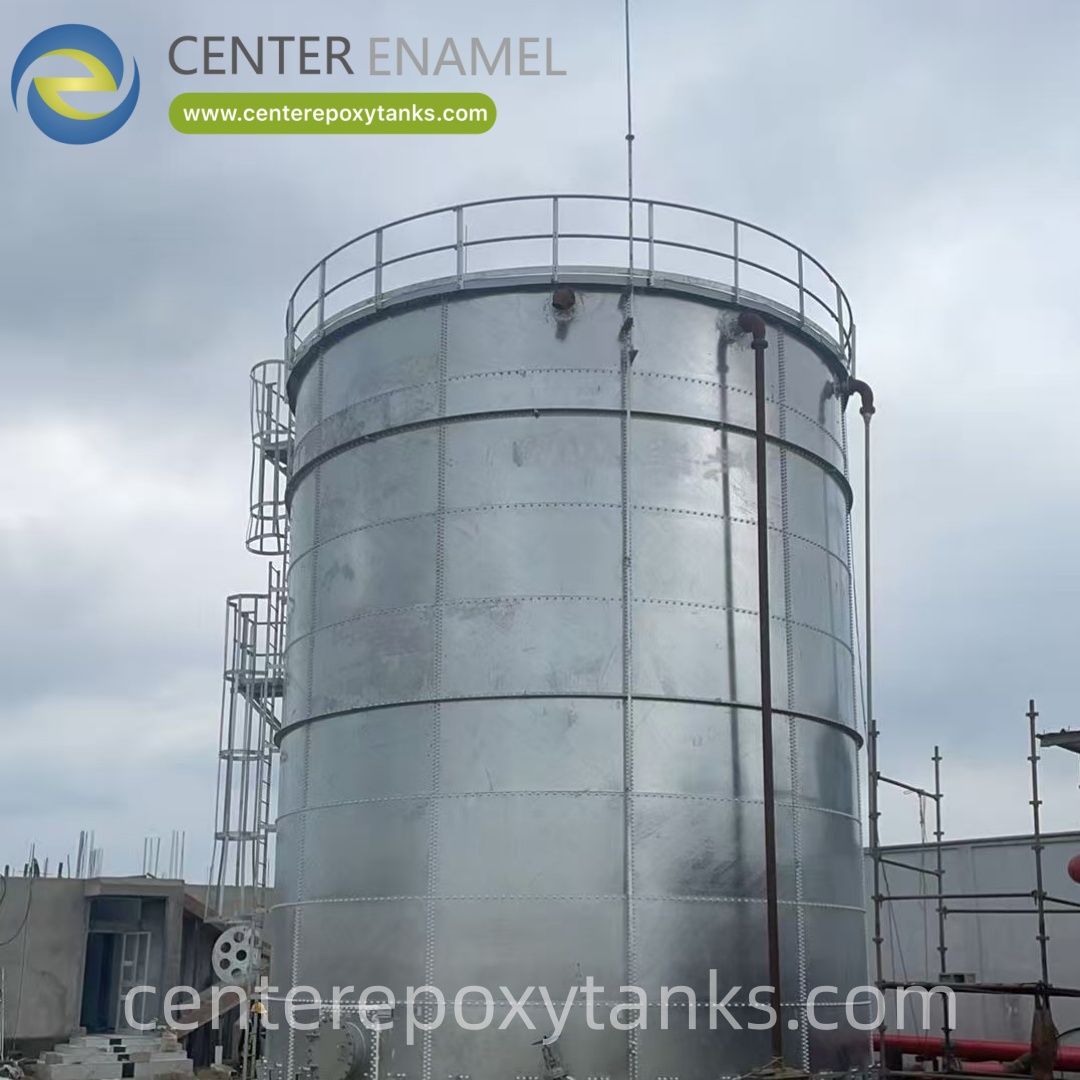

In the modern landscape of water management, the transition toward Galvanized Steel Cylindrical Water Storage Tanks reflects a global shift toward structural longevity, modular flexibility, and cost-efficiency. Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) is the premier China Galvanized Steel Tank manufacturer, delivering advanced engineering to over 100 countries to support industrial, municipal, and agricultural liquid assets.
Center Enamel is Asia's most experienced bolted tank manufacturer. Our cylindrical systems are engineered in strict accordance with AWWA D103-09, ISO 28765, NSF/ANSI 61, and NFPA standards. This compliance ensures our tanks manage the radial and hoop stresses of high-capacity storage while surviving the world's most challenging environmental demands.
Parameter | Specification | Compliance Standard |
Protective Coating | Hot-Dip Galvanized (HDG) | ISO 1461 / ASTM A123 |
Zinc Coating Thickness | >80mum (or 610g/m2) | Superior cathodic protection |
Design Standard | Bolted Steel Tank Construction | AWWA D103-09 |
Potable Water Safety | BPA-Free / Food-Grade Liners | NSF/ANSI 61 / FDA |
Wind Load Resistance | Up to 45m/s | Typhoon-rated reinforced designs |
Seismic Rating | Intensity Zone 7 - 9 | Optimized for high-risk tectonic regions |
Service Life | 10 - 20 Years | Based on environmental corrosivity |
Unlike paints that act as passive barriers, our $geq 80text{ mu m}$ zinc coating provides Active Cathodic Protection. Through electrolysis, the zinc acts as a sacrificial anode. If the tank surface is scratched during installation, the zinc sacrifices itself to protect the exposed steel, effectively "self-healing" the wound and preventing the spread of rust.
Traditional welded tanks often fail at the seams. Our Weld-Free Bolted Assembly eliminates the Heat Affected Zone (HAZ) created by extreme welding temperatures. By using factory-punched panels and high-strength galvanized bolts, we maintain the metallurgical integrity of every square centimeter, significantly extending the time to first maintenance.
The cylindrical profile is a strategic engineering decision. It ensures Uniform Stress Distribution, eliminating the stress concentrations found in rectangular tanks. This geometry provides the highest volume-to-surface-area ratio, reducing material costs and project footprints.
In the high-salinity "C5" corrosivity environment of Southeast Asia, Center Enamel delivered a benchmark drinking water solution in May 2024.
● Project Scale: 2 Units, 5.35 x 3m (H).
● Roof Configuration: Aluminum Flat-Top Lids for evaporation control and hygienic isolation.
● Rapid Deployment: The modular design allowed for a complete installation in under 7 days, ensuring the system was operational before the monsoon season. The galvanized coating ensures structural integrity in high-humidity maritime climates for over 10 years.
Feature | Galvanized Bolted Steel Tanks | Reinforced Concrete Tanks |
Initial CAPEX | 20% - 35% Lower | High (Labor intensive) |
Installation Time | Rapid: 5–10 days | Slow: 4–8 weeks (Curing) |
Sustainability | 95% Recyclable | Low (High CO2 footprint) |
Relocation | Modular & Possible | Impossible (Permanent) |
Choosing galvanized steel reduces on-site labor by 40% and aligns with Green Infrastructure goals. Both steel and zinc are highly recyclable, supporting a circular economy while minimizing the carbon footprint of global transport.
Q: What is the service life of a hot-dip galvanized tank?
A: In non-acidic industrial environments, the service life typically exceeds 10 years. The factory-applied 80mum zinc layer prevents oxidation even in demanding outdoor conditions.
Q: How does the tank perform in tropical climates?
A: Galvanized steel is engineered for regions like India and Indonesia. The sacrificial anode properties prevent "under-film" rust common in liquid-painted tanks, even in salty coastal air.
Q: Can these tanks be relocated?
A: Yes. The modular bolted design allows for easy disassembly and relocation without structural damage, making it a flexible asset for growing industrial facilities.
Center Enamel combines the structural strength of galvanized steel with advanced Aluminum Dome Roofs to provide a turnkey solution for the world's most vital water assets. With a presence in over 100 countries, we are your partner in building a resilient and sustainable tomorrow.
