As the global circular economy accelerates, Used Cooking Oil (UCO) has transitioned from a waste byproduct to a premium feedstock for biodiesel, biogas, and oleochemicals. However, storing UCO presents significant engineering hurdles: high Free Fatty Acid (FFA) acidity, microbial degradation, and stringent environmental leak-prevention mandates.
Shijiazhuang Zhengzhong Technology (Center Enamel) is the leading manufacturer of specialized Fusion Bonded Epoxy (FBE) tanks designed to meet these challenges, providing certified, long-term containment for global resource recovery projects.
Data-driven evaluation of containment materials for high-acid waste oil environments.
Feature | Center Enamel Epoxy Bolted Steel | Traditional Concrete | Welded Carbon Steel |
Acid Resistance | Excellent (pH 2-12) | Poor (Acid etching/cracking) | Moderate (Requires lining) |
Cleanability | High (Non-porous FBE) | Low (Porous; traps odors) | Moderate (Rough weld seams) |
Installation Time | 7–15 Days (Modular) | 60–90 Days (Curing) | 30–45 Days (Welding) |
Corrosion Risk | Zero (Inert Coating) | High (Structural rot) | High (Internal pitting) |
Standard Life | 30+ Years | 10–15 Years | 15–20 Years |
UCO contains moisture and volatile organic compounds that raise acidity levels. Standard tanks suffer from pitting, but our FBE coating provides a molecularly fused, inert barrier. This ensures that the steel substrate remains protected even when storing high-acid-value (AV) oils.
Our vessels are engineered to act as functional biodiesel production pretreatment tanks. They are designed to integrate with:
● Thermal Heating Coils: Maintains oil viscosity for pumpability in cold climates (tested up to 60°C).
● Agitator Systems: Reinforced shells support heavy-duty mixers used during acid-esterification.
Time-to-market is critical for collection hubs. Our modular bolted tank assembly allows for rapid deployment without on-site welding. Every tank is manufactured in strict accordance with AWWA D103-09 standards, ensuring the structural integrity required to handle the specific gravity of heavy organic oils.

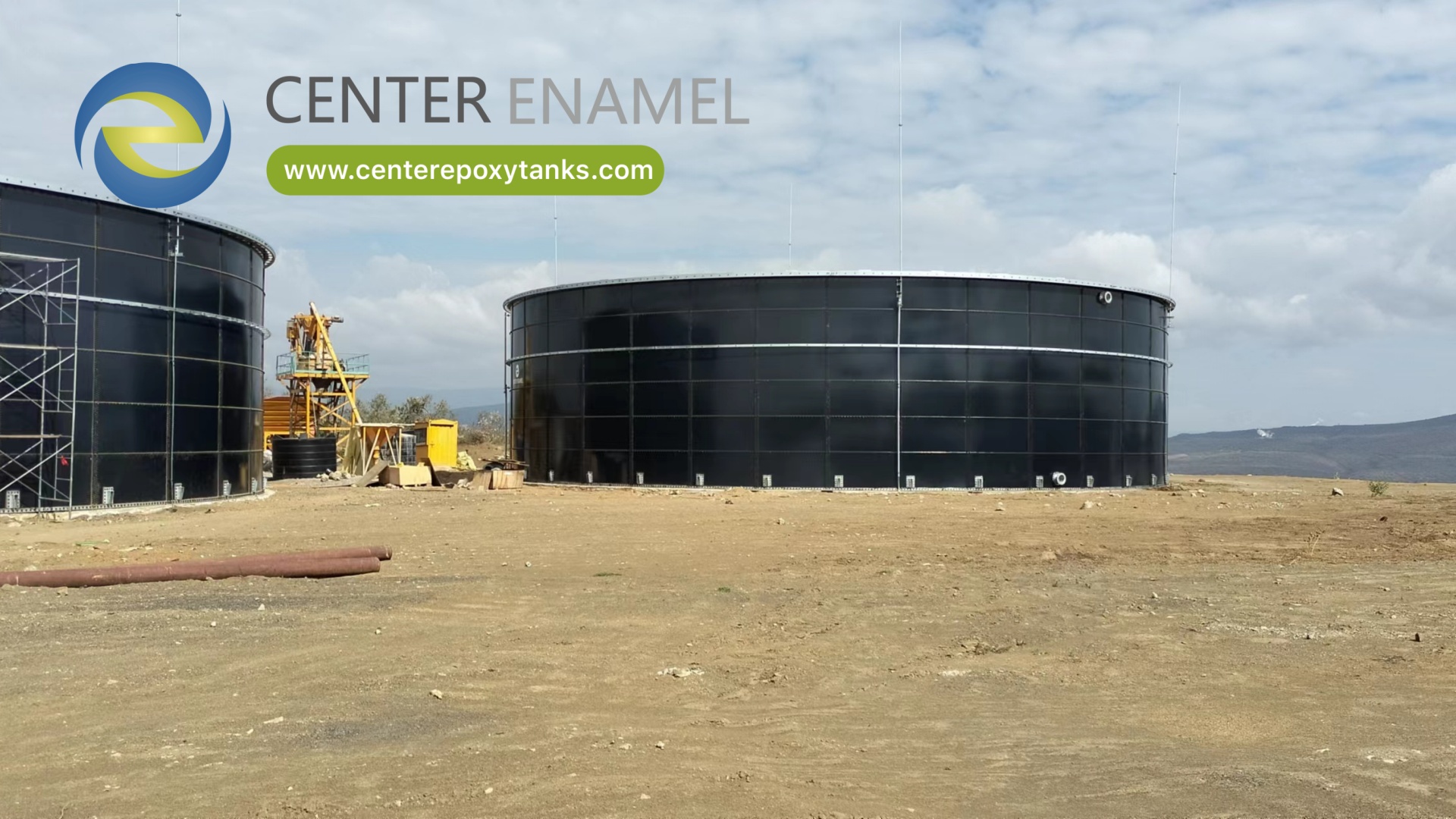

Center Enamel’s footprint in the bio-energy sector is supported by high-capacity installations across diverse climates:
● Turkey Food Waste & UCO Collection: 2 units (7,452 m3) utilizing ultra-smooth FBE panels to prevent grease adhesion and bacterial growth.
● Singapore Bio-Energy Hub: 3 units (3,458 m3) designed with 100% leak-proof double-sealing to meet strict urban environmental regulations.
● Sweden Bio-Natural Gas Feedstock: 1 unit (5,510 m3) engineered with factory-integrated insulation and thermal resistance for high-viscosity oil storage.
● Shanxi Yuncheng Pre-treatment: 5 units (9,410 m3) serving as the primary vessels for high-FFA biodiesel feedstock storage.
Unlike concrete, which is alkaline and prone to etching, our Fusion Bonded Epoxy (FBE) is chemically inert. It creates a high-density, non-porous barrier specifically tested for FFA corrosion protection, preventing acidic molecules from degrading the steel.
When built to AWWA D103-09 standards, our tanks have a service life of 30+ years. The factory-controlled coating environment eliminates the risk of "holidays" or thin spots common in field-applied paintings.
Yes. The modular bolted design allows for "top-down" construction with lifting jacks, requiring a minimal footprint and no heavy cranes—ideal for dense industrial or urban zones.
