For anaerobic digestion tanks, the right tank is defined by the stored medium, the duty cycle, and any coating or approval rule — not a single headline number. The digester is a sealed, coated volume sized by retention time and feed rate. A anaerobic digester tank built with a verified coating system and correct sizing delivers a safe, low-maintenance installation.
Biogas storage and digestion need a sealed, corrosion-resistant volume that holds slurry and captures gas. For anaerobic digestion tanks, the tank is the digester and often the gas buffer in one bolted-steel package.
The digester is a sealed, coated volume sized by retention time and feed rate.
For anaerobic digester tank, the epoxy or FBE lining resists the acidic, H2S-rich environment of anaerobic digestion, while a gas-tight top — often a double-membrane roof — captures the biogas for use.
Volume follows retention time and feed rate. Heated, mixed digesters need nozzle provisions for heat exchangers, mixers, and gas outlets; plan these with the process engineer.
Match the coating to the feedstock: food waste, manure, and agricultural residues each bring different solids, pH, and grit. A certified internal lining plus a sealed roof keeps the process contained.
Where the gas is upgraded to biomethane, the tank and roof must hold design pressure and resist the gas chemistry.
Confirm retention time, feed characteristics, and gas duty before sizing. Verify coating spec, gas-tightness test, and nozzle layout at factory acceptance.
1. Define the medium and duty: confirm the anaerobic digestion specifics — chemistry, temperature, solids, and any approval such as NSF-61 / WRAS for potable-adjacent duty.
2. Set the capacity from the real driver — demand, retention time, or the fire hydraulic calculation — rather than a generic rule of thumb.
3. Choose the shell and lining: a bolted, factory-coated steel tank with the lining matched to anaerobic digester tank duty and environment.
4. Agree ancillaries and standards with the engineer of record — nozzles, roof type, level and pressure control, bunding, and the applicable codes.
5. Verify at acceptance: coating certificate, lining inspection, and a hydrostatic or gas-tightness test before handover.
· Specifying a size before the medium and duty are known — the lining and volume must follow the process.
· Treating the roof, membrane, or cover as a late add-on — it must be matched to the shell at design time.
· Skipping the lining inspection and pressure or hydrostatic test, which is where most lifecycle problems begin.
· Assuming one coating fits every product — verify compatibility with the actual stored medium and temperature.
For anaerobic digester tank in anaerobic digestion, procurement should lock the coating specification and the quality evidence — coating certificate, lining inspection, and test record — before shipment. Bolted panels arrive flat-packed; site erection is fast, and the tank can later be dismantled and re-erected if the duty or location changes.
During commissioning, confirm level and pressure instrumentation, verify the lining survived transport and erection, and document the as-built condition. A documented handover supports permitting, audit, and a sensible maintenance plan over the tank's service life.
A anaerobic digester tank is a long-life asset when the lining and structure are specified and verified for the duty. For anaerobic digestion, plan routine checks of the lining, the roof or membrane, nozzles, and level or pressure instruments, and keep a record of the as-built coating and test evidence for audit and warranty purposes.
Bolted construction makes future expansion, relocation, or re-coating straightforward compared with a welded tank. Where the medium or regulation changes, the same shell can often be re-lined rather than replaced, which protects both budget and uptime over the service life.
Parameter | What to specify |
Medium / product | Anaerobic digestion — confirm chemistry, temperature, solids |
Capacity | From demand, retention time, or hydraulic calc |
Coating / lining | Epoxy or FBE; NSF-61 / WRAS if potable-adjacent |
Shell | Bolted steel (GFS / epoxy / stainless per duty) |
Roof | Sealed, dome, floating, or double-membrane per application |
Standards | ISO 28765, AWWA D103, NFPA 22 / EN 12845 as applicable |
Ancillaries | Nozzles, mixers, level control, bunding, access |
Field | Value |
Project / Application | Biogas project — Sweden |
Industry | Biogas project |
Tank Type | GFS (Glass-Fused-to-Steel) bolted tank |
Tank Quantity | 1 |
Dimensions Per Tank | Ø 19.11 x 19.2 m (H) 1units |
Volume | 5,504 m3 |
Year | 2024 |
Source / Evidence | Company project ledger (2024 installation) |

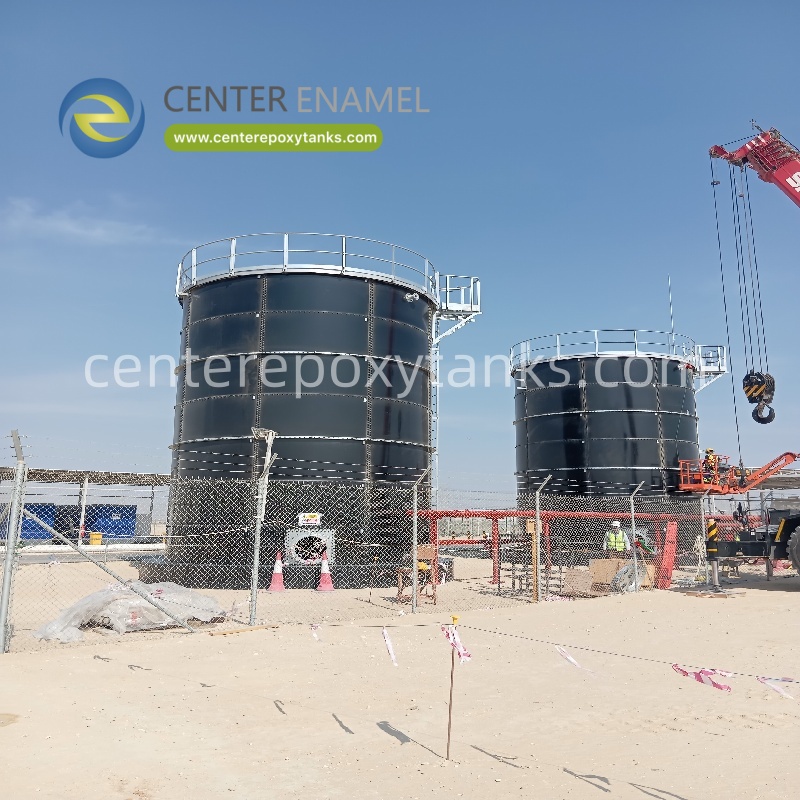

Center Enamel's verified record includes a 2024 biogas project in Sweden — 1 unit(s), Ø 19.11 x 19.2 m (H) 1units, 5,504 m3 total, GFS (Glass-Fused-to-Steel) bolted tank. This is cited as a verified engineering reference (B-grade): it shares the same broad anaerobic digester tank/anaerobic digestion storage discipline, but the referenced project used GFS (Glass-Fused-to-Steel) bolted tank, whereas this article addresses anaerobic digester tank. It is presented as a background reference, not a claim that the exact article configuration was delivered.
Q: What is a biogas digester tank?
A: A sealed, lined volume that holds feedstock, digests it, and captures the gas produced.
Q: Why epoxy or FBE lining?
A: The anaerobic environment is acidic and H2S-rich; the lining resists it.
Q: How is gas captured?
A: A gas-tight top, often a double-membrane roof, stores the biogas for use.
Q: How is volume set?
A: From retention time and feed rate for the chosen feedstock.
Q: What feedstocks are typical?
A: Food waste, manure, agricultural residues, and organic industrial streams.
Q: What nozzles are needed?
A: Heat exchangers, mixers, and gas outlets sized with the process engineer.
Anaerobic Digestion Tanks: Center Enamel Manufacturing and Process Integration comes down to matching the anaerobic digester tank to the medium, the duty, and the applicable standard. Specify the lining and sizing from the real operating condition, verify the coating and hydrostatic test at acceptance, and the installation will perform.
