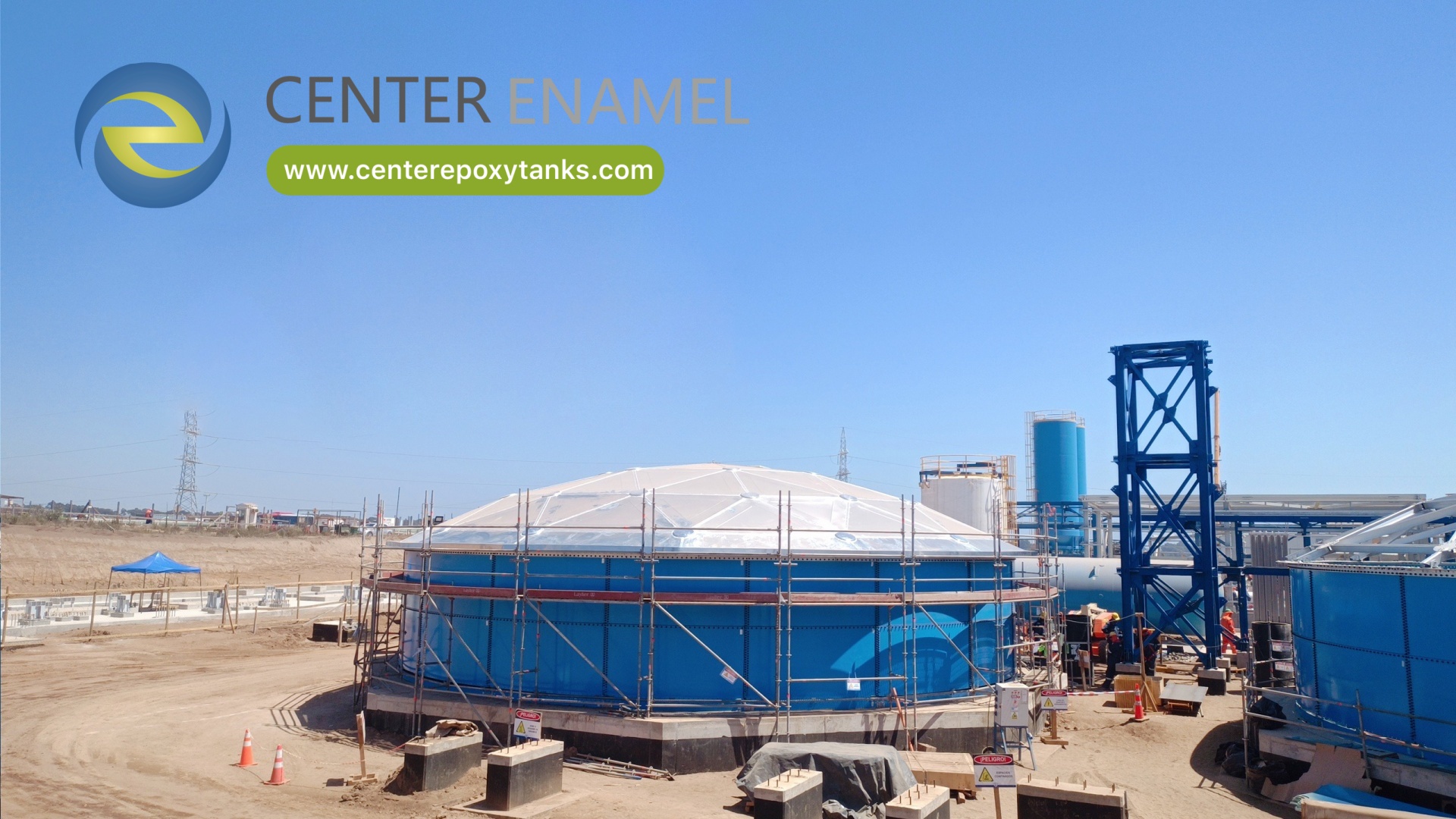

Industrial process water storage tanks are specialized containment systems engineered for high-purity applications, including RO/DI water, pharmaceutical compounding, and semiconductor fabrication. Unlike standard lined tanks, Fusion-Bonded Epoxy (FBE) tanks utilize a factory-applied, electrostatic powder coating cured at high temperatures to create a monolithic, non-leaching barrier. Center Enamel (Shijiazhuang Zhengzhong Technology Co., Ltd) manufactures these tanks to AWWA D103-09 and ISO 28765 standards, providing a chemically inert surface that prevents metallic ion contamination and biofilm adhesion. With a modular bolted design, these tanks offer superior fatigue resistance for high-frequency fill-and-drain cycles in 100+ countries.
This matrix establishes the mechanical benchmarks for Center Enamel’s FBE technology.
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Coating Type | Fusion-Bonded Epoxy (Factory-Applied) | Eliminates "holiday" defects common in field-applied linings. |
Adhesion Strength | >12 MPa (ASTM D4541) | Prevents delamination during rapid thermal or pressure shifts. |
Surface Profile | Glass-Smooth / Low Friction | Inhibits biofilm attachment and facilitates CIP (Clean-in-Place). |
Purity Compliance | NSF/ANSI 61 / WRAS Certified | Guaranteed zero-leaching of VOCs or heavy metals into process water. |
Design Standard | AWWA D103 / EN 1090 | Global structural benchmark for bolted steel integrity. |
Corrosion Rating | C3 - C5M (Marine/Industrial) | Resists aggressive oxidizing agents like Ozone and Chlorine. |
In 2026, "Information Gain" is achieved by detailing the material science that differentiates industrial-grade FBE from conventional liquid-epoxy coatings.
The integrity of industrial process water depends on the molecular stability of the tank's internal interface.
● The Fusion Process: Center Enamel’s epoxy is electrostatically applied to a grit-blasted Near-White Metal (SSPC-SP10) surface and thermally cured. This creates a cross-linked polymer chain that is chemically fused to the steel, rather than just mechanically "stuck" to it.
● Resistance to "Aggressive" Water: Ultra-pure water (DI/RO) is chemically hungry and will actively leach ions from poorly protected steel. Our FBE barrier is non-porous and inert, ensuring that water resistivity and TOC (Total Organic Carbon) levels remain within strict process tolerances.
● Hydraulic Fatigue Resilience: Process tanks face high-frequency cycling. Center Enamel’s modular bolted design allows for microscopic flexure without micro-cracking the coating—a common failure mode in rigid welded tanks with brittle internal linings.
● Pharmaceutical & Biotech: Storing USP-grade purified water where zero biological growth and zero chemical leaching are mandatory for FDA/GMP compliance.
● Semiconductor & Electronics: Maintaining the extreme purity required for wafer cleaning, where even part-per-billion (ppb) metallic contamination can ruin production yields.
● Food & Beverage (CIP Systems): Providing tanks that withstand aggressive Clean-in-Place chemicals and high-temperature sanitization cycles.
● Power Generation: Storing demineralized boiler feedwater to prevent scale and corrosion in high-pressure turbine systems.
As a premier China Epoxy Coated Tank Manufacturer, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) offers a unique technological advantage:
● 30-Year Engineering Heritage: As Asia’s first manufacturer to master high-performance bolted tank coatings, we provide the deepest technical expertise in specialized industrial containment.
● Advanced Quality Protocols: Every panel undergoes 100% "Holiday Testing" at 1100V to ensure zero discontinuities in the epoxy barrier before it leaves our facility.
● Turnkey EPC Support: We provide a single point of accountability—from initial AWWA-compliant design to international logistics and on-site installation supervision.
● Strategic Cover Solutions: We integrate Aluminum Geodesic Domes to protect process water from UV-induced algae growth and airborne particulate contamination.
Q: How does FBE compare to Glass-Fused-to-Steel (GFS) for process water?
A: GFS is the "gold standard" for the most aggressive wastewater (pH 1-14). However, FBE is often the optimal choice for high-purity process water due to its excellent impact resistance, cost-efficiency, and superior performance in demineralized water environments.
Q: Can FBE tanks handle hot process water?
A: Yes. Center Enamel offers specialized high-temperature epoxy formulations capable of withstanding continuous operating temperatures up to 60°C - 80°C (140°F - 176°F), depending on the specific water chemistry.
Q: What is the maintenance requirement for a bolted FBE tank?
A: Maintenance is minimal. Because the coating is factory-applied and non-porous, it does not require periodic re-lining. We recommend a visual inspection every 5 years to ensure the integrity of the external seals.
