Modern agriculture, while feeding the world, generates vast volumes of wastewater rich in nutrients, solids, and potential contaminants. Effective Farm Wastewater Treatment is the frontline defense for agricultural sustainability, protecting vital soil and water resources while ensuring compliance with increasingly stringent environmental regulations. For large-scale livestock and high-intensity farming operations, the security and reliability of containment infrastructure are paramount.
Traditional containment methods—porous concrete basins, unreliable earthen lagoons, or standard steel tanks with compromised linings—are simply not engineered to withstand the unique chemical and physical aggression of farm effluent. These failures lead to costly leaks, premature degradation, and significant environmental liabilities.
Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel), a distinguished China Epoxy Coated Tank manufacturer, provides the unyielding solution: the Fusion Bonded Epoxy (FBE) Bolted Steel Tank. As the premier Epoxy Coated Tank on the global market, it is specifically designed to transform farm waste from an environmental risk into a valuable resource, serving as the secure, durable foundation for modern Farm Wastewater Treatment and resource recovery systems.
Farm wastewater, which includes livestock manure slurry, concentrated wash water, and agricultural process effluent, is one of the most chemically and biologically active substances routinely managed in the agricultural sector. Containment vessels must endure chronic exposure to a combination of stresses that rapidly destroy conventional materials:
In the critical anaerobic digestion phase, commonly used in Farm Wastewater Treatment to produce biogas, high concentrations of hydrogen sulfide (H2S) gas are released. This H2S collects in the headspace (the vapor zone) of the tank. Here, in the presence of air and moisture, specialized microbes oxidize it into highly corrosive biogenic sulfuric acid (H2SO4). This localized, potent acid attack is the primary culprit in the structural failure of both concrete and standard steel digesters, compromising their lifespan from the top down.
Livestock effluent is rich in organic nitrogen, which decomposes into ammonia (NH3). High levels of dissolved ammonia contribute to a highly alkaline environment. This alkalinity, coupled with the corrosive potential of gaseous ammonia, actively degrades many conventional coatings and galvanized surfaces. The ideal Epoxy Coated Tank must maintain integrity across the full pH range, from the acidic side of biological processes to the alkaline nature of fresh manure.
Farm wastewater is a dense, viscous slurry containing abrasive materials such as grit, sand, and coarse organic fibers. Efficient Farm Wastewater Treatment often requires continuous or intermittent mechanical mixing to ensure homogeneous conditions for biological activity. This combination of abrasive solids and dynamic mixing creates intense physical wear on internal tank surfaces, quickly eroding less robust coatings and liners.
Agricultural containment systems are typically exposed to the full range of outdoor climatic conditions. Extreme temperature variations cause thermal expansion and contraction, which can lead to stress cracking in concrete or the eventual delamination of poorly adhered coatings. The FBE Epoxy Coated Tank must withstand these external environmental pressures while securely managing the internal chemical volatility.
Center Enamel’s Fusion Bonded Epoxy (FBE) Bolted Steel Tank is the result of precision engineering designed to achieve absolute containment security and unparalleled longevity in Farm Wastewater Treatment.
The FBE coating is not a conventional paint; it is a specialized thermosetting polymer that is chemically fused to the steel substrate:
Precision Preparation: High-strength steel panels are first meticulously prepared by abrasive grit blasting (to the Sa221 standard), ensuring the removal of all contaminants and creating the perfect profile for bonding.
Molecular Fusion: Epoxy powder is electrostatically applied to the pre-heated steel panels. In a high-temperature oven, the powder melts, flows, and chemically cross-links, forming an inseparable, dense bond with the steel.
Impervious Barrier: This factory-controlled fusion results in a pinhole-free, non-porous surface that is completely inert to the organic acids, ammonia, salts, and corrosive ions found in farm effluent. Critically, it provides a stable, unyielding barrier against the top-down attack of biogenic sulfuric acid, a key differentiator in Farm Wastewater Treatment digester design.
As a leading China Epoxy Coated Tank manufacturer, Center Enamel ensures structural integrity that meets the demands of heavy slurry and long operational life:
High-Strength Steel: The structure is engineered to handle the high hydrostatic pressure of dense farm slurry and the dynamic loads imposed by continuous internal mixing equipment.
Abrasion Resilience: The cured FBE coating is tough and flexible, offering superior resistance to the physical wear from circulating abrasive solids, thus preserving the protective layer and extending the tank's service life beyond that of conventional materials.
Safety and Compliance: The FBE Epoxy Coated Tank provides absolute, leak-proof containment, safeguarding against the environmental risks of pathogen and nutrient runoff, and ensuring full regulatory compliance for farming operations.
The modular, bolted design of the FBE tank is perfectly suited for the logistical and operational needs of the agricultural sector:
Rapid, Low-Impact Installation: Prefabricated components are quickly assembled on-site using specialized tools and high-grade sealants. This eliminates complex on-site welding or extended concrete curing times, reducing construction costs and minimizing disruption to ongoing farm operations.
Scalability: Farms often need to expand their Farm Wastewater Treatment capacity over time. The FBE system is inherently scalable; capacity can be seamlessly increased by adding new rings or integrating new modular tanks, allowing the infrastructure to grow with the business.
Logistical Efficiency: As a major China Epoxy Coated Tank manufacturer, Center Enamel can efficiently ship the compact, modular components to remote or geographically challenging farm locations worldwide, simplifying logistics and accelerating project timelines.

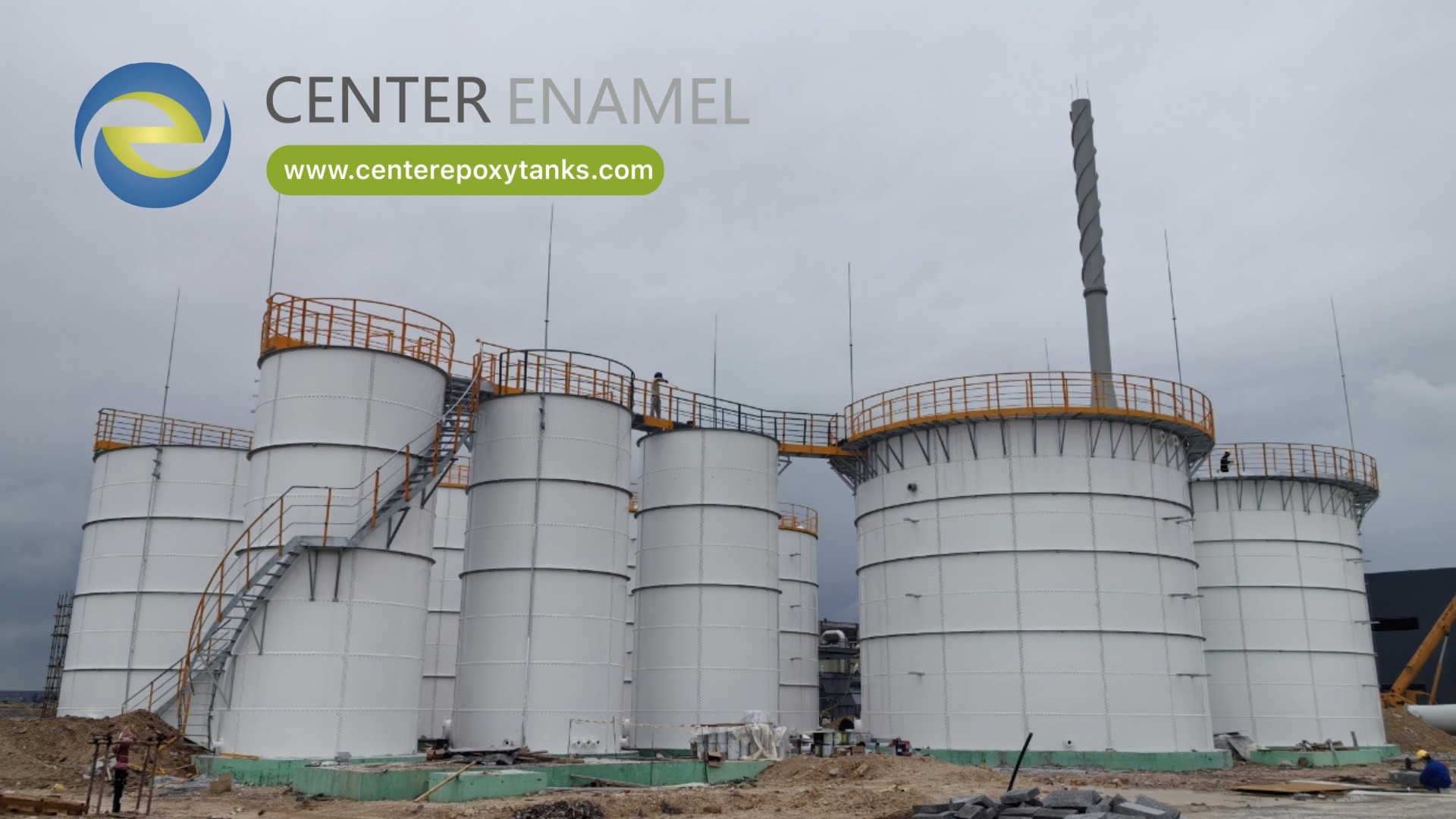

Center Enamel's extensive track record in the agricultural sector validates the FBE Epoxy Coated Tank as the global standard for managing livestock waste and enabling resource recovery. The following projects from our latest library showcase our expertise across high-volume and complex waste streams:
Muyuan Group Suining 4th Farm Livestock Wastewater Project: This solution was critical for managing the high-volume effluent of a key farming operation. The project involved 2 units of tanks with a total capacity of 17,962 cubic meters, showcasing our ability to meet the most demanding containment requirements of large-scale Farm Wastewater Treatment.
Muyuan Group Jiangsu Lianyungang Livestock Wastewater Project: Addressing the need for flexible, multi-stage treatment, this installation required a number of tanks to manage various processes. Center Enamel supplied 7 units of tanks with a total capacity of 10,360 cubic meters, demonstrating our versatility in designing systems that integrate complex, multi-step waste treatment trains.
Muyuan Group Guangdong Leizhou Sixteen Farms Harmless Treatment Project: In this large-scale regional initiative, reliable waste treatment was essential for environmental sustainability. We provided containment consisting of 4 units of tanks with a total capacity of 9,258 cubic meters, providing foundational security for the harmless treatment and resource recovery of waste from multiple farms.
Muyuan Group Guangxi Liucheng Livestock Wastewater Project: Focused on bio-energy production, this project utilized our tanks as critical anaerobic digestate storage vessels. We supplied 3 units of tanks with a total capacity of 8,057 cubic meters, underscoring our capability to deliver reliable, gas-tight containment for high-value biogas applications within Farm Wastewater Treatment.
Guangxi Nanning Pig Farming Project: In a concentrated farming environment, secure and sanitary waste containment was key to operational hygiene. This project involved 2 units of tanks with a total capacity of 7,429 cubic meters, confirming the FBE tank's proven role in maintaining the highest environmental and hygiene standards in intensive livestock operations.
Shanghai Songlin Pig Farm Wastewater Project: This installation addressed the need for highly secure containment in a sensitive environmental location. Center Enamel supplied 2 units of tanks with a total capacity of 6,205 cubic meters, highlighting the FBE tank's suitability for reliable operation even in ecologically sensitive or urban-adjacent areas where risk mitigation is paramount.
The FBE Epoxy Coated Tank does more than just contain waste; it acts as the essential, reliable vessel for high-value resource recovery, enabling a circular economy model in agriculture:
Renewable Energy Generation: By serving as the primary reactor for anaerobic digestion, the FBE tank safely converts organic waste into methane-rich biogas, providing a sustainable, on-site energy source for the farm and reducing dependence on fossil fuels. Its resistance to biogenic sulfuric acid is vital for the long-term economic return of this asset.
Nutrient Reclamation: The byproduct of digestion, digestate, is an excellent, pathogen-reduced, organic fertilizer. FBE tanks are the perfect storage solution for digestate, securing the valuable nutrients (Nitrogen, Phosphorus) before they are safely applied back to the land, closing the nutrient loop and reducing the need for expensive synthetic fertilizers.
Water Conservation: Advanced Farm Wastewater Treatment systems built around FBE tanks can reclaim a significant portion of the water from the effluent, which can then be safely reused for irrigation, wash-down, or non-potable uses, contributing significantly to water conservation efforts on the farm.
The imperative for secure and compliant Farm Wastewater Treatment defines the operational health and long-term viability of modern agriculture. The risks associated with relying on outdated or inferior containment are unacceptable, threatening both regulatory compliance and environmental integrity.
Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) is your trusted global partner, offering a containment solution built on technological superiority and certified quality. Our FBE Epoxy Coated Tank provides:
Unrivaled Durability: A molecularly bonded, corrosion-proof barrier against the most aggressive elements in farm effluent, guaranteeing a service life of over 30 years.
Operational Efficiency: Low maintenance requirements and rapid, modular installation that minimize costs and downtime.
Sustainability Enablement: The secure foundation required for critical resource recovery processes like biogas production and nutrient cycling.
By choosing Center Enamel as your China Epoxy Coated Tank manufacturer, farming operations secure a resilient, cost-effective, and environmentally responsible foundation, transforming Farm Wastewater Treatment from a complex challenge into a strategic asset for a sustainable future.
