Epoxy Coated Tanks for Cassava Processing Wastewater Treatment

Cassava starch processing creates one of the most challenging industrial effluents in the food manufacturing sector. Characterized by high Chemical Oxygen Demand (COD), low pH (acidic) levels, and the production of corrosive Hydrogen Sulfide (H₂S) gas, this wastewater can compromise standard infrastructure in a matter of months.

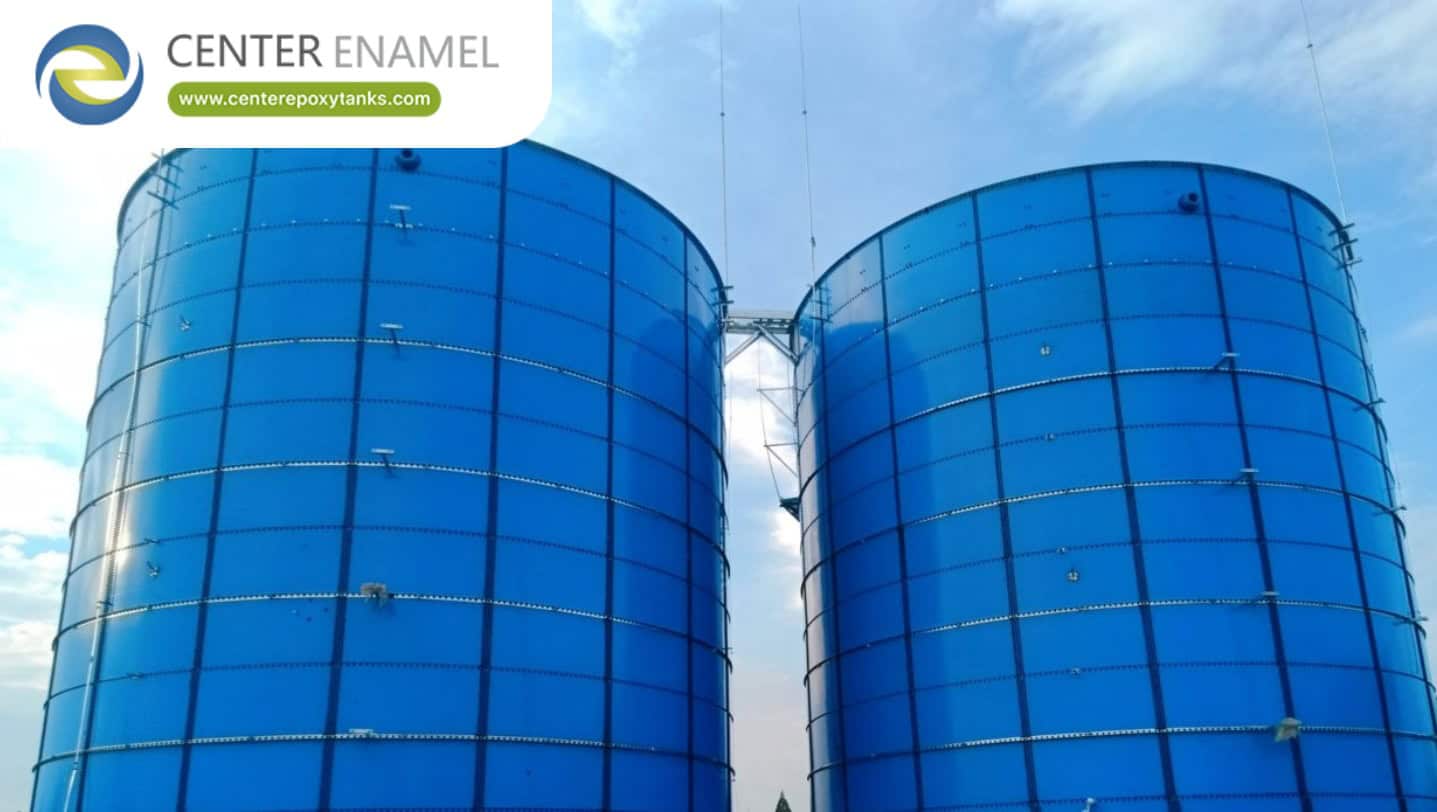

For plant operators and environmental engineers, the containment strategy is the most critical component of the wastewater treatment plant (WWTP). Factory-applied Epoxy Coated Bolted Tanks have emerged as the industry-standard infrastructure for these facilities, offering the corrosion resistance required to handle the aggressive nature of cassava effluent.

Why Standard Tanks Fail in Cassava Processing

Cassava wastewater is not "standard" industrial water; it is highly dynamic and chemically hostile. Traditional materials often fail because:

1. Concrete Degradation: Concrete is porous. When exposed to the organic acids found in cassava waste, the cement matrix softens, leading to spalling, leakage, and the corrosion of embedded steel reinforcement (rebar).

2. Field-Welded Steel Corrosion: Tanks that are welded on-site rely on field-applied paint. These coatings are often inconsistent, prone to "holidays" (microscopic pinholes), and degrade rapidly in the presence of acidic biological activity, leading to premature structural failure.

The Epoxy Advantage: Engineered for Longevity

The shift toward Fusion Bonded Epoxy (FBE) bolted tanks is driven by the need for predictable, long-term asset performance.

• Uniform Chemical Barrier: Our epoxy is electrostatically applied and heat-cured in a controlled factory environment. This creates a non-porous, cross-linked polymer barrier that is chemically inert and highly resistant to the organic acids (pH 2–13) typical of cassava effluent.

• "Holiday-Free" Quality Assurance: Every panel is subjected to rigorous high-voltage "holiday testing" before shipping. This ensures a 100% defect-free surface, removing the risk of localized corrosion that plagues field-coated tanks.

• Modular Agility: As your cassava processing capacity scales, so can your treatment capacity. The bolted design allows for rapid installation and, if necessary, future expansion of the tank volume with minimal site disruption.

Comparison: Wastewater Storage Infrastructure

Engineering Best Practices for Cassava WWTPs

When integrating epoxy-coated tanks into your cassava treatment system, consider these critical design elements:

• Equalization Tanks: Essential for buffering flow and pH fluctuations. We recommend equipping these with mechanical mixers to prevent sedimentation.

• Anaerobic Digesters: These tanks must be gas-tight. Ensure your tank manufacturer provides EPDM or Viton gaskets resistant to H₂S and methane gases.

• Access & De-sludging: High-COD wastewater inevitably produces sludge. Ensure your tank design includes large manways and proper clean-out configurations to minimize operational downtime.

Frequently Asked Questions (FAQ)

1. Why is epoxy coating better than concrete for cassava waste?

Cassava wastewater is acidic. Concrete is naturally alkaline and porous; acidic wastewater will leach the calcium from concrete, eventually causing it to crumble. Epoxy-coated steel is chemically inert, providing a permanent barrier that does not react with the effluent.

2. How does the epoxy hold up against H₂S gas?

In anaerobic digesters, H₂S is a byproduct that corrodes metal. The FBE (Fusion Bonded Epoxy) coating is a high-performance thermoset polymer designed specifically for these conditions. It provides a non-reactive barrier that shields the steel from sulfide-induced corrosion.

3. Can I expand my tank later if my processing capacity increases?

Yes. Because these tanks are bolted modular systems, you can disassemble the top rings and add additional panels to increase the height and volume of the tank, a feat that is virtually impossible with concrete or welded steel.

4. What maintenance is required for these tanks?

Maintenance is minimal—primarily visual inspections to ensure the coating remains undamaged. If the coating is mechanically scratched during operation, field-repair kits are available for easy, localized touch-ups.

5. Are these tanks suitable for biogas recovery?

Absolutely. Epoxy-coated tanks are often used as anaerobic digesters to harvest biogas from cassava wastewater. When paired with a double-membrane gas roof, they create a highly efficient, sealed system for renewable energy production.
