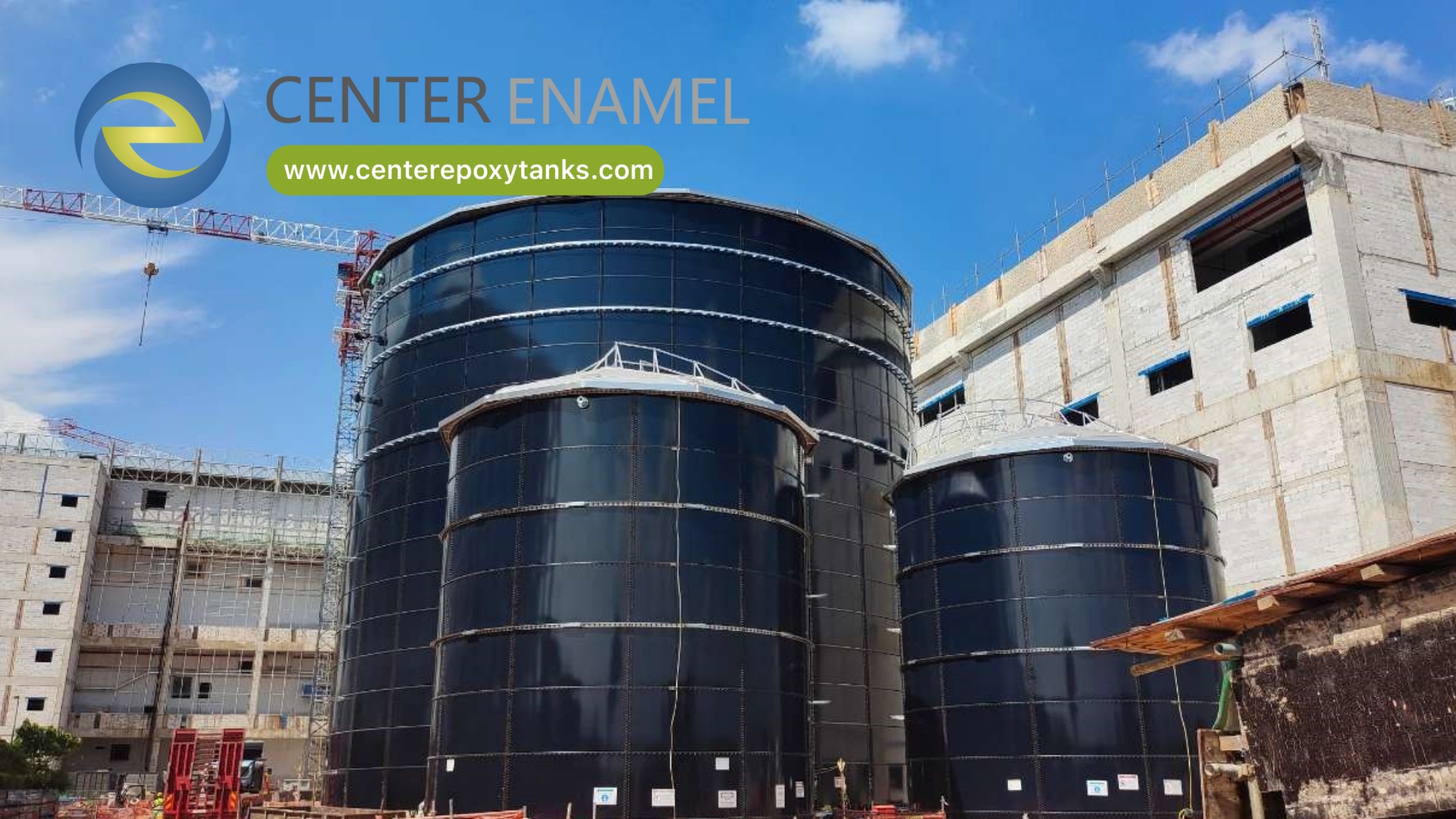

Epoxy Coated Steel Tanks for Sea Water Desalination: Engineering Guide
In the high-salinity environment of a seawater desalination plant, storage tanks face extreme corrosive challenges from both raw seawater and concentrated brine effluent. While traditional materials like concrete often suffer from chloride-induced rebar corrosion and stainless steel presents significant capital expenditure (CAPEX) hurdles, factory-applied Epoxy Coated Steel (FBE) has emerged as the definitive solution for reliable, cost-effective infrastructure. By utilizing a molecularly bonded, pinhole-free protective layer, these tanks provide the necessary chemical inertness and structural integrity required for the entire desalination process, from pre-treatment to final permeate storage.
1. The Engineering Challenge: Why Desalination Demands Specialized Coatings
Desalination plants process fluids with high chloride concentrations, which act as aggressive catalysts for metal oxidation. Standard tank coatings often fail in these environments due to:
● Osmotic Blistering: Moisture permeates through inferior coatings, causing blistering and detachment from the steel substrate.
● Chloride Ion Penetration: Brine ions seek out "holidays" (microscopic defects) in the coating, leading to localized pitting and structural compromise.
● Chemical Exposure: Beyond salinity, desalination plants utilize various pre-treatment chemicals (coagulants, antiscalants, chlorine) that require a chemically inert internal barrier.
2. Technical Performance: Fusion Bonded Epoxy (FBE)
For desalination service, standard liquid-applied paint is insufficient. The industry standard is Fusion Bonded Epoxy (FBE), which is applied in a factory-controlled environment and cured at high temperatures.
The FBE Advantage:
● Molecular Bonding: Unlike field-painted surfaces, FBE is thermally fused to the steel, creating a permanent, dense, and non-porous barrier that prevents ion migration.
● Pinhole-Free Assurance: Every panel undergoes rigorous "Holiday Testing" (spark testing) in the factory to ensure zero defects, providing a level of quality assurance impossible to achieve with field-applied coatings.
● Resistance to Brine: FBE coatings are specifically engineered to withstand high chloride concentrations and acidic brine streams, maintaining their integrity where concrete or lower-grade epoxies would degrade.
3. Comparative Matrix: Desalination Storage Solutions
Engineers must weigh initial cost against long-term maintenance cycles.
Feature | Epoxy Coated Steel (FBE) | Stainless Steel (316L) | Poured Concrete |
Corrosion Resistance | High (Inert FBE layer) | Excellent (Passive layer) | Low (Needs liner for brine) |
CAPEX | Low to Moderate | High | Moderate |
Construction Time | Rapid (Modular/Bolted) | Slow (Welding required) | Very Slow (Curing time) |
Maintenance | Low (No recoating) | Minimal | High (Cracks/Liner repair) |
Scalability | High (Modular panels) | Low | Nearly Impossible |
4. Key Standards for Desalination Infrastructure
To ensure project compliance and safety, storage tanks must be designed and certified according to global standards:
● AWWA D103-09: The benchmark for factory-coated bolted steel tanks, governing the structural integrity and foundation requirements.
● NSF/ANSI 61: Mandatory for tanks storing final permeate (drinking water), ensuring the coating is non-leaching and safe for human consumption.
● ISO 28765: Governs the quality and qualification of vitreous enamel and epoxy coatings in industrial environments.
5. Frequently Asked Questions (FAQ)
Q: Can epoxy-coated tanks handle highly concentrated brine?
Yes, provided the FBE coating is specified correctly. While standard epoxies are for water, "Glass Flake Epoxy" or high-performance FBE formulations are engineered specifically for the extreme chemical demands of brine effluent and chemical processing.
Q: How do bolted tank seams affect corrosion resistance in seawater?
Modern bolted tanks use specialized, chemically-resistant gaskets and high-grade sealants at the panel joints. These sealants are formulated to remain flexible under pressure and resist degradation from chloride ions, ensuring the entire vessel remains leak-proof.
Q: Why not use concrete?
Concrete is porous. In saline environments, chloride ions penetrate the concrete, attacking the steel rebar inside. This causes the steel to expand, leading to "concrete cancer" (spalling), which is nearly impossible to repair without replacing the structure.
Engineering Consultation for Desalination Projects
Selecting the right storage technology is a critical decision that influences the total cost of ownership of your desalination plant. Whether you require raw seawater pre-treatment storage or final product water containment, we provide the engineering expertise and technical documentation to ensure your infrastructure is built for long-term performance.
[Request a Technical Feasibility Study]
Our team provides full design reviews, material compatibility reports, and structural integration plans to help you select the optimal tank solution for your desalination facility.
