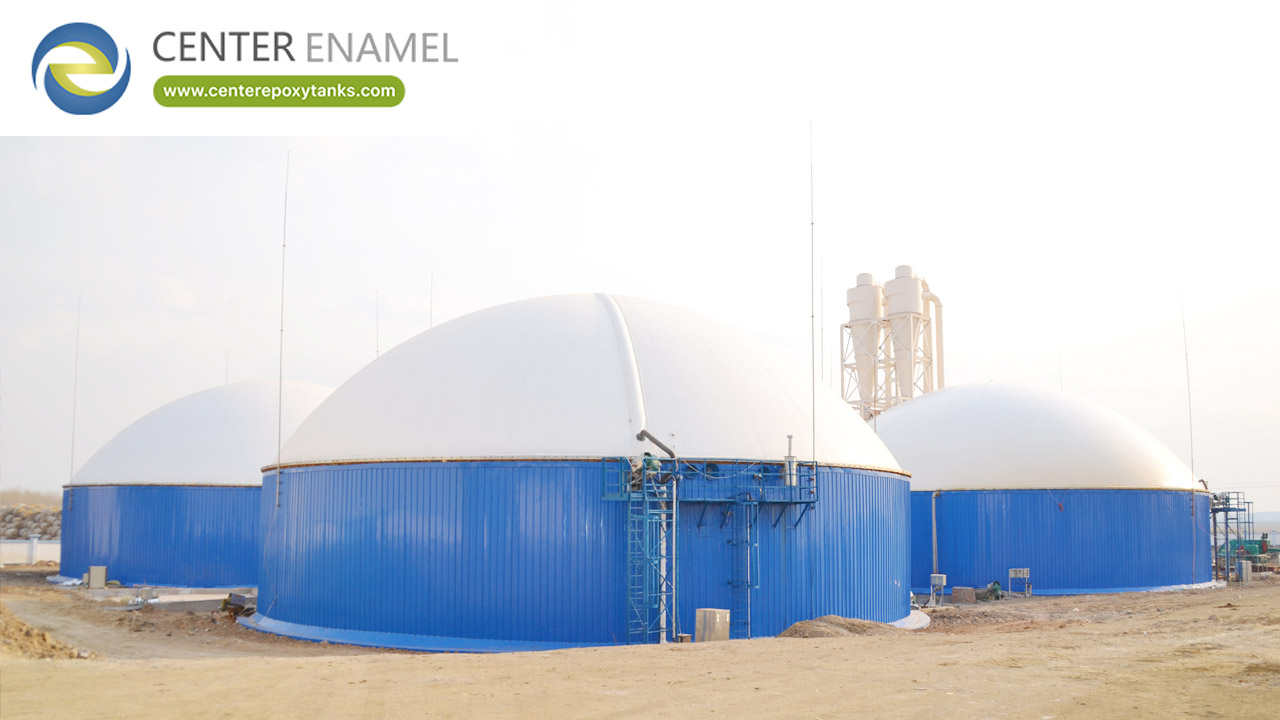

China’s Leading Double Membrane Roof Manufacturer: Advanced Biogas Storage Solutions
As the global demand for sustainable energy accelerates, selecting a high-efficiency containment system is critical for project success. Center Enamel stands as a premier global provider, specializing in the engineering and fabrication of air-supported structures for the renewable energy and wastewater sectors.
Our Double Membrane Roofs are not merely covers; they are sophisticated gas holder systems designed for the modern biogas digester, providing exceptional gas-tightness, durability, and resilience under extreme environmental conditions.
Technical Specification: Membrane Material Properties
This high-density data represents the structural benchmarks required for professional engineering specifications.
Feature | Technical Specification |
Base Fabric Type | High-tenacity Polyester (PES) |
Coating Material | Dual-sided PVC with PVDF Top-Coat (UV-Stabilized) |
Operating Pressure | 0 to 50 mbar (Customizable per project) |
Gas Permeability (Methane) | < 400 cm³/m²·d·bar (Per DIN 53380-2) |
Temperature Resistance | -30°C to +70°C |
Fire Resistance Class | DIN 4102 B1 / M2 / NFPA 701 (Self-Extinguishing) |
Lifespan Design | 15 to 20 Years |
System Architecture: The Integrated Gas Holder
Our double membrane roof operates as a cohesive methane storage unit, balancing gas production with consumption via a pressurized dual-layer design.
● Outer Membrane: Acts as the protective shell, maintained at a constant pressure by an explosion-proof blower. It is engineered to withstand wind and snow loads while shielding the system from UV degradation.
● Inner Membrane: The functional "storage bag" that expands or contracts based on the gas volume within the biogas digester. Crafted from chemical-resistant materials, it ensures a 100% gastight seal.
● Pressure Regulation System: Utilizing ultrasonic level sensors and ATEX-certified blowers, the system maintains the ideal air cushion to ensure structural stability and precise gas flow to CHP engines.
The "Why" Behind the Engineering
High-Frequency (HF) Welding for Zero Leakage
While others use hot-air welding, Center Enamel utilizes High-Frequency (HF) Welding. This process uses electromagnetic energy to fuse the PVC molecules, creating a molecular bond stronger than the material itself. This is critical for preventing methane leakage at the seams—the most vulnerable points in any gas holder.
PVDF Coating & Chemical Shielding
The inner membrane is in constant contact with corrosive H2S. Our specialized PVDF top-coat acts as a chemical barrier, preventing plasticizer migration and embrittlement. This keeps the membrane flexible for over 15 years, even in harsh biogas environments.
Maximizing ROI via Low Permeability
By achieving a permeability rate of < 400 cm³/m²·d·bar, we minimize "micro-leakage." For industrial-scale plants, this ensures that every cubic meter of methane is captured for energy production, significantly increasing the facility's return on investment.
Certified Global Compliance
To ensure the safety of critical energy infrastructure, our manufacturing and material selection strictly adhere to international standards:
1. Quality Management: Our facility is ISO 9001:2015 audited for repeatable fabrication excellence.
2. Fire Safety: Membranes are certified DIN 4102 B1 and NFPA 701, ensuring they are self-extinguishing in the event of external ignition.
3. Pressure Design: Principles align with AD 2000-Merkblatt for pressurized storage reliability.
Proven Global Project Cases
● Thailand Cassava Biogas Project: 3 units of high-capacity gas storage supporting industrial waste-to-energy recovery.
● Shandong Livestock Wastewater Project: 2 units managing high-volume biogas from agricultural anaerobic digestion.
Frequently Asked Questions
Q: How do double membrane roofs handle snow and wind loads?
A: Stability is maintained via the internal air cushion. The explosion-proof blower keeps the outer membrane taut, allowing it to shed snow and resist wind deflection. We use site-specific seismic and wind-load calculations to adjust air-support pressure.
Q: What is the difference between a double membrane roof and a single membrane cover?
A: A single membrane is primarily for odor control. A double membrane acts as a variable-volume gas holder, providing regulated gas pressure to the CHP engine, which maximizes energy efficiency.
Q: Is maintenance difficult for these systems?
A: Maintenance is minimal. It typically involves annual visual inspections of the membrane and routine testing of the blower and pressure-relief valves to ensure the pressure regulation system is calibrated.
Your Partner in Sustainable Energy Storage
Center Enamel combines over 30 years of experience with advanced HF welding technology to deliver the world's most reliable biogas storage solutions. Whether integrated with our Epoxy Coated Tanks or Glass-Fused-to-Steel systems, our roofs offer uncompromised safety and efficiency.
Would you like a technical drawing or a methane permeability report for your specific project dimensions?
