In an era increasingly defined by the urgent need for sustainable energy solutions and effective waste management, biogas technology stands out as a powerful answer. Around the globe, nations are recognizing the immense potential of converting organic waste into a valuable renewable resource. Malaysia, with its rich agricultural landscape and commitment to environmental stewardship, is at the forefront of this green revolution. In 2022, Center Enamel played a pivotal role in strengthening Malaysia's renewable energy infrastructure by delivering and successfully overseeing the installation of five state-of-the-art Biogas Digestion Tanks for this transformative project. Each of these high-capacity tanks measures ϕ24.46m in diameter and 12m in height, collectively providing a substantial storage volume of 5×5415m3, totaling an impressive 27075m3. This significant capacity underscores the scale of the waste management and energy generation capabilities now established. Complementing these robust tanks, Center Enamel also supplied highly specialized Double Membrane Roofs, meticulously chosen for their efficiency in biogas collection, storage, and pressure regulation. This comprehensive solution significantly enhances the project's ability to convert organic waste into clean energy, reduce greenhouse gas emissions, and promote a circular economy within Malaysia. Center Enamel's involvement in the Malaysia Biogas Project further solidifies our position as a global leader in providing high-performance, bolted tank solutions that empower sustainable energy development worldwide.
Anaerobic digestion (AD) is a naturally occurring biological process in which microorganisms break down organic matter in the absence of oxygen. This remarkable process yields two primary products: a methane-rich gas called biogas, and a nutrient-rich solid and liquid residue known as digestate. Biogas serves as a versatile renewable energy source, capable of being used directly for heat, electricity generation, or upgraded to biomethane for vehicle fuel or injection into natural gas grids.
The benefits of anaerobic digestion are multi-faceted and profoundly impactful on sustainable development:
· Renewable Energy Production: At its core, AD generates biogas, a potent source of renewable energy. This reduces reliance on fossil fuels, contributes to energy independence, and helps stabilize energy costs.
· Greenhouse Gas Reduction: Organic waste decaying in landfills or open pits releases methane, a potent greenhouse gas (far more impactful than CO2 in the short term). AD captures this methane, converting it into a usable energy source and preventing its atmospheric release, thereby directly contributing to climate change mitigation.
· Nutrient Recycling and Biofertilizer Production: The digestate byproduct from AD is a highly effective biofertilizer, rich in essential plant nutrients (nitrogen, phosphorus, potassium). Its use can reduce the need for synthetic chemical fertilizers, improving soil health, reducing water pollution, and fostering more sustainable agricultural practices.
· Odor Control and Improved Sanitation: By containing and processing organic waste, AD systems effectively manage odors and reduce pathogen loads, leading to improved sanitation and public health, especially in agricultural and industrial settings.
· Economic Advantages: Biogas projects can create new revenue streams from energy sales, carbon credits, and fertilizer production. They also reduce waste disposal costs for businesses and communities.
The digester tanks are the central components of any anaerobic digestion facility, serving as the enclosed bioreactors where the complex biological process unfolds. The performance, longevity, and safety of the entire biogas plant critically depend on the quality and design of these tanks. For the challenging environment of anaerobic digestion, Biogas Digestion Tanks must meet exceptionally stringent requirements:
· Airtightness/Gas Tightness: This is paramount. Biogas, primarily methane, is a flammable and explosive gas when mixed with air. The tanks must be absolutely gas-tight to prevent dangerous gas leaks, ensure process efficiency by preventing oxygen ingress (which inhibits anaerobic bacteria), and maximize biogas capture for energy generation.
· Corrosion Resistance: The internal environment of an AD tank is notoriously corrosive. Hydrogen sulfide (H2S), volatile fatty acids, ammonia, and fluctuating pH levels can rapidly degrade conventional steel or concrete structures. A robust, long-lasting corrosion barrier is essential for tank longevity and to prevent costly failures.
· Durability & Longevity: Biogas plants represent significant capital investments designed for decades of operation. The tanks must withstand continuous hydrostatic pressure, internal mixing forces, and external environmental loads (wind, seismic activity)
· Material Compatibility: The tank material must be inert and non-reactive with the diverse organic substrates and chemical byproducts within the digester, ensuring no leaching of harmful substances into the digestate or interference with the biological process.
· Integration with Mixing Systems: Effective mixing within the digester is crucial for preventing stratification, ensuring uniform substrate distribution, and maximizing contact between microorganisms and organic matter. Tank design must accommodate various mixing technologies (e.g., mechanical agitators, gas recirculation).
The selection of tank material for a biogas project is critical and depends on various factors, including the specific waste stream, operational temperature, budget, and desired lifespan. While the Malaysia Biogas Project utilizes Glass-Fused-to-Steel (GFS) tanks, Center Enamel, as a versatile bolted tank manufacturer, offers several types of tanks that can be effectively employed in biogas applications, each with distinct advantages:
· Glass-Fused-to-Steel (GFS) Tanks: These are often considered the premier choice for Biogas Digestion Tanks, and are the type supplied for the Malaysia Biogas Project. GFS tanks feature steel panels with a two-to-three-layer vitreous enamel (glass) coating fused at high temperature. This creates an incredibly hard, inert, and impermeable barrier that offers superior resistance to the highly corrosive internal environment of biogas digesters, including hydrogen sulfide (H2S), acids, and alkalis. Their smooth, non-porous surface also inhibits the adhesion of biofilm, facilitating cleaning and optimizing the digestion process.
· Fusion Bonded Epoxy (FBE) Tanks: FBE tanks are a robust and cost-effective alternative for certain biogas applications. They feature a factory-applied fusion bonded epoxy coating that provides excellent corrosion resistance against a wide range of chemicals and environmental factors. While not as inert as GFS, FBE tanks offer good chemical compatibility and are suitable for many AD processes, especially where initial investment costs are a primary consideration. Their bolted construction also allows for efficient and quick installation.
· Stainless Steel Tanks: For applications requiring the highest level of purity, extreme corrosion resistance to very specific or aggressive media, or when frequent sterilization is needed, Stainless Steel Tanks can be used as biogas components. Different grades of stainless steel (e.g., 304, 316) offer varying levels of resistance to specific corrosive agents found in biogas. While generally a higher capital investment, their inherent resistance and non-reactive properties ensure long-term integrity, especially in pre-treatment or digestate storage phases that might require specific material characteristics.
· Galvanized Steel Tanks: While less common for the primary digester due to the highly corrosive internal environment, Galvanized Steel Tanks can be used for ancillary components in a biogas plant, such as water storage, initial substrate receiving tanks, or even for digestate storage after significant H2S removal. Their zinc coating provides good external corrosion resistance for outdoor applications.
While the tank structure provides the containment for the digestion process, the roof plays an equally critical, dynamic role in a biogas plant: it is the system that collects, stores, and regulates the pressure of the produced biogas. For the Malaysia Biogas Project, Center Enamel supplied advanced Double Membrane Roofs to integrate seamlessly with the GFS tanks.
A Double Membrane Roof typically consists of two layers of high-strength, specially coated technical fabric (membranes) forming a flexible, inflatable dome. The outer membrane defines the fixed external shape, while the inner membrane expands and contracts to accommodate the volume of biogas stored. An air blower unit maintains constant pressure in the space between the two membranes, providing structural stability and applying gentle, consistent pressure to the inner membrane.
The advantages of Double Membrane Roofs for biogas applications are compelling:
· Safety Features: Double membrane roofs incorporate safety systems for over-pressure and under-pressure protection, preventing damage to the tank or hazardous conditions.
· Thermal Insulation: The air cushion between the two membranes provides a layer of thermal insulation, helping to maintain the desired temperature within the digester, which further optimizes the anaerobic digestion process.
· Visual Volume Indication: Operators can visually gauge the volume of stored biogas by observing the expansion of the inner membrane, aiding in process monitoring and management.
· Lightweight Design: Double membrane roofs are significantly lighter than conventional rigid roofs, imposing minimal additional load on the digester tank structure and foundation, simplifying overall engineering.
· Ease of Installation and Maintenance: Being modular and prefabricated, these roofs can be installed relatively quickly. Their durable material and flexible nature also lead to lower maintenance requirements compared to steel roofs that might need painting or extensive repairs.
Center Enamel's expertise in bolted tank solutions extends naturally to the precise design and integration of these sophisticated Double Membrane Roofs, ensuring a perfectly sealed and highly efficient biogas containment system for the Malaysia Biogas Project.
Center Enamel has consistently pioneered advancements in storage technology. We are recognized as the most experienced professional bolted tanks and covering manufacturer in Asia, a testament to our continuous innovation, dedicated professional enameling R&D team, and substantial patent portfolio in advanced tank construction and coating technologies. Our comprehensive product portfolio includes not only the specialized GFS tanks used for Biogas Digestion Tanks but also Fusion Bonded Epoxy Tanks, stainless steel tanks, and galvanized steel tanks for a wide array of industrial, municipal, and agricultural applications. Our expertise also covers various high-performance roof solutions, including the Double Membrane Roofs supplied for the Malaysia Biogas Project, as well as aluminum geodesic dome roofs and internal/external floating roofs.
Center Enamel's commitment to quality is ingrained in every stage of our manufacturing process. We adhere to the most stringent international standards, which is paramount for critical infrastructure like biogas plants. Our comprehensive certifications, including ISO9001 for quality management, EN1090 for the execution of steel structures (critical for tank fabrication), ISO28765 for vitreous and porcelain enamels, FM Global approvals (for fire protection, often relevant for industrial sites), LFGB, BSCI, and ISO 45001, provide undeniable verification of our manufacturing excellence, safety standards, and product reliability.
Our global footprint, with successful exports to over 100 countries, testifies to our international reputation for exceptional quality and consistently reliable service. The Malaysia Biogas Project is another powerful testament to Center Enamel's capability to deliver complex, high-capacity, and critically important storage solutions in diverse environments, cementing our role as a trusted partner for industries, communities, and governments seeking to implement sustainable energy and waste management solutions globally. We pride ourselves on fostering enduring partnerships by providing tailored, high-integrity solutions that meet the specific and evolving needs of our clients.

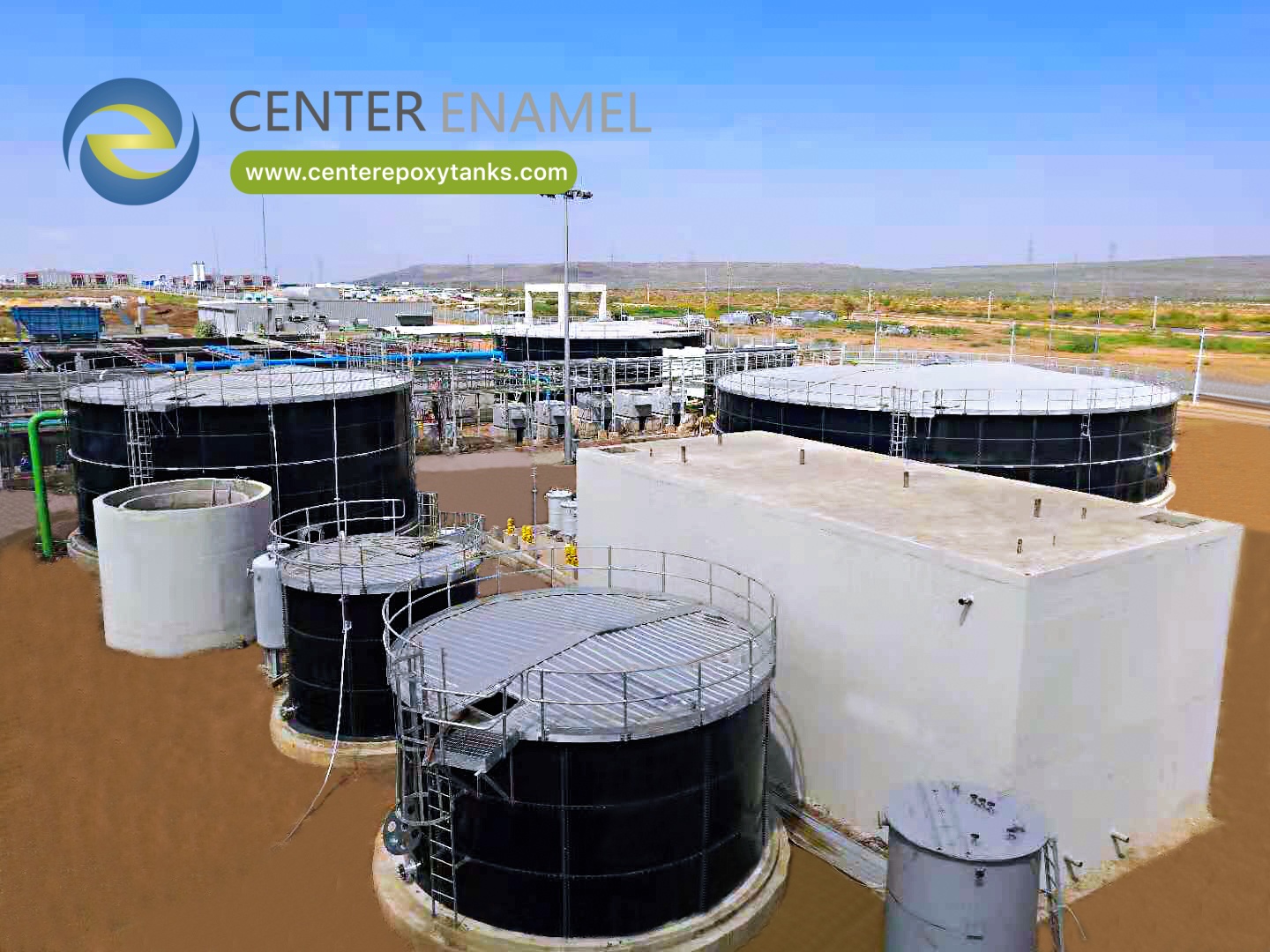

The Malaysia Biogas Project stands as a powerful testament to the transformative impact of modern, resilient Biogas Digestion Tanks on national energy independence, environmental protection, and agricultural sustainability. By providing five state-of-the-art Biogas Digestion Tanks with advanced Double Membrane Roofs, Center Enamel has directly contributed to harnessing the vast potential of organic waste in Malaysia, converting it into valuable renewable energy and nutrient-rich digestate.
These tanks exemplify how advanced bolted tank technology, backed by Center Enamel's extensive expertise as a GFS pioneer and comprehensive certifications, surpasses the limitations of traditional, less durable solutions. They offer superior corrosion resistance, structural integrity, rapid installation, and minimal long-term maintenance, ensuring continuous, safe, and efficient biogas production. For communities and industries worldwide committed to embracing renewable energy, mitigating climate change, and implementing effective waste-to-energy solutions, Center Enamel stands ready. Trust us to provide the robust, safe, and expertly engineered storage infrastructure that forms the ultimate foundation for sustainable growth and energy independence. Contact us today to explore how our tailored solutions can elevate your biogas and renewable energy strategy.
